Chest Valves

Valve chests are, at their core, multi-port control bodies—either cast as a single block or assembled as compact manifolds—that house multiple valves within one unit. Their purpose is to manage, distribute, or redirect flow in complex systems such as marine engines, hydraulic machinery, and steam plant. By bringing several flow paths into a single assembly, valve chests simplify pipework, reduce installation space, and provide centralised control over critical circuits.

Key Features

Key benefits of Chest Valves.
1

Key Features

Valve chests consolidate multiple flow paths into a single, space-saving unit. This reduces pipework complexity while providing centralised control over critical systems.
2

Key Features

Manufactured from robust materials such as ductile iron or steel, valve chests are built to withstand high pressure, vibration, and harsh environments. This ensures long service life in demanding industrial and marine applications.
3

Key Features

Valve chests can be manually operated or fitted with pneumatic and electric actuators for remote control. This allows systems to be automated, improving response times and operational efficiency.

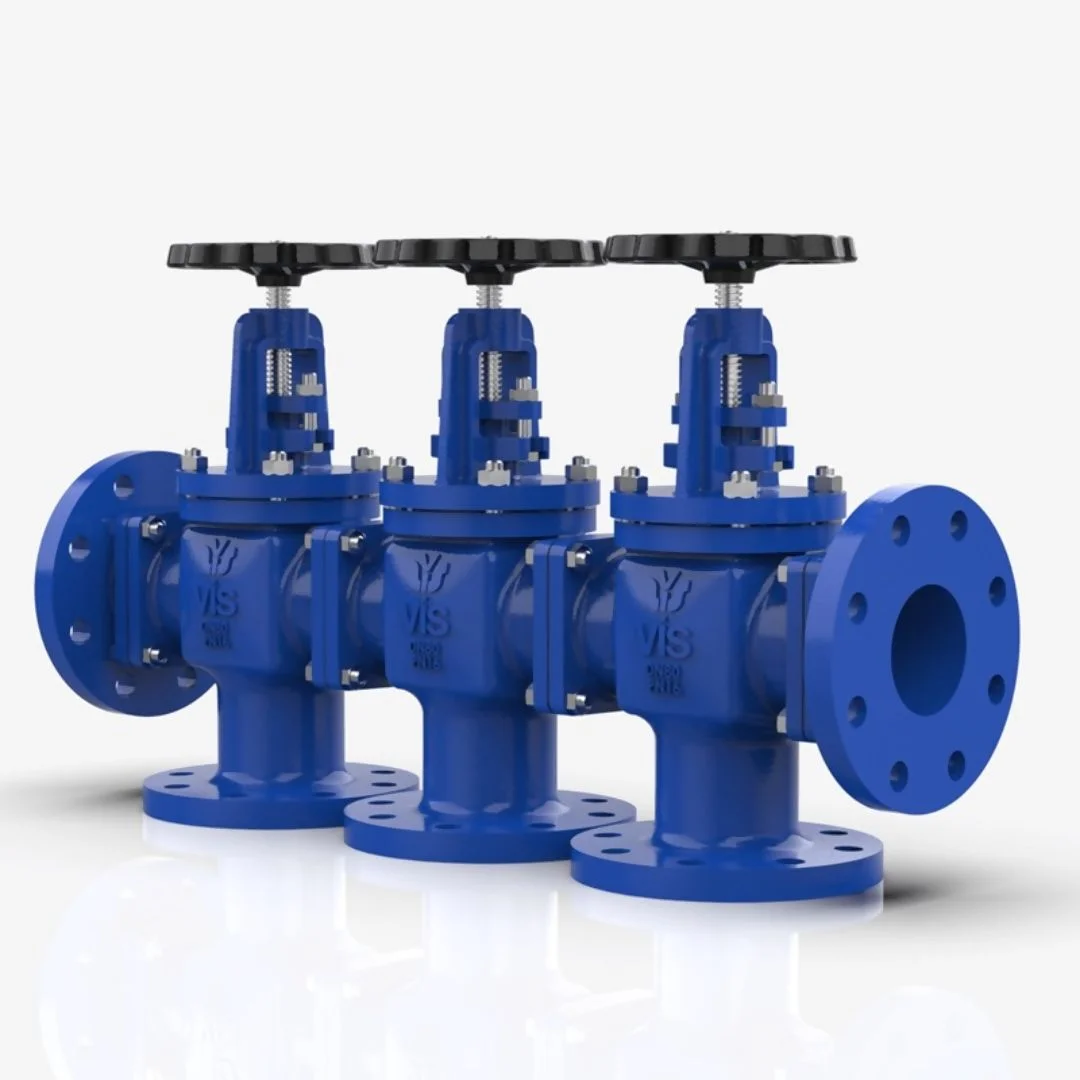

Valve Chest Stop & SDNR Modular Type (Cell Type)

The Valve Chest Stop & SDNR Modular Type (Cell Type) is designed for robust, centralised flow control within marine and industrial valve chests. Each cell functions as an individual stop or screw-down non-return (SDNR) valve, allowing multiple circuits to be isolated, protected, or directed from a single modular assembly. This design enables engineers to build compact, highly organised valve chests where every line can be controlled independently, improving both safety and operational clarity in complex systems such as bilge, ballast, fuel, and cooling networks.

Pressure Rating: PN16
Size Range: DN40-DN250
Flange Ends: DIN EN 1092
Dimensions: DIN HNA-PN16
Get in touch

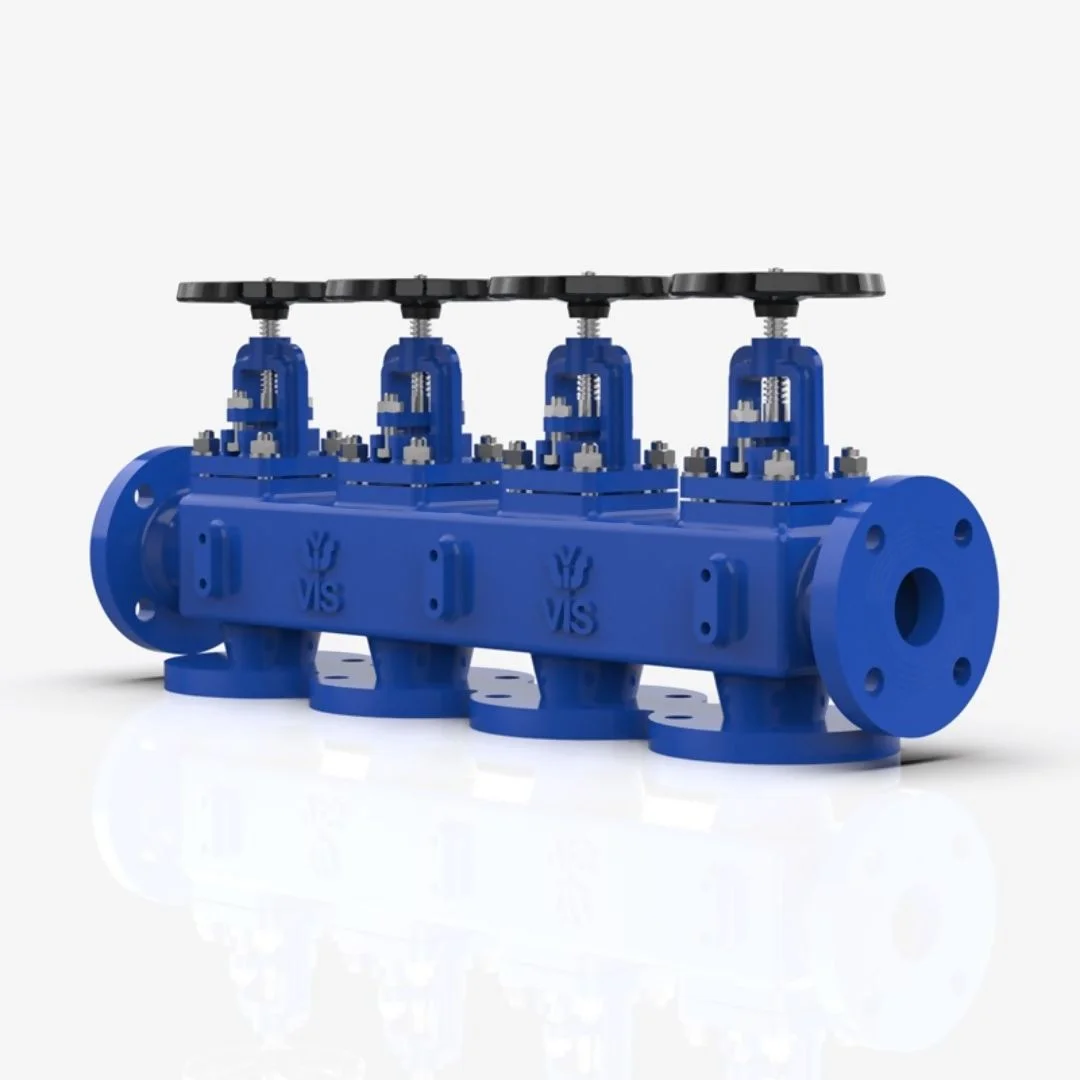

Valve Chest Stop & SDNR Monoblock Type

The Valve Chest Stop & SDNR Monoblock Type is engineered as a single, integrated casting that combines multiple stop and screw-down non-return (SDNR) functions into one solid body. Unlike modular cell designs, the monoblock construction forms a unified valve chest where each flow path is built directly into the casting. This creates an exceptionally rigid and compact assembly, ideal for installations where space is limited and long-term structural integrity is essential. In marine and industrial systems, this design provides clear, centralised control over multiple services such as bilge, ballast, fuel, and cooling lines, allowing operators to isolate and protect each circuit from a single location.

Pressure Rating: PN16
Size Range: DN40-DN250
Flange Ends: DIN EN 1092
Dimensions: DIN HNA-PN16
Get in touch

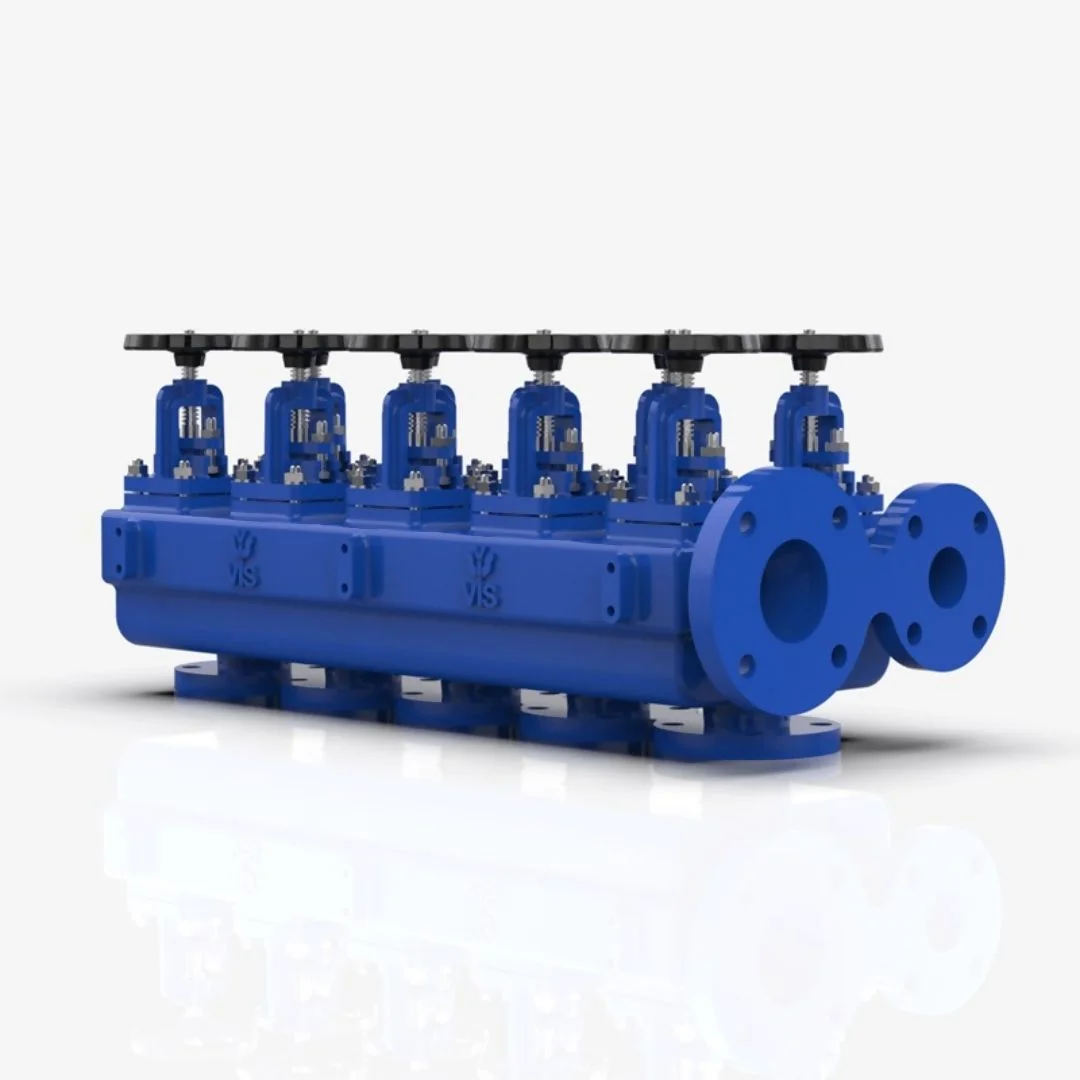

Valve Chest Stop & SDNR Customized Type

The Valve Chest Stop & SDNR Customised Type is engineered to meet exact project requirements, offering complete flexibility in layout, port configuration, and function. Unlike standard modular or monoblock designs, this version is built around the specific needs of the application—whether that involves unusual pipe spacing, mixed service lines, restricted installation space, or bespoke flow paths. Each stop and screw-down non-return (SDNR) valve is positioned to suit the system, allowing engineers to create a valve chest that integrates seamlessly into complex marine or industrial installations. This makes it ideal for specialist vessels, retrofits, and unique process systems where off-the-shelf solutions simply won’t fit.

Pressure Rating: PN16
Size Range: DN40-DN250
Flange Ends: DIN EN 1092
Dimensions: DIN HNA-PN16
Get in touch

How do they work?

Valve chests work by bringing multiple flow paths into a single, centralised body, allowing an operator or control system to manage several pipelines from one location. Each port within the chest connects to an individual valve, and each valve controls whether fluid can pass, be isolated, or be redirected. In marine and industrial systems, this allows seawater, fuel, steam, or process media to be routed between tanks, pumps, heat exchangers, and equipment without the need for complex external pipework. By turning a handwheel or actuating a valve remotely, flow can be opened, closed, or diverted instantly, giving precise control over how a system behaves.

In more advanced installations, valve chests are fitted with pneumatic or electric actuators, enabling automated or remote operation. This allows multiple circuits to be managed from a single control panel or even integrated into a wider control system. For example, a change-over valve chest can redirect flow from one tank to another with a single command, while non-return configurations prevent backflow in critical lines such as bilge or suction systems. The result is a compact, efficient control hub that reduces installation space, improves safety, and ensures reliable, repeatable flow management across complex networks.

Where would you find them?

Valve chests are most commonly found in environments where multiple fluid lines must be managed from a single, central point. In marine engineering, they are a core component of ship systems, used to control seawater intake, ballast tanks, bilge systems, fuel oil transfer, and cooling circuits. Engine rooms often rely on valve chests to route flow between pumps, tanks, and heat exchangers without the need for sprawling pipework. This centralisation improves safety, simplifies operation, and allows crews to isolate or redirect services quickly in both routine operation and emergency situations.

Beyond maritime use, valve chests are also found in industrial plants, power stations, hydraulic machinery, and specialist mechanical systems. They appear wherever space is limited and flow paths must be tightly controlled—such as in steam distribution networks, high-pressure process lines, agricultural machinery, and bespoke equipment. In these settings, a valve chest acts as the control hub of the system, allowing multiple circuits to be switched, isolated, or protected from backflow in a compact footprint. Their ability to simplify complex piping layouts while maintaining absolute control makes them invaluable in any environment where reliability, clarity, and efficient flow management are critical.

The Control Centre of Your System

Valve chests bring order to complexity, turning tangled pipe networks into a single, organised point of control. By housing multiple valves in one compact assembly, they allow operators to isolate, redirect, and protect critical flow paths instantly—whether in an engine room, plant floor, or process system. Built for strength and clarity, valve chests don’t just manage flow; they define how safely and efficiently an entire system operates.

Frequently Asked Questions

A valve chest is a single body or manifold that houses multiple valves in one compact unit. It allows several pipelines to be isolated, redirected, or protected from one central location.

They are most commonly found in marine engine rooms, power plants, steam systems, hydraulic machinery, and industrial process plants where multiple flow paths must be controlled.

A modular (cell type) valve chest is built from individual valve cells assembled together, offering flexibility. A monoblock valve chest is cast as a single solid body, providing maximum rigidity and a compact footprint.

SDNR stands for Screw Down Non-Return. These valves allow flow in one direction and prevent backflow while also providing positive shut-off.

They reduce pipework complexity, save space, and centralise control. This improves safety, simplifies operation, and makes systems easier to maintain.

Yes. Valve chests can be fitted with pneumatic or electric actuators, allowing remote or fully automated control from a panel or control system.

They are commonly manufactured from grey cast iron, ductile iron, or cast steel, with stainless steel or bronze internal components for durability and corrosion resistance.

Yes. When correctly specified, valve chests are designed to handle high pressures and demanding operating conditions in marine and industrial environments.

Customised valve chests can be built to suit specific layouts, pipe centres, flow paths, and service requirements, making them ideal for retrofits and specialist projects.

Common connections include bilge lines, ballast systems, cooling water, fuel oil, steam, condensate, and hydraulic circuits.

Maintenance involves periodic inspection of seats, packing, and spindles. Modular designs allow individual cells to be serviced without removing the entire assembly.

They provide fast, clear control over essential services. In emergency situations, they allow operators to isolate or redirect flow immediately, protecting both equipment and vessel safety.
