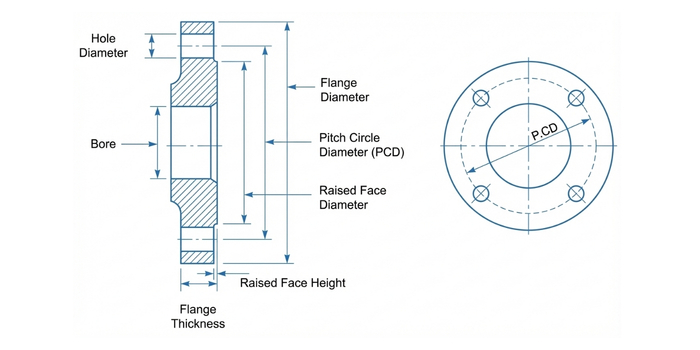

Flange Dimensions & Gasket Chart
This flange and gasket reference table has been created to give engineers, specifiers, and maintenance teams a clear, practical guide to common flange standards across the most widely used pressure classes. Rather than separating data by valve size into multiple charts, this single master table allows you to compare ANSI, BS10, and BS4504 flange patterns in one place.
By using the “Valve Size” column, the same structure can be extended from 1/2" / DN15 right through to 24" / DN600, making it easy to scale this reference for any project – from small bore process lines to large diameter transmission systems. Each row details flange diameter, pitch circle diameter (PCD), bolt quantity and size, along with typical gasket thicknesses for cast iron, copper alloy, and steel applications.
This format is designed to reduce errors during specification, ordering, and maintenance, ensuring compatibility between valves, pipework, and gaskets across mixed-standard installations.
Sizes:
DN15 – 1/2" | DN20 – 3/4" | DN25 – 1" | DN32 – 1¼" | DN40 – 1½" | DN50 – 2" | DN65 – 2½" | DN80 – 3" | DN100 – 4" | DN125 – 5" | DN150 – 6" | DN200 – 8" | DN250 – 10" | DN300 – 12" | DN400 – 16" | DN450 – 18" | DN500 – 20" | DN600 – 24"
DN15 - 0.5"
| Valve Size | Class | Flange Diameter | PCD | No. of Bolts | Bolt Size | Thickness Cast Iron | Thickness Copper Alloy | Thickness Steel |
|---|
| 1/2" / DN15 |
ANSI 125/150 |
3 1/2" / 89mm |
2 3/8" / 60mm |
4 |
1/2" |
|
5/16" / 8mm |
7/16" / 8mm |
| 1/2" / DN15 |
ANSI 300 |
3 3/4" / 95mm |
2 5/8" / 67mm |
4 |
1/2" |
|
1/2" / 13mm |
1/2" / 13mm |
| 1/2" / DN15 |
ANSI 600 |
3 3/4" / 95mm |
2 5/8" / 67mm |
4 |
1/2" |
|
|
9/16" / 14mm |
| 1/2" / DN15 |
ANSI 900 |
4 3/4" / 121mm |
3 1/4" / 83mm |
4 |
3/4" |
|
|
7/8" / 22mm |
| 1/2" / DN15 |
ANSI 1500 |
4 3/4" / 121mm |
3 1/4" / 83mm |
4 |
3/4" |
|
|
7/8" / 22mm |
| 1/2" / DN15 |
ANSI 2500 |
5 1/4" / 133mm |
3 1/2" / 89mm |
4 |
3/4" |
|
|
1 1/8" / 30mm |
| 1/2" / DN15 |
BS10 Table D |
3 3/4" / 95mm |
2 5/8" / 67mm |
4 |
1/2" |
1/2" / 13mm |
1/4" / 6mm |
3/8" / 10mm |
| 1/2" / DN15 |
BS10 Table E |
3 3/4" / 95mm |
2 5/8" / 67mm |
4 |
1/2" |
1/2" / 13mm |
1/4" / 6mm |
3/8" / 10mm |
| 1/2" / DN15 |
BS10 Table F |
3 3/4" / 95mm |
2 5/8" / 67mm |
4 |
1/2" |
1/2" / 13mm |
5/16" / 8mm |
3/8" / 10mm |
| 1/2" / DN15 |
BS10 Table H |
4 1/2" / 114mm |
3 1/4" / 83mm |
4 |
5/8" |
5/8" / 16mm |
3/8" / 10mm |
1/2" / 13mm |
| 1/2" / DN15 |
BS10 Table J |
4 1/2" / 114mm |
3 1/4" / 83mm |
4 |
5/8" |
|
5/8" / 16mm |
5/8" / 16mm |
| 1/2" / DN15 |
BS10 Table K |
4 1/2" / 114mm |
3 1/4" / 83mm |
4 |
5/8" |
|
3/4" / 19mm |
3/4" / 19mm |
| 1/2" / DN15 |
BS4504-PN6 |
80mm |
55mm |
4 |
M10 |
12mm |
|
|
| 1/2" / DN15 |
BS4504-PN10 |
95mm |
65mm |
4 |
M12 |
14mm |
|
|
| 1/2" / DN15 |
BS4504-PN16 |
95mm |
65mm |
4 |
M12 |
14mm |
|
|
| 1/2" / DN15 |
BS4504-PN25 |
95mm |
65mm |
4 |
M12 |
16mm |
8mm |
16mm |
| 1/2" / DN15 |
BS4504-PN40 |
95mm |
65mm |
4 |
M12 |
|
9mm |
16mm |
| 1/2" / DN15 |
BS4504-PN64 |
105mm |
75mm |
4 |
M12 |
|
|
20mm |
| 1/2" / DN15 |
BS4504-PN100 |
105mm |
75mm |
4 |
M12 |
|
|
20mm |
Back to top
DN20 - 0.75"
| Valve Size | Class | Flange Diameter | PCD | No. of Bolts | Bolt Size | Thickness Cast Iron | Thickness Copper Alloy | Thickness Steel |
|---|
| 3/4" / DN20 |
ANSI 125/150 |
3 7/8" / 98mm |
2 3/4" / 70mm |
4 |
1/2" |
|
11/32" / 9mm |
9/16" / 14mm |
| 3/4" / DN20 |
ANSI 300 |
4 5/8" / 117mm |
3 1/4" / 83mm |
4 |
5/8" |
|
17/32" / 13mm |
5/8" / 16mm |
| 3/4" / DN20 |
ANSI 600 |
4 5/8" / 117mm |
3 1/4" / 83mm |
4 |
5/8" |
|
|
5/8" / 16mm |
| 3/4" / DN20 |
ANSI 900 |
5 1/8" / 130mm |
3 1/2" / 89mm |
4 |
3/4" |
|
|
1" / 25mm |
| 3/4" / DN20 |
ANSI 1500 |
5 1/8" / 130mm |
3 1/2" / 89mm |
4 |
3/4" |
|
|
1" / 25mm |
| 3/4" / DN20 |
ANSI 2500 |
5 1/2" / 140mm |
3 3/4" / 95mm |
4 |
3/4" |
|
|
1 1/4" / 32mm |
| 3/4" / DN20 |
BS10 Table D |
4" / 102mm |
2 7/8" / 73mm |
4 |
1/2" |
1/2" / 13mm |
1/4" / 6mm |
3/8" / 10mm |
| 3/4" / DN20 |
BS10 Table E |
4" / 102mm |
2 7/8" / 73mm |
4 |
1/2" |
1/2" / 13mm |
1/4" / 6mm |
3/8" / 10mm |
| 3/4" / DN20 |
BS10 Table F |
4" / 102mm |
2 7/8" / 73mm |
4 |
1/2" |
1/2" / 13mm |
5/16" / 8mm |
3/8" / 10mm |
| 3/4" / DN20 |
BS10 Table H |
4 1/2" / 114mm |
3 1/4" / 83mm |
4 |
5/8" |
5/8" / 16mm |
3/8" / 10mm |
1/2" / 13mm |
| 3/4" / DN20 |
BS10 Table J |
4 1/2" / 114mm |
3 1/4" / 83mm |
4 |
5/8" |
|
5/8" / 16mm |
5/8" / 16mm |
| 3/4" / DN20 |
BS10 Table K |
4 1/2" / 114mm |
3 1/4" / 83mm |
4 |
5/8" |
|
3/4" / 19mm |
3/4" / 19mm |
| 3/4" / DN20 |
BS4504-PN6 |
90mm |
65mm |
4 |
M10 |
14mm |
|
|
| 3/4" / DN20 |
BS4504-PN10 |
105mm |
75mm |
4 |
M12 |
16mm |
|
|
| 3/4" / DN20 |
BS4504-PN16 |
105mm |
75mm |
4 |
M12 |
16mm |
6mm |
18mm |
| 3/4" / DN20 |
BS4504-PN25 |
105mm |
75mm |
4 |
M12 |
18mm |
8mm |
18mm |
| 3/4" / DN20 |
BS4504-PN40 |
105mm |
75mm |
4 |
M12 |
|
9mm |
18mm |
| 3/4" / DN20 |
BS4504-PN64 |
130mm |
90mm |
4 |
M16 |
|
|
22mm |
| 3/4" / DN20 |
BS4504-PN100 |
130mm |
90mm |
4 |
M16 |
|
|
22mm |
Back to top
DN25 - 1"
| Valve Size | Class | Flange Diameter | PCD | No. of Bolts | Bolt Size | Thickness Cast Iron | Thickness Copper Alloy | Thickness Steel |
|---|
| 1" / DN25 |
ANSI 125/150 |
4 1/4" / 108mm |
3 1/8" / 79mm |
4 |
1/2" |
7/16" / 11mm |
3/8" / 10mm |
7/16" / 11mm |
| 1" / DN25 |
ANSI 300 |
4 7/8" / 124mm |
3 1/2" / 89mm |
4 |
5/8" |
|
19/32" / 15mm |
11/16" / 17mm |
| 1" / DN25 |
ANSI 600 |
4 7/8" / 124mm |
3 1/2" / 89mm |
4 |
5/8" |
|
|
11/16" / 17mm |
| 1" / DN25 |
ANSI 900 |
5 7/8" / 149mm |
4" / 102mm |
4 |
7/8" |
|
|
1 1/8" / 29mm |
| 1" / DN25 |
ANSI 1500 |
5 7/8" / 149mm |
4" / 102mm |
4 |
7/8" |
|
|
1 1/8" / 29mm |
| 1" / DN25 |
ANSI 2500 |
6 1/4" / 159mm |
4 1/4" / 108mm |
4 |
7/8" |
|
|
1 3/8" / 35mm |
| 1" / DN25 |
BS10 Table D |
4 1/2" / 114mm |
3 1/4" / 83mm |
4 |
1/2" |
1/2" / 13mm |
5/16" / 8mm |
3/8" / 10mm |
| 1" / DN25 |
BS10 Table E |
4 1/2" / 114mm |
3 1/4" / 83mm |
4 |
1/2" |
1/2" / 13mm |
5/16" / 8mm |
3/8" / 10mm |
| 1" / DN25 |
BS10 Table F |
4 3/4" / 121mm |
3 7/16" / 87mm |
4 |
5/8" |
1/2" / 13mm |
3/8" / 10mm |
3/8" / 10mm |
| 1" / DN25 |
BS10 Table H |
4 3/4" / 121mm |
3 7/16" / 87mm |
4 |
5/8" |
3/4" / 19mm |
7/16" / 11mm |
9/16" / 14mm |
| 1" / DN25 |
BS10 Table J |
4 3/4" / 121mm |
3 7/16" / 87mm |
4 |
5/8" |
|
3/4" / 19mm |
3/4" / 19mm |
| 1" / DN25 |
BS10 Table K |
5" / 127mm |
3 3/4" / 95mm |
4 |
5/8" |
|
7/8" / 22mm |
7/8" / 22mm |
| 1" / DN25 |
BS4504-PN6 |
100mm |
75mm |
4 |
M10 |
14mm |
|
|
| 1" / DN25 |
BS4504-PN10 |
115mm |
85mm |
4 |
M12 |
16mm |
|
|
| 1" / DN25 |
BS4504-PN16 |
115mm |
85mm |
4 |
M12 |
16mm |
8mm |
18mm |
| 1" / DN25 |
BS4504-PN25 |
115mm |
85mm |
4 |
M12 |
18mm |
9mm |
18mm |
| 1" / DN25 |
BS4504-PN40 |
115mm |
85mm |
4 |
M12 |
|
11mm |
18mm |
| 1" / DN25 |
BS4504-PN64 |
140mm |
100mm |
4 |
M16 |
|
|
24mm |
| 1" / DN25 |
BS4504-PN100 |
140mm |
100mm |
4 |
M16 |
|
|
24mm |
Back to top
DN32 - 1.25"
| Valve Size | Class | Flange Diameter | PCD | No. of Bolts | Bolt Size | Thickness Cast Iron | Thickness Copper Alloy | Thickness Steel |
|---|
| 1¼" / DN32 |
ANSI 125/150 |
4 5/8" / 117mm |
3 1/2" / 89mm |
4 |
1/2" |
1/2" / 13mm |
13/32" / 10mm |
1/2" / 13mm |
| 1¼" / DN32 |
ANSI 300 |
5 1/4" / 133mm |
3 7/8" / 98mm |
4 |
5/8" |
|
5/8" / 16mm |
3/4" / 19mm |
| 1¼" / DN32 |
ANSI 600 |
5 1/4" / 133mm |
3 7/8" / 98mm |
4 |
5/8" |
|
|
13/16" / 21mm |
| 1¼" / DN32 |
ANSI 900 |
6 1/4" / 159mm |
4 3/8" / 111mm |
4 |
7/8" |
|
|
1 1/8" / 29mm |
| 1¼" / DN32 |
ANSI 1500 |
6 1/4" / 159mm |
4 3/8" / 111mm |
4 |
7/8" |
|
|
1 1/8" / 29mm |
| 1¼" / DN32 |
ANSI 2500 |
7 1/4" / 184mm |
5 1/8" / 130mm |
4 |
1" |
|
|
1 1/2" / 38mm |
| 1¼" / DN32 |
BS10 Table D |
4 3/4" / 121mm |
3 7/16" / 87mm |
4 |
1/2" |
5/8" / 16mm |
5/16" / 8mm |
1/2" / 13mm |
| 1¼" / DN32 |
BS10 Table E |
4 3/4" / 121mm |
3 7/16" / 87mm |
4 |
1/2" |
5/8" / 16mm |
5/16" / 8mm |
1/2" / 13mm |
| 1¼" / DN32 |
BS10 Table F |
5 1/4" / 133mm |
3 7/8" / 98mm |
4 |
5/8" |
5/8" / 16mm |
3/8" / 10mm |
1/2" / 13mm |
| 1¼" / DN32 |
BS10 Table H |
5 1/4" / 133mm |
3 7/8" / 98mm |
4 |
5/8" |
7/8" / 22mm |
7/16" / 11mm |
11/16" / 17mm |
| 1¼" / DN32 |
BS10 Table J |
5 1/4" / 133mm |
3 7/8" / 98mm |
4 |
5/8" |
|
3/4" / 19mm |
3/4" / 19mm |
| 1¼" / DN32 |
BS10 Table K |
5 1/4" / 133mm |
3 7/8" / 98mm |
4 |
5/8" |
|
7/8" / 22mm |
7/8" / 22mm |
| 1¼" / DN32 |
BS4504-PN6 |
120mm |
90mm |
4 |
M12 |
16mm |
|
|
| 1¼" / DN32 |
BS4504-PN10 |
140mm |
100mm |
4 |
M16 |
18mm |
|
|
| 1¼" / DN32 |
BS4504-PN16 |
140mm |
100mm |
4 |
M16 |
18mm |
8mm |
18mm |
| 1¼" / DN32 |
BS4504-PN25 |
140mm |
100mm |
4 |
M16 |
20mm |
9mm |
18mm |
| 1¼" / DN32 |
BS4504-PN40 |
140mm |
100mm |
4 |
M16 |
|
11mm |
18mm |
| 1¼" / DN32 |
BS4504-PN64 |
155mm |
110mm |
4 |
M20 |
|
|
26mm |
| 1¼" / DN32 |
BS4504-PN100 |
155mm |
110mm |
4 |
M20 |
|
|
26mmV |
Back to top
DN40 - 1.5"
| Valve Size | Class | Flange Diameter | PCD | No. of Bolts | Bolt Size | Thickness Cast Iron | Thickness Copper Alloy | Thickness Steel |
|---|
| 1½" / DN40 |
ANSI 125/150 |
5" / 127mm |
3 7/8" / 98mm |
4 |
1/2" |
9/16" / 14mm |
7/16" / 11mm |
9/16" / 14mm |
| 1½" / DN40 |
ANSI 300 |
6 1/8" / 156mm |
4 1/2" / 114mm |
4 |
3/4" |
|
11/16" / 17mm |
13/16" / 21mm |
| 1½" / DN40 |
ANSI 600 |
6 1/8" / 156mm |
4 1/2" / 114mm |
4 |
3/4" |
|
|
7/8" / 22mm |
| 1½" / DN40 |
ANSI 900 |
7" / 178mm |
4 7/8" / 124mm |
4 |
1" |
|
|
1 1/4" / 32mm |
| 1½" / DN40 |
ANSI 1500 |
7" / 178mm |
4 7/8" / 124mm |
4 |
1" |
|
|
1 1/4" / 32mm |
| 1½" / DN40 |
ANSI 2500 |
8" / 203mm |
5 3/4" / 146mm |
4 |
1 1/8" |
|
|
1 3/4" / 45mm |
| 1½" / DN40 |
BS10 Table D |
5 1/4" / 133mm |
3 7/8" / 98mm |
4 |
1/2" |
5/8" / 16mm |
3/8" / 10mm |
1/2" / 13mm |
| 1½" / DN40 |
BS10 Table E |
5 1/4" / 133mm |
3 7/8" / 98mm |
4 |
1/2" |
5/8" / 16mm |
3/8" / 10mm |
1/2" / 13mm |
| 1½" / DN40 |
BS10 Table F |
5 1/2" / 140mm |
4 1/8" / 105mm |
4 |
5/8" |
5/8" / 16mm |
7/16" / 11mm |
1/2" / 13mm |
| 1½" / DN40 |
BS10 Table H |
5 1/2" / 140mm |
4 1/8" / 105mm |
4 |
5/8" |
7/8" / 22mm |
1/2" / 13mm |
11/16" / 17mm |
| 1½" / DN40 |
BS10 Table J |
5 1/2" / 140mm |
4 1/8" / 105mm |
4 |
5/8" |
|
7/8" / 22mm |
7/8" / 22mm |
| 1½" / DN40 |
BS10 Table K |
6" / 152mm |
4 1/2" / 114mm |
4 |
3/4" |
|
1" / 25mm |
1" / 25mm |
| 1½" / DN40 |
BS4504-PN6 |
130mm |
100mm |
4 |
M12 |
16mm |
|
|
| 1½" / DN40 |
BS4504-PN10 |
150mm |
110mm |
4 |
M16 |
18mm |
|
|
| 1½" / DN40 |
BS4504-PN16 |
150mm |
110mm |
4 |
M16 |
18mm |
9mm |
18mm |
| 1½" / DN40 |
BS4504-PN25 |
150mm |
110mm |
4 |
M16 |
20mm |
11mm |
18mm |
| 1½" / DN40 |
BS4504-PN40 |
150mm |
110mm |
4 |
M16 |
|
13mm |
18mm |
| 1½" / DN40 |
BS4504-PN64 |
170mm |
125mm |
4 |
M20 |
|
|
28mm |
| 1½" / DN40 |
BS4504-PN100 |
170mm |
125mm |
4 |
M20 |
|
|
28mm |
Back to top
DN50 - 2"
| Valve Size | Class | Flange Diameter | PCD | No. of Bolts | Bolt Size | Thickness Cast Iron | Thickness Copper Alloy | Thickness Steel |
|---|
| 2" / DN50 |
ANSI 125/150 |
6" / 152mm |
4 3/4" / 121mm |
4 |
5/8" |
5/8" / 16mm |
1/2" / 13mm |
5/8" / 16mm |
| 2" / DN50 |
ANSI 300 |
6 1/2" / 165mm |
5" / 127mm |
8 |
5/8" |
|
3/4" / 19mm |
7/8" / 22mm |
| 2" / DN50 |
ANSI 600 |
6 1/2" / 165mm |
5" / 127mm |
8 |
5/8" |
|
|
1" / 25mm |
| 2" / DN50 |
ANSI 900 |
8 1/2" / 216mm |
6 1/2" / 165mm |
8 |
7/8" |
|
|
1 1/2" / 38mm |
| 2" / DN50 |
ANSI 1500 |
8 1/2" / 216mm |
6 1/2" / 165mm |
8 |
7/8" |
|
|
1 1/2" / 38mm |
| 2" / DN50 |
ANSI 2500 |
9 1/4" / 235mm |
6 3/4" / 171mm |
8 |
1" |
|
|
2" / 51mm |
| 2" / DN50 |
BS10 Table D |
6" / 152mm |
4 1/2" / 114mm |
4 |
5/8" |
11/16" / 17mm |
3/8" / 10mm |
9/16" / 14mm |
| 2" / DN50 |
BS10 Table E |
6" / 152mm |
4 1/2" / 114mm |
4 |
5/8" |
3/4" / 19mm |
3/8" / 10mm |
9/16" / 14mm |
| 2" / DN50 |
BS10 Table F |
6 1/2" / 165mm |
5" / 127mm |
4 |
5/8" |
3/4" / 19mm |
7/16" / 11mm |
5/8" / 16mm |
| 2" / DN50 |
BS10 Table H |
6 1/2" / 165mm |
5" / 127mm |
4 |
5/8" |
1" / 25mm |
1/2" / 13mm |
3/4" / 19mm |
| 2" / DN50 |
BS10 Table J |
6 1/2" / 165mm |
5" / 127mm |
4 |
3/4" |
|
1" / 25mm |
1" / 25mm |
| 2" / DN50 |
BS10 Table K |
6 1/2" / 165mm |
5" / 127mm |
8 |
5/8" |
|
1" / 25mm |
1" / 25mm |
| 2" / DN50 |
BS4504-PN6 |
140mm |
110mm |
4 |
M12 |
16mm |
|
|
| 2" / DN50 |
BS4504-PN10 |
165mm |
125mm |
4 |
M16 |
20mm |
|
|
| 2" / DN50 |
BS4504-PN16 |
165mm |
125mm |
4 |
M16 |
20mm |
11mm |
20mm |
| 2" / DN50 |
BS4504-PN25 |
165mm |
125mm |
4 |
M16 |
22mm |
11mm |
20mm |
| 2" / DN50 |
BS4504-PN40 |
165mm |
125mm |
4 |
M16 |
|
13mm |
20mm |
| 2" / DN50 |
BS4504-PN64 |
180mm |
135mm |
4 |
M20 |
|
|
26mm |
| 2" / DN50 |
BS4504-PN100 |
195mm |
145mm |
4 |
M24 |
|
|
30mm |
Back to top
DN65 - 2.5"
| Valve Size | Class | Flange Diameter | PCD | No. of Bolts | Bolt Size | Thickness Cast Iron | Thickness Copper Alloy | Thickness Steel |
|---|
| 2½" / DN65 |
ANSI 125/150 |
7" / 178mm |
5 1/2" / 140mm |
4 |
5/8" |
11/16" / 17mm |
9/16" / 14mm |
11/16" / 17mm |
| 2½" / DN65 |
ANSI 300 |
7 1/2" / 191mm |
5 7/8" / 149mm |
8 |
3/4" |
|
13/16" / 21mm |
1" / 25mm |
| 2½" / DN65 |
ANSI 600 |
7 1/2" / 191mm |
5 7/8" / 149mm |
8 |
3/4" |
|
|
1 1/8" / 29mm |
| 2½" / DN65 |
ANSI 900 |
9 5/8" / 244mm |
7 1/2" / 191mm |
8 |
1" |
|
|
1 5/8" / 41mm |
| 2½" / DN65 |
ANSI 1500 |
9 5/8" / 244mm |
7 1/2" / 191mm |
8 |
1" |
|
|
1 5/8" / 41mm |
| 2½" / DN65 |
ANSI 2500 |
10 1/2" / 267mm |
7 3/4" / 197mm |
8 |
1 1/8" |
|
|
2 1/4" / 57mm |
| 2½" / DN65 |
BS10 Table D |
6 1/2" / 165mm |
5" / 127mm |
4 |
5/8" |
11/16" / 17mm |
7/16" / 11mm |
9/16" / 14mm |
| 2½" / DN65 |
BS10 Table E |
6 1/2" / 165mm |
5" / 127mm |
4 |
5/8" |
3/4" / 19mm |
7/16" / 11mm |
9/16" / 14mm |
| 2½" / DN65 |
BS10 Table F |
7 1/4" / 184mm |
5 3/4" / 146mm |
8 |
5/8" |
3/4" / 19mm |
1/2" / 13mm |
5/8" / 16mm |
| 2½" / DN65 |
BS10 Table H |
7 1/4" / 184mm |
5 3/4" / 146mm |
8 |
5/8" |
1" / 25mm |
9/16" / 14mm |
3/4" / 19mm |
| 2½" / DN65 |
BS10 Table J |
7 1/4" / 184mm |
5 3/4" / 146mm |
8 |
3/4" |
|
1" / 25mm |
1" / 25mm |
| 2½" / DN65 |
BS10 Table K |
7 1/4" / 184mm |
5 3/4" / 146mm |
8 |
3/4" |
|
1 1/8" / 29mm |
1 1/8" / 29mm |
| 2½" / DN65 |
BS4504-PN6 |
160mm |
130mm |
4 |
M12 |
16mm |
|
|
| 2½" / DN65 |
BS4504-PN10 |
185mm |
145mm |
4 |
M16 |
20mm |
|
|
Back to top
DN80 - 3"
| Valve Size | Class | Flange Diameter | PCD | No. of Bolts | Bolt Size | Thickness Cast Iron | Thickness Copper Alloy | Thickness Steel |
|---|
| 3" / DN80 |
ANSI 125/150 |
7 1/2" / 191mm |
6" / 152mm |
4 |
5/8" |
3/4" / 19mm |
5/8" / 16mm |
3/4" / 19mm |
| 3" / DN80 |
ANSI 300 |
8 1/4" / 210mm |
6 5/8" / 168mm |
8 |
3/4" |
|
29/32" / 23mm |
1 1/8" / 29mm |
| 3" / DN80 |
ANSI 600 |
8 1/4" / 210mm |
6 5/8" / 168mm |
8 |
3/4" |
|
|
1 1/4" / 32mm |
| 3" / DN80 |
ANSI 900 |
9 1/2" / 241mm |
7 1/2" / 192mm |
8 |
7/8" |
|
|
1 1/2" / 38mm |
| 3" / DN80 |
ANSI 1500 |
10 1/2" / 267mm |
8" / 203mm |
8 |
1 1/8" |
|
|
1 7/8" / 48mm |
| 3" / DN80 |
ANSI 2500 |
9" / 229mm |
7 3/4" / 197mm |
8 |
1 1/4" |
|
|
2 5/8" / 67mm |
| 3" / DN80 |
BS10 Table D |
7 1/4" / 184mm |
5 3/4" / 146mm |
4 |
5/8" |
3/4" / 19mm |
1/2" / 13mm |
9/16" / 14mm |
| 3" / DN80 |
BS10 Table E |
7 1/4" / 184mm |
5 3/4" / 146mm |
4 |
5/8" |
3/4" / 19mm |
1/2" / 13mm |
9/16" / 14mm |
| 3" / DN80 |
BS10 Table F |
8" / 203mm |
6 1/2" / 165mm |
8 |
5/8" |
3/4" / 19mm |
9/16" / 14mm |
5/8" / 16mm |
| 3" / DN80 |
BS10 Table H |
8" / 203mm |
6 1/2" / 165mm |
8 |
5/8" |
1 1/8" / 29mm |
5/8" / 16mm |
7/8" / 22mm |
| 3" / DN80 |
BS10 Table J |
8" / 203mm |
6 1/2" / 165mm |
8 |
3/4" |
|
1 1/4" / 32mm |
1 1/4" / 32mm |
| 3" / DN80 |
BS10 Table K |
8" / 203mm |
6 1/2" / 165mm |
8 |
3/4" |
|
1 1/4" / 32mm |
1 1/4" / 32mm |
| 3" / DN80 |
BS4504-PN6 |
190mm |
150mm |
4 |
M16 |
18mm |
|
|
| 3" / DN80 |
BS4504-PN10 |
200mm |
160mm |
8 |
M16 |
22mm |
|
|
| 3" / DN80 |
BS4504-PN16 |
200mm |
160mm |
8 |
M16 |
22mm |
13mm |
20mm |
| 3" / DN80 |
BS4504-PN25 |
200mm |
160mm |
8 |
M16 |
26mm |
14mm |
24mm |
| 3" / DN80 |
BS4504-PN40 |
200mm |
160mm |
8 |
M16 |
|
16mm |
24mm |
| 3" / DN80 |
BS4504-PN64 |
215mm |
170mm |
8 |
M20 |
|
|
28mm |
| 3" / DN80 |
BS4504-PN100 |
230mm |
180mm |
8 |
M24 |
|
|
36mm |
Back to top
DN100 - 4"
| Valve Size | Class | Flange Diameter | PCD | No. of Bolts | Bolt Size | Thickness Cast Iron | Thickness Copper Alloy | Thickness Steel |
|---|
| 4" / DN100 |
ANSI 125/150 |
9" / 229mm |
7 1/2" / 191mm |
8 |
5/8" |
15/16" / 24mm |
11/16" / 17mm |
15/16" / 24mm |
| 4" / DN100 |
ANSI 300 |
10" / 254mm |
7 7/8" / 200mm |
8 |
3/4" |
|
1 1/16" / 27mm |
1 1/4" / 32mm |
| 4" / DN100 |
ANSI 600 |
10 3/4" / 273mm |
8 1/2" / 216mm |
8 |
7/8" |
|
|
1 1/2" / 38mm |
| 4" / DN100 |
ANSI 900 |
11 1/2" / 292mm |
9 1/4" / 235mm |
8 |
1 1/8" |
|
|
1 3/4" / 44mm |
| 4" / DN100 |
ANSI 1500 |
12 1/4" / 311mm |
9 1/2" / 241mm |
8 |
1 1/4" |
|
|
2 1/8" / 54mm |
| 4" / DN100 |
ANSI 2500 |
14" / 356mm |
10 3/4" / 273mm |
8 |
1 1/2" |
|
|
3" / 76mm |
| 4" / DN100 |
BS10 Table D |
8 1/2" / 216mm |
7" / 178mm |
4 |
5/8" |
3/4" / 19mm |
5/8" / 16mm |
11/16" / 17mm |
| 4" / DN100 |
BS10 Table E |
8 1/2" / 216mm |
7" / 178mm |
8 |
5/8" |
7/8" / 22mm |
5/8" / 16mm |
11/16" / 17mm |
| 4" / DN100 |
BS10 Table F |
9" / 229mm |
7 1/2" / 191mm |
8 |
5/8" |
7/8" / 22mm |
11/16" / 17mm |
3/4" / 19mm |
| 4" / DN100 |
BS10 Table H |
9" / 229mm |
7 1/2" / 191mm |
8 |
5/8" |
1 1/4" / 32mm |
3/4" / 19mm |
1" / 25mm |
| 4" / DN100 |
BS10 Table J |
9" / 229mm |
7 1/2" / 191mm |
8 |
3/4" |
|
1 3/8" / 35mm |
1 3/8" / 35mm |
| 4" / DN100 |
BS10 Table K |
9 1/2" / 241mm |
7 3/4" / 197mm |
8 |
7/8" |
|
1 3/8" / 35mm |
1 3/8" / 35mm |
| 4" / DN100 |
BS4504-PN6 |
210mm |
170mm |
4 |
M16 |
18mm |
|
|
| 4" / DN100 |
BS4504-PN10 |
220mm |
180mm |
8 |
M16 |
24mm |
|
|
| 4" / DN100 |
BS4504-PN16 |
220mm |
180mm |
8 |
M16 |
24mm |
16mm |
20mm |
| 4" / DN100 |
BS4504-PN25 |
235mm |
190mm |
8 |
M20 |
28mm |
17mm |
24mm |
| 4" / DN100 |
BS4504-PN40 |
235mm |
190mm |
8 |
M20 |
|
19mm |
24mm |
| 4" / DN100 |
BS4504-PN64 |
250mm |
200mm |
8 |
M24 |
|
|
30mm |
| 4" / DN100 |
BS4504-PN100 |
265mm |
210mm |
8 |
M27 |
|
|
40mm |
Back to top
DN125 - 5"
| Valve Size | Class | Flange Diameter | PCD | No. of Bolts | Bolt Size | Thickness Cast Iron | Thickness Copper Alloy | Thickness Steel |
|---|
| 5" / DN125 |
ANSI 125/150 |
10" / 254mm |
8 1/2" / 216mm |
8 |
3/4" |
15/16" / 24mm |
3/4" / 19mm |
15/16" / 24mm |
| 5" / DN125 |
ANSI 300 |
11" / 279mm |
9 1/4" / 235mm |
8 |
3/4" |
|
1 1/8" / 29mm |
1 3/8" / 35mm |
| 5" / DN125 |
ANSI 600 |
13" / 330mm |
10 1/2" / 267mm |
8 |
1" |
|
|
1 3/4" / 44mm |
| 5" / DN125 |
ANSI 900 |
13 3/4" / 349mm |
11" / 279mm |
8 |
1 1/4" |
|
|
2" / 51mm |
| 5" / DN125 |
ANSI 1500 |
14 3/4" / 375mm |
11 1/2" / 292mm |
8 |
1 1/2" |
|
|
2 7/8" / 73mm |
| 5" / DN125 |
ANSI 2500 |
16 1/2" / 419mm |
12 3/4" / 324mm |
8 |
1 3/4" |
|
|
3 5/8" / 98mm |
| 5" / DN125 |
BS10 Table D |
10" / 254mm |
8 1/4" / 210mm |
4 |
5/8" |
13/16" / 21mm |
11/16" / 17mm |
11/16" / 17mm |
| 5" / DN125 |
BS10 Table E |
10" / 254mm |
8 1/4" / 210mm |
8 |
5/8" |
7/8" / 22mm |
11/16" / 17mm |
11/16" / 17mm |
| 5" / DN125 |
BS10 Table F |
11" / 279mm |
9 1/4" / 235mm |
8 |
3/4" |
1" / 25mm |
3/4" / 19mm |
7/8" / 22mm |
| 5" / DN125 |
BS10 Table H |
11" / 279mm |
9 1/4" / 235mm |
8 |
3/4" |
1 3/8" / 35mm |
7/8" / 22mm |
1 1/8" / 29mm |
| 5" / DN125 |
BS10 Table J |
11" / 279mm |
9 1/4" / 235mm |
8 |
7/8" |
|
1 1/2" / 38mm |
1 1/2" / 38mm |
| 5" / DN125 |
BS10 Table K |
11" / 279mm |
9 1/4" / 235mm |
12 |
7/8" |
|
1 5/8" / 41mm |
1 5/8" / 41mm |
| 5" / DN125 |
BS4504-PN6 |
240mm |
200mm |
8 |
M16 |
20mm |
|
|
| 5" / DN125 |
BS4504-PN10 |
250mm |
210mm |
8 |
M16 |
26mm |
|
|
| 5" / DN125 |
BS4504-PN16 |
250mm |
210mm |
8 |
M16 |
26mm |
22mm |
|
| 5" / DN125 |
BS4504-PN25 |
270mm |
220mm |
8 |
M24 |
30mm |
26mm |
|
| 5" / DN125 |
BS4504-PN40 |
270mm |
220mm |
8 |
M24 |
|
26mm |
|
| 5" / DN125 |
BS4504-PN64 |
295mm |
240mm |
8 |
M27 |
|
|
34mm |
| 5" / DN125 |
BS4504-PN100 |
315mm |
250mm |
8 |
M30 |
|
|
40mm |
Back to top
DN150 - 6"
| Valve Size | Class | Flange Diameter | PCD | No. of Bolts | Bolt Size | Thickness Cast Iron | Thickness Copper Alloy | Thickness Steel |
|---|
| 6" / DN150 |
ANSI 125/150 |
11" / 279mm |
9 1/2" / 241mm |
8 |
3/4" |
1" / 25mm |
13/16" / 21mm |
1" / 25mm |
| 6" / DN150 |
ANSI 300 |
12 1/2" / 318mm |
10 5/8" / 270mm |
12 |
3/4" |
|
1 3/16" / 30mm |
1 7/16" / 37mm |
| 6" / DN150 |
ANSI 600 |
14" / 356mm |
11 1/2" / 292mm |
12 |
1" |
|
|
1 7/8" / 48mm |
| 6" / DN150 |
ANSI 900 |
15" / 381mm |
12 1/2" / 318mm |
12 |
1 1/8" |
|
|
2 3/16" / 56mm |
| 6" / DN150 |
ANSI 1500 |
15 1/2" / 394mm |
12 1/2" / 318mm |
12 |
1 3/8" |
|
|
3 1/4" / 83mm |
| 6" / DN150 |
ANSI 2500 |
19" / 483mm |
14 1/2" / 368mm |
8 |
2" |
|
|
4 1/4" / 108mm |
| 6" / DN150 |
BS10 Table D |
11" / 279mm |
9 1/4" / 235mm |
8 |
5/8" |
13/16" / 21mm |
11/16" / 17mm |
11/16" / 17mm |
| 6" / DN150 |
BS10 Table E |
11" / 279mm |
9 1/4" / 235mm |
8 |
3/4" |
7/8" / 22mm |
11/16" / 17mm |
11/16" / 17mm |
| 6" / DN150 |
BS10 Table F |
12" / 305mm |
10 1/4" / 260mm |
12 |
3/4" |
1" / 25mm |
7/8" / 22mm |
7/8" / 22mm |
| 6" / DN150 |
BS10 Table H |
12" / 305mm |
10 1/4" / 260mm |
12 |
3/4" |
1 3/8" / 35mm |
1" / 25mm |
1 1/8" / 29mm |
| 6" / DN150 |
BS10 Table J |
12" / 305mm |
10 1/4" / 260mm |
12 |
7/8" |
|
1 1/2" / 38mm |
1 1/2" / 38mm |
| 6" / DN150 |
BS10 Table K |
12" / 305mm |
10 1/4" / 260mm |
12 |
7/8" |
|
1 5/8" / 41mm |
1 5/8" / 41mm |
| 6" / DN150 |
BS4504-PN6 |
265mm |
225mm |
8 |
M16 |
20mm |
|
|
| 6" / DN150 |
BS4504-PN10 |
285mm |
240mm |
8 |
M20 |
26mm |
|
|
| 6" / DN150 |
BS4504-PN16 |
285mm |
240mm |
8 |
M20 |
26mm |
22mm |
|
| 6" / DN150 |
BS4504-PN25 |
300mm |
250mm |
8 |
M24 |
34mm |
28mm |
|
| 6" / DN150 |
BS4504-PN40 |
300mm |
250mm |
8 |
M24 |
|
28mm |
|
| 6" / DN150 |
BS4504-PN64 |
345mm |
280mm |
8 |
M30 |
|
|
36mm |
| 6" / DN150 |
BS4504-PN100 |
355mm |
290mm |
12 |
M30 |
|
|
44mm |
Back to top
DN200 - 8"
| Valve Size | Class | Flange Diameter | PCD | No. of Bolts | Bolt Size | Thickness Cast Iron | Thickness Copper Alloy | Thickness Steel |
|---|
| 8" / DN200 |
ANSI 125/150 |
13 1/2" / 343mm |
11 3/4" / 298mm |
8 |
3/4" |
1 1/8" / 29mm |
15/16" / 24mm |
1 1/8" / 29mm |
| 8" / DN200 |
ANSI 300 |
15" / 381mm |
13" / 330mm |
12 |
7/8" |
|
1 3/8" / 35mm |
1 5/8" / 41mm |
| 8" / DN200 |
ANSI 600 |
16 1/2" / 419mm |
13 3/4" / 349mm |
12 |
1 1/8" |
|
|
2 3/16" / 56mm |
| 8" / DN200 |
ANSI 900 |
18 1/2" / 470mm |
15 1/2" / 394mm |
12 |
1 3/8" |
|
|
2 1/2" / 64mm |
| 8" / DN200 |
ANSI 1500 |
19" / 483mm |
15 1/2" / 394mm |
12 |
1 5/8" |
|
|
3 5/8" / 92mm |
| 8" / DN200 |
ANSI 2500 |
21 3/4" / 552.5mm |
17 1/4" / 438mm |
12 |
2" |
|
|
5" / 127mm |
| 8" / DN200 |
BS10 Table D |
13 1/4" / 337mm |
11 1/2" / 292mm |
8 |
5/8" |
7/8" / 22mm |
3/4" / 19mm |
3/4" / 19mm |
| 8" / DN200 |
BS10 Table E |
13 1/4" / 337mm |
11 1/2" / 292mm |
8 |
3/4" |
1" / 25mm |
3/4" / 19mm |
3/4" / 19mm |
| 8" / DN200 |
BS10 Table F |
14 1/2" / 368mm |
12 3/4" / 324mm |
12 |
3/4" |
1 1/8" / 29mm |
1" / 25mm |
1" / 25mm |
| 8" / DN200 |
BS10 Table H |
14 1/2" / 368mm |
12 3/4" / 324mm |
12 |
3/4" |
1 1/2" / 38mm |
1 1/4" / 32mm |
1 1/4" / 32mm |
| 8" / DN200 |
BS10 Table J |
14 1/2" / 368mm |
12 3/4" / 324mm |
12 |
7/8" |
|
1 5/8" / 41mm |
1 5/8" / 41mm |
| 8" / DN200 |
BS10 Table K |
14 1/2" / 368mm |
12 1/2" / 318mm |
12 |
1" |
|
1 7/8" / 48mm |
1 7/8" / 48mm |
| 8" / DN200 |
BS4504-PN6 |
320mm |
280mm |
8 |
M16 |
22mm |
|
|
| 8" / DN200 |
BS4504-PN10 |
340mm |
295mm |
8 |
M20 |
26mm |
|
|
| 8" / DN200 |
BS4504-PN16 |
340mm |
295mm |
12 |
M20 |
30mm |
24mm |
|
| 8" / DN200 |
BS4504-PN25 |
360mm |
310mm |
12 |
M24 |
34mm |
30mm |
|
| 8" / DN200 |
BS4504-PN40 |
375mm |
320mm |
12 |
M27 |
|
34mm |
|
| 8" / DN200 |
BS4504-PN64 |
415mm |
345mm |
12 |
M33 |
|
|
42mm |
| 8" / DN200 |
BS4504-PN100 |
430mm |
360mm |
12 |
M33 |
|
|
52mm |
Back to top
DN250 - 10"
| Valve Size | Class | Flange Diameter | PCD | No. of Bolts | Bolt Size | Thickness Cast Iron | Thickness Copper Alloy | Thickness Steel |
|---|
| 10" / DN250 |
ANSI 125/150 |
16" / 406mm |
14 1/4" / 362mm |
12 |
7/8" |
1 3/16" / 30mm |
1" / 25mm |
1 3/16" / 30mm |
| 10" / DN250 |
ANSI 300 |
17 1/2" / 445mm |
15 1/4" / 387mm |
16 |
1" |
|
|
1 7/8" / 48mm |
| 10" / DN250 |
ANSI 600 |
20" / 508mm |
17" / 432mm |
16 |
1 1/4" |
|
|
2 1/2" / 64mm |
| 10" / DN250 |
ANSI 900 |
21 1/2" / 546mm |
18 1/2" / 470mm |
16 |
1 3/8" |
|
|
2 3/4" / 70mm |
| 10" / DN250 |
ANSI 1500 |
23" / 584mm |
19" / 483mm |
12 |
1 7/8" |
|
|
4 1/4" / 108mm |
| 10" / DN250 |
ANSI 2500 |
26 1/2" / 673mm |
21 1/4" / 540mm |
12 |
2 1/2" |
|
|
6 1/2" / 165mm |
| 10" / DN250 |
BS10 Table D |
16" / 406mm |
14" / 356mm |
8 |
3/4" |
1" / 25mm |
3/4" / 19mm |
3/4" / 19mm |
| 10" / DN250 |
BS10 Table E |
16" / 406mm |
14" / 356mm |
12 |
3/4" |
1" / 25mm |
7/8" / 22mm |
7/8" / 22mm |
| 10" / DN250 |
BS10 Table F |
17" / 432mm |
15" / 381mm |
12 |
7/8" |
1 1/8" / 29mm |
1" / 25mm |
1" / 25mm |
| 10" / DN250 |
BS10 Table H |
17" / 432mm |
15" / 381mm |
12 |
7/8" |
1 5/8" / 41mm |
1 3/8" / 35mm |
1 3/8" / 35mm |
| 10" / DN250 |
BS10 Table J |
17" / 432mm |
15" / 381mm |
12 |
1" |
|
|
1 7/8" / 48mm |
| 10" / DN250 |
BS10 Table K |
17" / 432mm |
15" / 381mm |
16 |
1" |
|
|
2" / 51mm |
| 10" / DN250 |
BS4504-PN6 |
375mm |
335mm |
12 |
M16 |
24mm |
|
|
| 10" / DN250 |
BS4504-PN10 |
395mm |
350mm |
12 |
M20 |
28mm |
|
|
| 10" / DN250 |
BS4504-PN16 |
405mm |
355mm |
12 |
M24 |
32mm |
26mm |
|
| 10" / DN250 |
BS4504-PN25 |
425mm |
370mm |
12 |
M27 |
36mm |
32mm |
|
| 10" / DN250 |
BS4504-PN40 |
450mm |
385mm |
12 |
M30 |
|
|
38mm |
| 10" / DN250 |
BS4504-PN64 |
470mm |
400mm |
12 |
M33 |
|
|
46mm |
| 10" / DN250 |
BS4504-PN100 |
505mm |
430mm |
12 |
M36 |
|
|
60mm |
Back to top
DN300 - 12"
| Valve Size | Class | Flange Diameter | PCD | No. of Bolts | Bolt Size | Thickness Cast Iron | Thickness Copper Alloy | Thickness Steel |
|---|
| 12" / DN300 |
ANSI 125/150 |
19" / 483mm |
17" / 432mm |
12 |
7/8" |
1 1/4" / 32mm |
1 1/16" / 27mm |
1 1/4" / 32mm |
| 12" / DN300 |
ANSI 300 |
20 1/2" / 521mm |
17 3/4" / 451mm |
16 |
1 1/8" |
|
|
2" / 51mm |
| 12" / DN300 |
ANSI 600 |
22" / 559mm |
19 1/4" / 489mm |
20 |
1 1/4" |
|
|
2 5/8" / 67mm |
| 12" / DN300 |
ANSI 900 |
24" / 610mm |
21" / 533mm |
20 |
1 3/8" |
|
|
3 1/8" / 79mm |
| 12" / DN300 |
ANSI 1500 |
26 1/2" / 673mm |
22 1/2" / 572mm |
16 |
2" |
|
|
4 7/8" / 124mm |
| 12" / DN300 |
ANSI 2500 |
30" / 762.1mm |
24 3/8" / 619mm |
12 |
2 3/4" |
|
|
7 1/4" / 184mm |
| 12" / DN300 |
BS10 Table D |
18" / 457mm |
16" / 406mm |
12 |
3/4" |
1" / 25mm |
7/8" / 22mm |
7/8" / 22mm |
| 12" / DN300 |
BS10 Table E |
18" / 457mm |
16" / 406mm |
12 |
7/8" |
1 1/8" / 29mm |
1" / 25mm |
1" / 25mm |
| 12" / DN300 |
BS10 Table F |
19 1/4" / 489mm |
17 1/4" / 438mm |
16 |
7/8" |
1 1/4" / 32mm |
1 1/8" / 29mm |
1 1/8" / 29mm |
| 12" / DN300 |
BS10 Table H |
19 1/4" / 489mm |
17 1/4" / 438mm |
16 |
7/8" |
1 3/4" / 44mm |
1 1/2" / 38mm |
1 1/2" / 38mm |
| 12" / DN300 |
BS10 Table J |
19 1/4" / 489mm |
17 1/4" / 438mm |
16 |
1" |
|
|
2" / 51mm |
| 12" / DN300 |
BS10 Table K |
19 1/4" / 489mm |
17" / 432mm |
16 |
1 1/8" |
|
|
2 1/4" / 57mm |
| 12" / DN300 |
BS4504-PN6 |
440mm |
395mm |
12 |
M20 |
24mm |
|
|
| 12" / DN300 |
BS4504-PN10 |
445mm |
400mm |
12 |
M20 |
28mm |
|
|
| 12" / DN300 |
BS4504-PN16 |
460mm |
410mm |
12 |
M24 |
32mm |
28mm |
|
| 12" / DN300 |
BS4504-PN25 |
485mm |
430mm |
16 |
M27 |
40mm |
34mm |
|
| 12" / DN300 |
BS4504-PN40 |
515mm |
450mm |
16 |
M30 |
|
|
42mm |
| 12" / DN300 |
BS4504-PN64 |
530mm |
460mm |
16 |
M33 |
|
|
52mm |
| 12" / DN300 |
BS4504-PN100 |
585mm |
500mm |
16 |
M39 |
|
|
68mm |
Back to top
DN350 - 14"
|
Class
|
Size
|
Flange
Diameter
|
PCD
|
Number
of Bolts
|
Bolt
Size
|
Thickness
Cast Iron
|
Thickness
Copper Alloy
|
Thickness
Steel
|
|---|
|
ANSI 125/150
|
14" / DN350
|
21" / 533mm
|
18 3/4" / 476mm
|
12
|
1"
|
1 3/8" / 35mm
|
|
1 3/8" / 35mm
|
|
ANSI 300
|
14" / DN350
|
23" / 584mm
|
20 1/4" / 514mm
|
20
|
1 1/8"
|
|
|
2 1/8" / 54mm
|
|
ANSI 600
|
14" / DN350
|
23 3/4" / 603mm
|
20 3/4" / 527mm
|
20
|
1 3/8"
|
|
|
2 3/4" / 70mm
|
|
ANSI 900
|
14" / DN350
|
25 1/4" / 641mm
|
22" / 559mm
|
20
|
1 1/2"
|
|
|
3 3/8" / 86mm
|
|
ANSI 1500
|
14" / DN350
|
29 1/2" / 749mm
|
25" / 635mm
|
16
|
2 1/4"
|
|
|
5 1/4" / 133mm
|
|
BS10 Table D
|
14" / DN350
|
20 3/4" / 527mm
|
18 1/2" / 470mm
|
12
|
7/8" / 22mm
|
1 1/8" / 29mm
|
1" / 25mm
|
1" / 25mm
|
|
BS10 Table E
|
14" / DN350
|
20 3/4" / 527mm
|
18 1/2" / 470mm
|
12
|
7/8" / 22mm
|
1 1/4" / 32mm
|
1" / 25mm
|
1" / 25mm
|
|
BS10 Table F
|
14" / DN350
|
21 3/4" / 552mm
|
19 1/2" / 495mm
|
16
|
1"
|
1 3/8" / 35mm
|
1 1/4" / 32mm
|
1 1/4" / 32mm
|
|
BS10 Table H
|
14" / DN350
|
21 3/4" / 552mm
|
19 1/2" / 495mm
|
16
|
1"
|
1 7/8" / 48mm
|
1 5/8" / 41mm
|
1 5/8" / 41mm
|
|
BS10 Table J
|
14" / DN350
|
21 3/4" / 552mm
|
19 1/2" / 495mm
|
16
|
1 1/8"
|
|
|
2 1/8" / 54mm
|
|
BS10 Table K
|
14" / DN350
|
22 1/2" / 572mm
|
20" / 508mm
|
16
|
1 1/4"
|
|
|
2 3/8" / 60mm
|
|
BS4504-PN6
|
14" / DN350
|
490mm
|
445mm
|
12
|
M20
|
26mm
|
|
|
|
BS4504-PN10
|
14" / DN350
|
505mm
|
460mm
|
16
|
M20
|
30mm
|
|
|
|
BS4504-PN16
|
14" / DN350
|
520mm
|
470mm
|
16
|
M24
|
36mm
|
|
30mm
|
|
BS4504-PN25
|
14" / DN350
|
555mm
|
490mm
|
16
|
M30
|
44mm
|
|
38mm
|
|
BS4504-PN40
|
14" / DN350
|
580mm
|
510mm
|
16
|
M33
|
|
|
46mm
|
|
BS4504-PN64
|
14" / DN350
|
600mm
|
525mm
|
16
|
M36
|
|
|
56mm
|
|
BS4504-PN100
|
14" / DN350
|
655mm
|
560mm
|
16
|
M45
|
|
|
74mm
|
Back to top
DN400 - 16"
| Valve Size | Class | Flange Diameter | PCD | No. of Bolts | Bolt Size | Thickness Cast Iron | Thickness Copper Alloy | Thickness Steel |
|---|
| 16" / DN400 |
ANSI 125/150 |
23 1/2" / 597mm |
21 1/4" / 540mm |
16 |
1" |
1 7/16" / 37mm |
|
1 7/16" / 37mm |
| 16" / DN400 |
ANSI 300 |
25 1/2" / 648mm |
22 1/2" / 572mm |
20 |
1 1/4" |
|
|
2 1/4" / 57mm |
| 16" / DN400 |
ANSI 600 |
27" / 686mm |
23 3/4" / 603mm |
20 |
1 1/2" |
|
|
3" / 76mm |
| 16" / DN400 |
ANSI 900 |
27 3/4" / 705mm |
24 1/4" / 616mm |
20 |
1 5/8" |
|
|
3 1/2" / 89mm |
| 16" / DN400 |
ANSI 1500 |
32 1/2" / 826mm |
27 3/4" / 705mm |
16 |
2 1/2" |
|
|
5 3/4" / 146mm |
| 16" / DN400 |
BS10 Table D |
22 3/4" / 578mm |
20 1/2" / 521mm |
12 |
7/8" |
1 1/8" / 29mm |
1" / 25mm |
1" / 25mm |
| 16" / DN400 |
BS10 Table E |
22 3/4" / 578mm |
20 1/2" / 521mm |
12 |
7/8" |
1 1/4" / 32mm |
1" / 25mm |
1" / 25mm |
| 16" / DN400 |
BS10 Table F |
24" / 610mm |
21 3/4" / 552mm |
20 |
1" |
1 3/8" / 35mm |
1 1/4" / 32mm |
1 1/4" / 32mm |
| 16" / DN400 |
BS10 Table H |
24" / 610mm |
21 3/4" / 552mm |
20 |
1" |
2" / 51mm |
1 3/4" / 44mm |
1 3/4" / 44mm |
| 16" / DN400 |
BS10 Table J |
24" / 610mm |
21 3/4" / 552mm |
20 |
1 1/8" |
|
|
2 1/4" / 57mm |
| 16" / DN400 |
BS10 Table K |
24 3/4" / 629mm |
22 1/4" / 565mm |
20 |
1 1/4" |
|
|
2 5/8" / 67mm |
| 16" / DN400 |
BS4504-PN6 |
540mm |
495mm |
16 |
M20 |
28mm |
|
|
| 16" / DN400 |
BS4504-PN10 |
565mm |
515mm |
16 |
M24 |
32mm |
|
|
| 16" / DN400 |
BS4504-PN16 |
580mm |
525mm |
16 |
M27 |
38mm |
32mm |
|
| 16" / DN400 |
BS4504-PN25 |
620mm |
550mm |
16 |
M33 |
48mm |
40mm |
|
| 16" / DN400 |
BS4504-PN40 |
660mm |
585mm |
16 |
M36 |
|
|
50mm |
| 16" / DN400 |
BS4504-PN64 |
670mm |
585mm |
16 |
M39 |
|
|
60mm |
| 16" / DN400 |
BS4504-PN100 |
715mm |
620mm |
16 |
M45 |
|
|
78mm |
Back to top
DN450 - 18"
| Valve Size | Class | Flange Diameter | PCD | No. of Bolts | Bolt Size | Thickness Cast Iron | Thickness Copper Alloy | Thickness Steel |
|---|
| 18" / DN450 |
ANSI 125/150 |
25" / 635mm |
22 3/4" / 578mm |
16 |
1 1/8" |
1 9/16" / 40mm |
|
1 9/16" / 40mm |
| 18" / DN450 |
ANSI 300 |
28" / 711mm |
24 3/4" / 629mm |
24 |
1 1/4" |
|
|
2 3/8" / 60mm |
| 18" / DN450 |
ANSI 600 |
29 1/4" / 743mm |
25 3/4" / 654mm |
20 |
1 5/8" |
|
|
3 1/4" / 83mm |
| 18" / DN450 |
ANSI 900 |
31" / 787mm |
27" / 686mm |
20 |
1 7/8" |
|
|
4" / 102mm |
| 18" / DN450 |
ANSI 1500 |
36" / 914mm |
30 1/2" / 775mm |
16 |
2 3/4" |
|
|
6 3/8" / 162mm |
| 18" / DN450 |
BS10 Table D |
25 1/4" / 641mm |
23" / 584mm |
12 |
7/8" |
1 1/4" / 32mm |
1 1/8" / 29mm |
1 1/8" / 29mm |
| 18" / DN450 |
BS10 Table E |
25 1/4" / 641mm |
23" / 584mm |
16 |
7/8" |
1 3/8" / 35mm |
1 1/8" / 29mm |
1 1/8" / 29mm |
| 18" / DN450 |
BS10 Table F |
26 1/2" / 673mm |
24" / 610mm |
20 |
1 1/8" |
1 1/2" / 38mm |
1 3/8" / 35mm |
1 3/8" / 35mm |
| 18" / DN450 |
BS10 Table H |
26 1/2" / 673mm |
24" / 610mm |
20 |
1 1/8" |
2 1/8" / 54mm |
1 7/8" / 48mm |
1 7/8" / 48mm |
| 18" / DN450 |
BS10 Table J |
26 1/2" / 673mm |
24" / 610mm |
20 |
1 1/4" |
|
|
2 3/8" / 60mm |
| 18" / DN450 |
BS10 Table K |
28 1/4" / 718mm |
25 3/4" / 654mm |
20 |
1 3/8" |
|
|
3" / 76mm |
| 18" / DN450 |
BS4504-PN6 |
595mm |
550mm |
16 |
M20 |
30mm |
|
|
| 18" / DN450 |
BS4504-PN10 |
615mm |
565mm |
20 |
M24 |
32mm |
|
|
| 18" / DN450 |
BS4504-PN16 |
640mm |
585mm |
20 |
M27 |
40mm |
|
|
Back to top
DN500 - 20"
| Valve Size | Class | Flange Diameter | PCD | No. of Bolts | Bolt Size | Thickness Cast Iron | Thickness Copper Alloy | Thickness Steel |
|---|
| 20" / DN500 |
ANSI 125/150 |
27 1/2" / 699mm |
25" / 635mm |
20 |
1 1/8" |
1 11/16" / 43mm |
|
1 11/16" / 43mm |
| 20" / DN500 |
ANSI 300 |
30 1/2" / 775mm |
27" / 686mm |
24 |
1 1/4" |
|
|
2 1/2" / 64mm |
| 20" / DN500 |
ANSI 600 |
32" / 813mm |
28 1/2" / 724mm |
24 |
1 5/8" |
|
|
3 1/2" / 89mm |
| 20" / DN500 |
ANSI 900 |
33 1/4" / 845mm |
29 1/2" / 749mm |
20 |
2" |
|
|
4 1/4" / 108mm |
| 20" / DN500 |
ANSI 1500 |
38 3/4" / 984mm |
32 3/4" / 832mm |
16 |
3" |
|
|
7" / 178mm |
| 20" / DN500 |
BS10 Table D |
27 3/4" / 705mm |
25 1/4" / 641mm |
16 |
7/8" |
1 1/4" / 32mm |
1 1/4" / 32mm |
1 1/4" / 32mm |
| 20" / DN500 |
BS10 Table E |
27 3/4" / 705mm |
25 1/4" / 641mm |
16 |
7/8" |
1 1/2" / 38mm |
1 1/4" / 32mm |
1 1/4" / 32mm |
| 20" / DN500 |
BS10 Table F |
29" / 737mm |
26 1/2" / 673mm |
24 |
1 1/8" |
1 5/8" / 41mm |
1 1/2" / 38mm |
1 1/2" / 38mm |
| 20" / DN500 |
BS10 Table H |
29" / 737mm |
26 1/2" / 673mm |
24 |
1 1/8" |
2 1/4" / 57mm |
2" / 51mm |
2" / 51mm |
| 20" / DN500 |
BS10 Table J |
29" / 737mm |
26 1/2" / 673mm |
24 |
1 1/4" |
|
|
2 1/2" / 64mm |
| 20" / DN500 |
BS10 Table K |
31" / 787mm |
28" / 711mm |
20 |
1 1/2" |
|
|
3 1/4" / 83mm |
| 20" / DN500 |
BS4504-PN6 |
645mm |
600mm |
20 |
M20 |
30mm |
|
|
| 20" / DN500 |
BS4504-PN10 |
670mm |
620mm |
20 |
M24 |
34mm |
|
|
| 20" / DN500 |
BS4504-PN16 |
715mm |
650mm |
20 |
M30 |
42mm |
36mm |
|
| 20" / DN500 |
BS4504-PN25 |
730mm |
660mm |
20 |
M33 |
52mm |
44mm |
|
| 20" / DN500 |
BS4504-PN40 |
755mm |
670mm |
20 |
M39 |
|
|
52mm |
| 20" / DN500 |
BS4504-PN64 |
800mm |
705mm |
20 |
M45 |
|
|
68mm |
| 20" / DN500 |
BS4504-PN100 |
870mm |
760mm |
20 |
M52 |
|
|
94mm |
Back to top
DN600 - 24"
| Valve Size | Class | Flange Diameter | PCD | No. of Bolts | Bolt Size | Thickness Cast Iron | Thickness Copper Alloy | Thickness Steel |
|---|
| 24" / DN600 |
ANSI 125/150 |
32" / 813mm |
29 1/2" / 749mm |
20 |
1 1/4" |
1 7/8" / 48mm |
|
1 7/8" / 48mm |
| 24" / DN600 |
ANSI 300 |
36" / 914mm |
32" / 813mm |
24 |
1 1/2" |
|
|
2 3/4" / 70mm |
| 24" / DN600 |
ANSI 600 |
37" / 940mm |
33" / 838mm |
24 |
1 7/8" |
|
|
4" / 102mm |
| 24" / DN600 |
ANSI 900 |
41" / 1041mm |
35 1/2" / 902mm |
20 |
2 1/2" |
|
|
5 1/2" / 140mm |
| 24" / DN600 |
ANSI 1500 |
46" / 1168mm |
39" / 991mm |
16 |
3 1/2" |
|
|
8" / 203mm |
| 24" / DN600 |
BS10 Table D |
32 1/2" / 826mm |
29 3/4" / 756mm |
16 |
1" |
1 3/8" / 35mm |
1 3/8" / 35mm |
1 3/8" / 35mm |
| 24" / DN600 |
BS10 Table E |
32 1/2" / 826mm |
29 3/4" / 756mm |
16 |
1 1/8" |
1 5/8" / 41mm |
1 1/2" / 38mm |
1 1/2" / 38mm |
| 24" / DN600 |
BS10 Table F |
33 1/2" / 851mm |
30 3/4" / 781mm |
24 |
1 1/4" |
1 3/4" / 44mm |
1 5/8" / 41mm |
1 5/8" / 41mm |
| 24" / DN600 |
BS10 Table H |
33 1/2" / 851mm |
30 3/4" / 781mm |
24 |
1 1/4" |
2 1/2" / 64mm |
2 1/4" / 57mm |
2 1/4" / 57mm |
| 24" / DN600 |
BS10 Table J |
33 1/2" / 851mm |
30 3/4" / 781mm |
24 |
1 3/8" |
|
|
2 3/4" / 70mm |
| 24" / DN600 |
BS4504-PN6 |
755mm |
705mm |
20 |
M24 |
30mm |
|
|
| 24" / DN600 |
BS4504-PN10 |
780mm |
725mm |
20 |
M27 |
36mm |
|
|
| 24" / DN600 |
BS4504-PN16 |
840mm |
770mm |
20 |
M33 |
48mm |
40mm |
|
| 24" / DN600 |
BS4504-PN25 |
845mm |
770mm |
20 |
M36 |
46mm |
|
|
| 24" / DN600 |
BS4504-PN40 |
890mm |
795mm |
20 |
M45 |
|
|
60mm |
| 24" / DN600 |
BS4504-PN64 |
930mm |
820mm |
20 |
M52 |
|
|
76mm |
| 24" / DN600 |
BS4504-PN100 |
990mm |
875mm |
20 |
M56 |
|
|
104mm |
Back to top
Use this table as a fast-reference tool when selecting valves, gaskets, and bolting for new installations, upgrades, or maintenance work. It is particularly useful in environments where ANSI and British standards are used side-by-side, helping to prevent costly mismatches and on-site delays.
Always verify final dimensions against the relevant standard or manufacturer’s datasheet for critical applications, especially in high-pressure or safety-critical systems. This guide is intended to support day-to-day engineering decisions, streamline procurement, and provide a single source of truth for flange and gasket compatibility across your projects.
