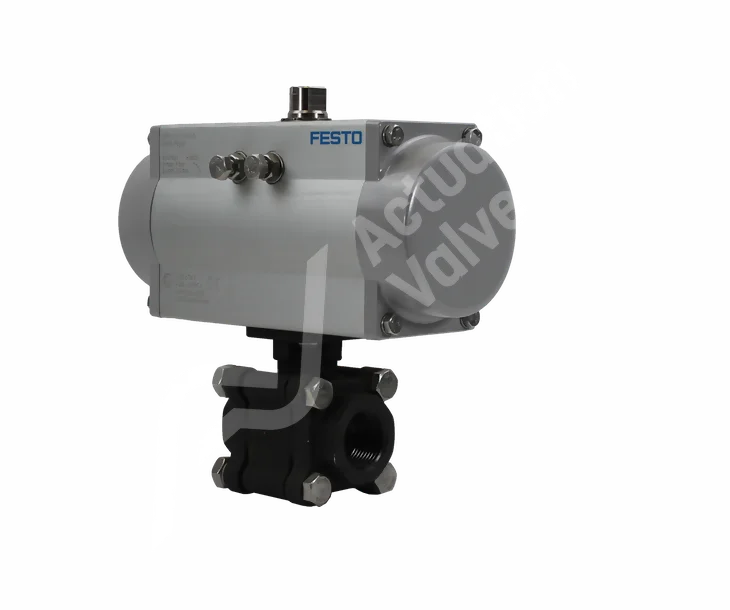

Heavy Duty Festo Carbon Steel Actuated Ball Valves

The AV-L8000FCFE and AV-L8200FCFE 3 piece full bore heavy duty actuated ball offer a more cost effective option to that of the stainless steel valve for use in less corrosive environments. Our carbon steel ball valves come pre-tested so you can get them up and running immediately. You will also receive a two page test report detailing all opening/closing times after your order has been completed. Festo DFPD Pneumatic Actuators are used in a wide variety of applications, from simple on-off control valves that activate when pressure is applied or released, through complex systems involving multiple actuators and sensors working together in close proximity.

Key Features

Key features and benefits of AV-L8000FCFE & AV-L8200FCFE Actuated Ball Valves.
1

Key Features

Festo’s DFPD series is an innovative design that sets itself apart from other pneumatic actuators by providing high performance with low energy consumption and long lifetime under harsh conditions. More importantly, the DFPD does this at an affordable price point.
2

Key Features

The three piece design helps prevent damage caused by improper disassembly when removing and replacing seals or other components in the valve body. Our innovative design also allows users to replace any single component without having to replace the entire valve assembly.
3

Key Features

The Festo Pneumatic Actuator DFPD offers an affordable alternative to traditional quarter turn pneumatic actuators with the option for integrated position feedback technology. This integration allows the user to monitor the position of the valve in real time at any point during operation.

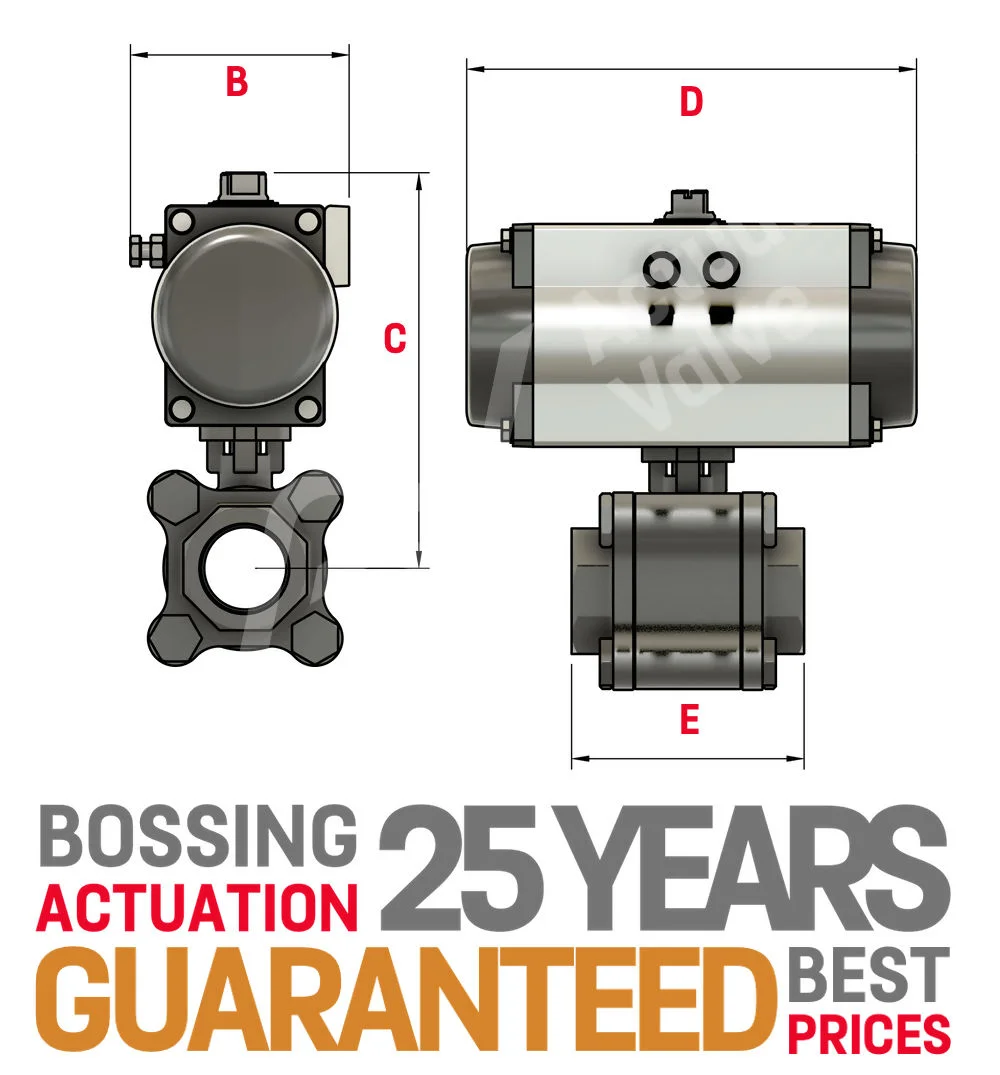

Screwed/Socket Weld Technical Stuff

B C D E B C D E
SR SR SR SR DA DA DA DA
1/4" 77.70 143.00 145.70 75.00 77.70 143.00 133.30 75.00
3/8" 77.70 143.00 145.70 75.00 77.70 143.00 133.30 75.00
1/2" 77.70 143.00 145.70 75.00 77.70 143.00 133.30 75.00
3/4" 77.70 151.00 145.70 80.00 77.70 151.00 133.30 80.00
1" 89.70 170.00 170.40 90.00 77.70 158.00 133.30 90.00
1 1/4" 89.70 175.00 170.40 110.00 77.70 163.00 133.30 110.00
1 1/2" 108.00 205.00 223.10 120.00 89.70 187.00 151.40 120.00
2" 108.00 216.00 223.10 140.00 108.00 216.00 189.30 140.00
2.5" TBA TBA TBA TBA TBA TBA TBA TBA
3" TBA TBA TBA TBA TBA TBA TBA TBA
4" TBA TBA TBA TBA TBA TBA TBA TBA

Screwed/Socket Weld 3D Stuff

Actuated Valve Testing & Calibration

All actuated valve assemblies are fully tested and calibrated in house prior to packing and shipping from our expert team of technical engineers. This means that when they arrive at site, you're immediately ready to install and get your production back up and running.

Valve Standards & Stuff

Body Material: ASTM A216 WCB Carbon Steel & 304 SS Trim
Seats Material: TFM 4215® (25% Carbon Filled TFM)
Design Standard: MSS SP-110
Wall Thickness: ASME B16.34 Class 800 (1/4" - 1") & 600 (1.1/4" - 2")
Inspection & Testing: MSS SP-110
BSP Ends: BSPP IS0 228/1
Socket Weld Ends: ASME B16.11
Silicone Free: Suitable For Oil Based Paints
Anti Static Device: Ball, Shaft & Valve Body

Frequent Interrogation

Yes, this Valve is suitable for water within the pressure and temperature limitations.
Great. The Namur standard interface is perfect for direct mounting a pilot solenoid valve. We can supply this actuated valve for you with or without a solenoid valve.
It certainly does. All of our actuated valves come complete with a full set of operations and maintenance manuals from both the valve and actuator manufacturers.

Yes we can. If you cant find what you are looking for on the website get in touch. We have valve switch boes for all zoned and safe areas including LED visual indication.

Maybe. Give us a call to find out.
No.
Most definitely. We will require some more information. Drop us an email or get in touch on the blower.
Yes we can. Plane label or with a big bow. Send us a copy of your delivery note and we will fix it to the box. Jop done.
We will need to talk to Big Tony. If he says you're good for the debt then everything is in order. You can apply for this on the product page or ask for Big Tony when you get in touch.
Collections are welcomed. Give us a call in advance and we can get you a time that suits.

Need More Dimensions?

No time for fancy software or your tekkers are just pretty substandard? We offer a full technical drawing service for our actuated valves. The Artists are ready to draw. Tell us what you need.

4-20mA Control Available On This Product

The Festo CMSX Series is an Electro-Pneumatic control unit that allows the Actuator to incrementally adjust the Valve's position between the fully open and closed cycle. Product variants are available for spring return and double acting setups with feedback and safety settings. Ask our team today about how the CMSX can help with your process requirements.

Festo DFPD Actuator Videos

Request more information or Advice

Please feel free to request information and advice using the form below or call us on 0151 541 8674
