Linear Valves

Linear valves are a type of control valve that regulate flow by the linear movement of a closure element—such as a plug, disk, or diaphragm—toward or away from a seat. Unlike rotary valves that operate with a quarter-turn motion, linear valves provide gradual, precise control over flow rates, making them ideal for modulating applications where accuracy is critical. Common types of linear valves include globe valves, diaphragm valves, and pinch valves, each suited to different fluid types, pressures, and operating environments.

Key Features

Key features and benefits of Linear Valves.
1

Key Features

Linear valves offer highly accurate modulation by adjusting the position of the valve plug or disk in small increments. This ensures stable process conditions and consistent output in sensitive applications.
2

Key Features

These valves are designed for gradual opening and closing, making them ideal for throttling and regulating flow over a wide range. This helps prevent pressure surges and flow fluctuations in critical systems.
3

Key Features

Linear valves can handle liquids, gases, steam, and slurries, even in corrosive or high-temperature environments. Their design allows compatibility with a broad range of process media.
4

Key Features

Available with pneumatic, electric, or hydraulic actuators, linear valves can be easily automated for integration into process control systems. This enhances safety, efficiency, and remote operation capability.
5

Key Features

The linear motion reduces rotational friction and wear, extending the life of valve seats and internals. This lowers maintenance costs and improves long-term reliability.
6

Key Features

Linear valves come in globe, diaphragm, and pinch types to suit different application needs. This flexibility allows users to select the ideal design based on pressure, flow, and media characteristics.

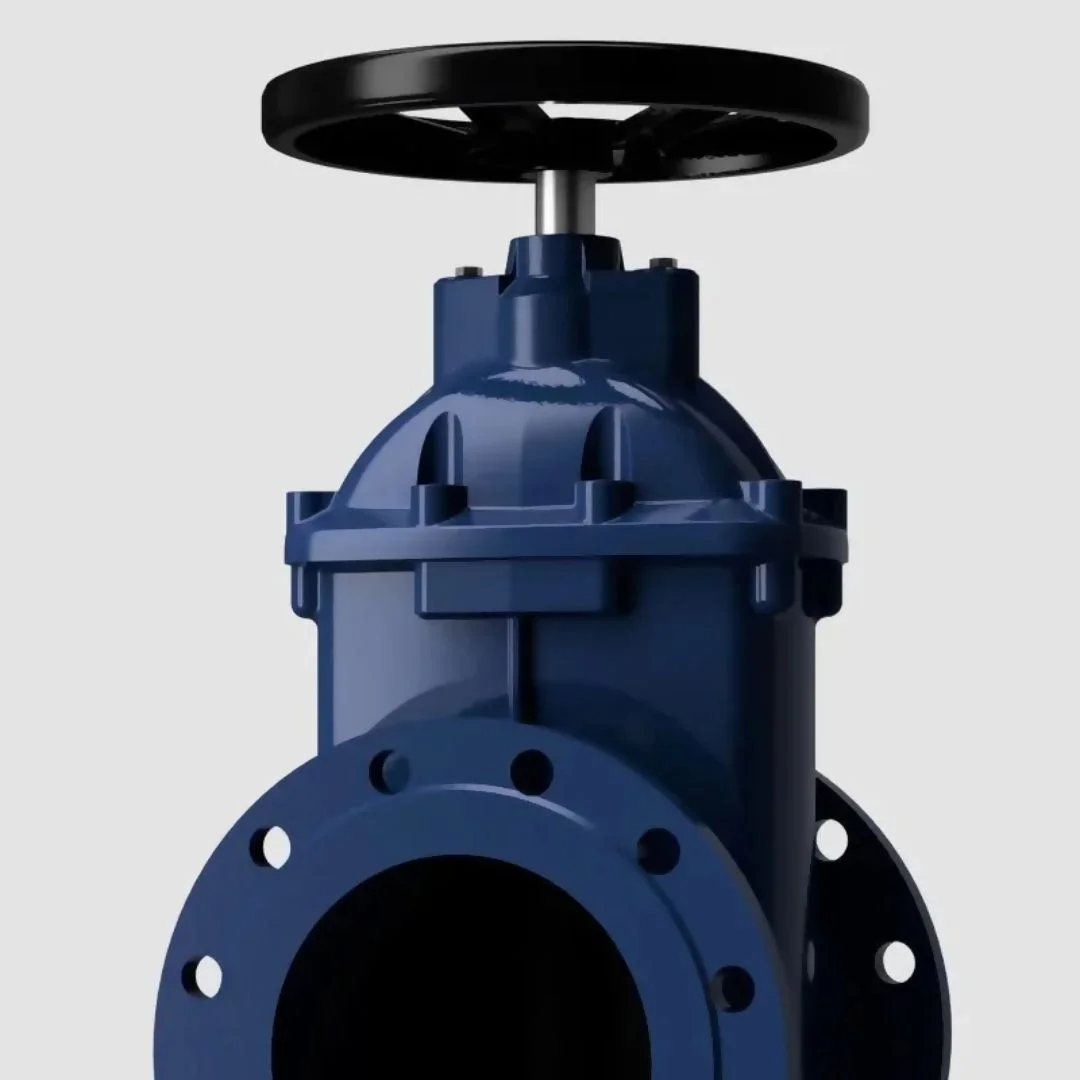

Gate Valves

Gate valves are widely used across a range of industries due to their simple yet effective operation. They function by raising or lowering a flat or wedge-shaped disc—often referred to as the "gate"—which moves perpendicularly to the flow of the media. When fully open, gate valves provide an unobstructed, straight-through flow path, resulting in minimal pressure drop and making them ideal for isolating flow in both liquid and gas systems.

Product Ranges: Slurry Tanker, Brass, Bronze, Cast / Ductile Iron, & WRAS Approved
Applications: Potable/Waste Water, Cooling Systems, Oil, Gases, Air, Farming & Agriculture
Size Range: 1/4" to 64"
Find Out More

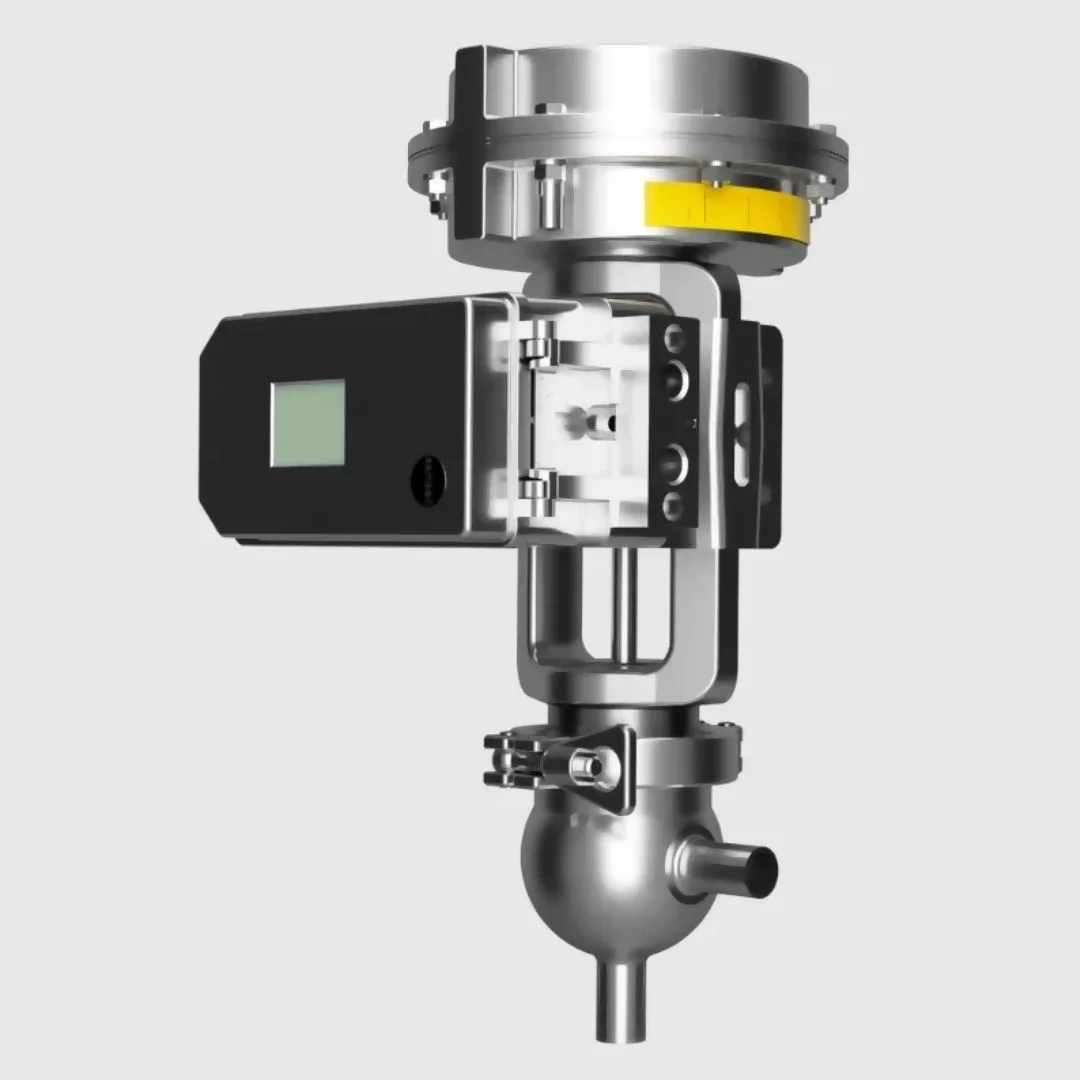

Globe Valves

Globe valves are designed to regulate flow with precision, offering both reliable shut-off and accurate throttling capabilities within pipeline systems. Their distinctive spherical body and internal plug mechanism allow for fine control over flow rates, making them ideal for applications that demand consistent performance and adjustability. Commonly found in steam systems, chemical plants, and process control environments, globe valves are essential components in maintaining system stability and efficiency.

Product Ranges: Slurry Tanker, Brass, Bronze, Cast / Ductile Iron, & WRAS Approved
Applications: Potable/Waste Water, Cooling Systems, Oil, Gases, Air, Farming & Agriculture
Size Range: 1/4" to 64"
Find Out More

Plug Valves

Plug valves are robust, quarter-turn valves designed for fast and reliable isolation of flow in various pipeline systems. They operate using a cylindrical or tapered plug with a hole through the center, which aligns with the pipe to allow flow or rotates 90 degrees to block it. This simple mechanism ensures rapid shut-off, minimal pressure drop, and low maintenance, making plug valves a dependable choice in demanding environments.

As critical elements in fluid handling and process automation, they contribute to safe, continuous operation across a wide range of industries. We offer a carefully curated selection of globe valves from leading manufacturers such as LVF, Fluval, SAMSON, and more — ensuring durability, compatibility, and performance. Explore our range today to find the right fit for your system.

Find Out More

Needle Valves

Needle valves are precision-engineered flow control devices designed to provide accurate regulation of fluids and gases in low to high-pressure systems. They feature a slender, tapered needle-like plunger that moves into a matching seat to finely adjust flow rates, making them ideal for applications requiring precise control rather than quick shut-off. The gradual closing mechanism also reduces the risk of system shock or surges.

These valves are commonly used in instrumentation systems, calibration setups, chemical dosing, and gas sampling lines across industries such as oil & gas, laboratory research, power generation, and pharmaceuticals. Their compact size, leak-tight sealing, and ability to handle a wide range of pressures and temperatures make them essential components in fluid handling and measurement systems where accuracy and control are critical.

Find Out More

Diaphragm Valves

Diaphragm valves are versatile flow control devices that use a flexible diaphragm to regulate or isolate fluid flow within a system. When actuated, the diaphragm is pressed against a weir or seat to close the valve, providing a leak-tight seal that is particularly well-suited for handling corrosive, abrasive, or hygienic media. Their straight-through flow path when open ensures minimal turbulence and pressure drop, making them ideal for sensitive process applications.

Commonly used in industries such as pharmaceuticals, food and beverage, water treatment, and chemical processing, diaphragm valves offer exceptional cleanliness, easy maintenance, and compatibility with aggressive or particulate-laden fluids. With no internal cavities and minimal dead space, they are especially valued in sterile and sanitary systems, ensuring contamination-free operation and reliable process control.

Find Out More

Why Are Linear Valves Important?

Linear valves are vital in industrial systems because they offer precise, repeatable control over fluid flow, pressure, and temperature—essential for maintaining process stability and product quality. In applications where small changes in flow can have significant effects—such as in chemical dosing, steam regulation, or pharmaceutical manufacturing—linear valves ensure smooth modulation without sudden surges or drops, reducing the risk of process disruptions.

Their ability to handle a wide range of media, including corrosive fluids, high-pressure gases, and high-temperature steam, makes them versatile across many industries. Additionally, when paired with automated actuators and positioners, linear valves contribute to increased system efficiency, remote monitoring, and safer operation in hazardous or hard-to-reach environments. Their reliability, accuracy, and adaptability make them an essential component in critical process control systems.

Where Are Linear Valves Used?

Linear valves are used across a wide range of industries where precise flow regulation is essential. In the chemical and petrochemical sectors, they control the flow of aggressive or reactive fluids in dosing, blending, and reaction processes. In power generation, they manage the delivery of steam and cooling water with high accuracy to ensure efficient energy output and system safety.

You’ll also find linear valves in pharmaceutical and food & beverage production, where maintaining consistent pressure and flow is crucial for quality control and compliance with hygiene standards. In water treatment facilities, they regulate filtration stages and chemical dosing with precision. Additionally, linear valves are widely used in HVAC systems, pulp and paper plants, and refineries, supporting both modulating control and shut-off duties in complex process environments.

Not sure which linear valve is right for your application?

No problem — our team is here to help. Whether you're dealing with steam, chemicals, or water, we’ll guide you to the best solution based on your system requirements.
Get in touch

Industries

Frequently Asked Questions

A linear valve controls flow by moving a closure element (like a plug or disc) in a straight line toward or away from a seat. This motion allows for precise regulation of flow, pressure, or temperature.

Linear valves use up-and-down motion to open or close, while rotary valves operate with a quarter-turn. Linear valves are typically better for fine control, whereas rotary valves are faster acting.

Common types include globe valves, diaphragm valves, pinch valves, and gate valves. Each is suited to different media, pressures, and control requirements.

They are used in industries like chemical processing, power generation, pharmaceuticals, water treatment, and food and beverage. Any application requiring precise flow regulation can benefit from linear valves.

Yes, many linear valve designs are suitable for high-pressure and high-temperature environments. Material selection and construction type determine pressure tolerance.

Absolutely. Their design allows for smooth and gradual control, making them ideal for modulating and throttling duties.

They can be made from stainless steel, carbon steel, brass, plastic, or other corrosion-resistant alloys. Material choice depends on the fluid and operating conditions.

Yes, they can be fitted with pneumatic, electric, or hydraulic actuators. This allows for remote operation and integration into control systems.

Not typically. They are designed for durability, and many models have replaceable components and wear-resistant internals to extend service life.

Yes, especially when constructed from resistant materials or fitted with liners such as PTFE. Proper valve selection ensures compatibility with corrosive media.

Their key benefits include precise control, reliability, compatibility with various media, and long service life. They're ideal for critical applications where accuracy matters.

Consider factors like flow rate, pressure, temperature, media type, and control method. Consulting with a valve specialist ensures you select the most suitable valve for your needs.
