Spring Check Valves are designed to prevent backflow and ensure reliable performance in various applications. These valves utilise a spring mechanism to allow fluid to flow in one direction while automatically closing to prevent reverse flow. Made from durable materials, Syveco valves are suitable for use in demanding environments, offering a long lifespan and minimal maintenance. Their compact design makes them easy to install, and they are available in a range of sizes to meet different system requirements.

Key features and benefits of Spring Check Valves.

Key Features

Spring check valves are designed for automatic operation, utilising a spring-loaded mechanism to regulate fluid flow. When the fluid pressure on the inlet side surpasses the force of the spring, the valve opens, allowing flow in the desired direction.

Key Features

The compact design of spring check valves makes them ideal for applications where space is at a premium. Their lightweight and space-efficient structure allows for installation in various orientations, such as vertical or horizontal piping systems, without compromising performance.

Key Features

Spring check valves offer reliable backflow prevention due to their effective sealing capabilities. The spring-loaded mechanism ensures a tight seal when the valve is closed, providing consistent backflow protection even at low pressures.

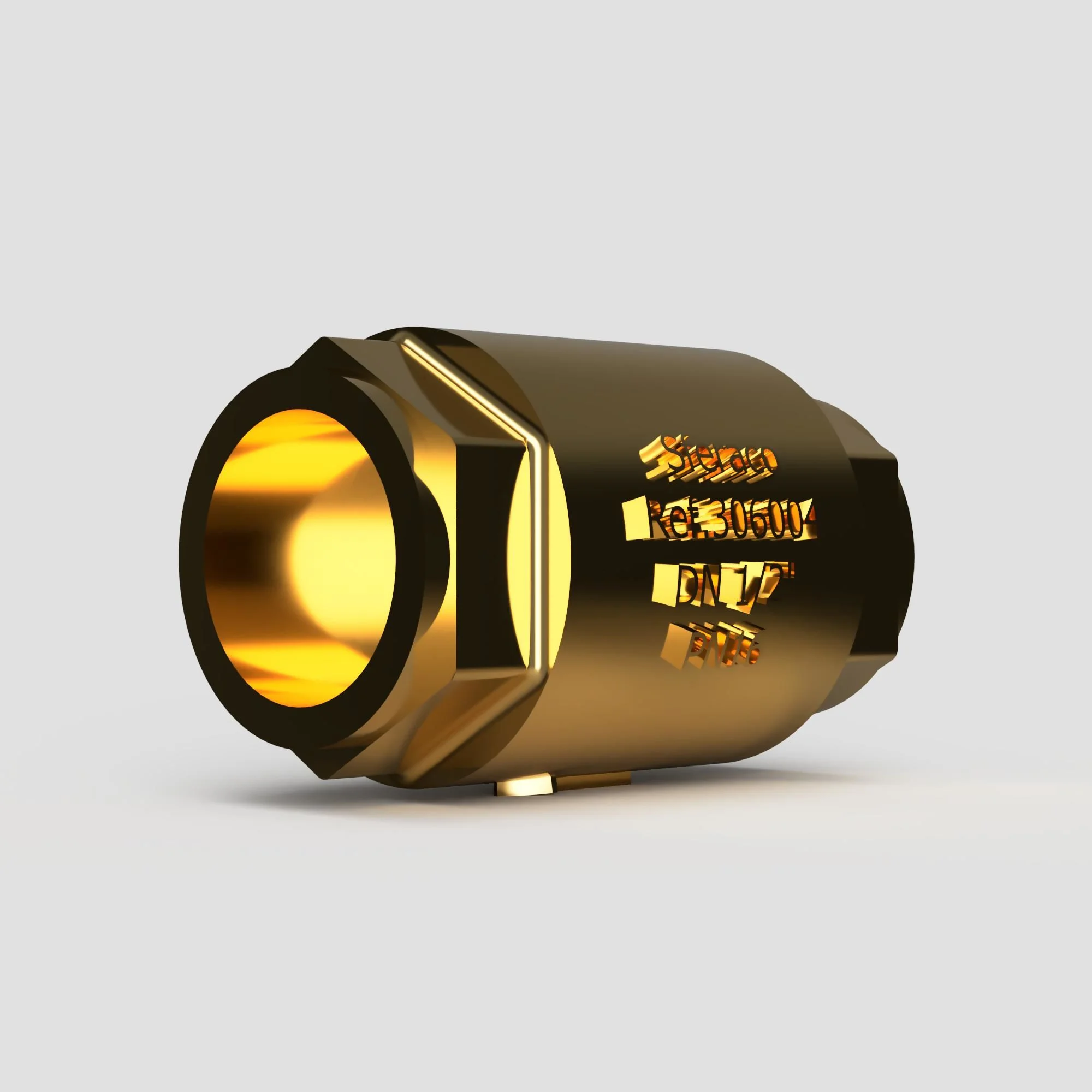

The 306 Double Guide Check Valve is crafted from durable brass W617N-4MS, offering excellent resistance to corrosion and wear, ensuring a long service life. Designed with female-female threaded connections, it allows for easy installation in various piping systems. Its ACS (Attestation de Conformité Sanitaire) certification guarantees that the valve meets strict sanitary standards, making it suitable for use in potable water systems.

A key feature of this check valve is its nylon obturator, which provides a reliable sealing mechanism, ensuring efficient backflow prevention. The valve can be installed in any orientation, providing flexibility in system design and maintenance. This versatility, combined with its robust construction, makes the 306 Double Guide Check Valve ideal for a wide range of applications, including residential, commercial, and industrial water systems.

Size Range:	3/8" to 4" (DN10 to DN100")
PS (Bar) Range:	8 to 16
Body Material:	CW617N Brass
Seat Material:	NBR
Temperature Range:	-10°C to 100°C

Find Out More

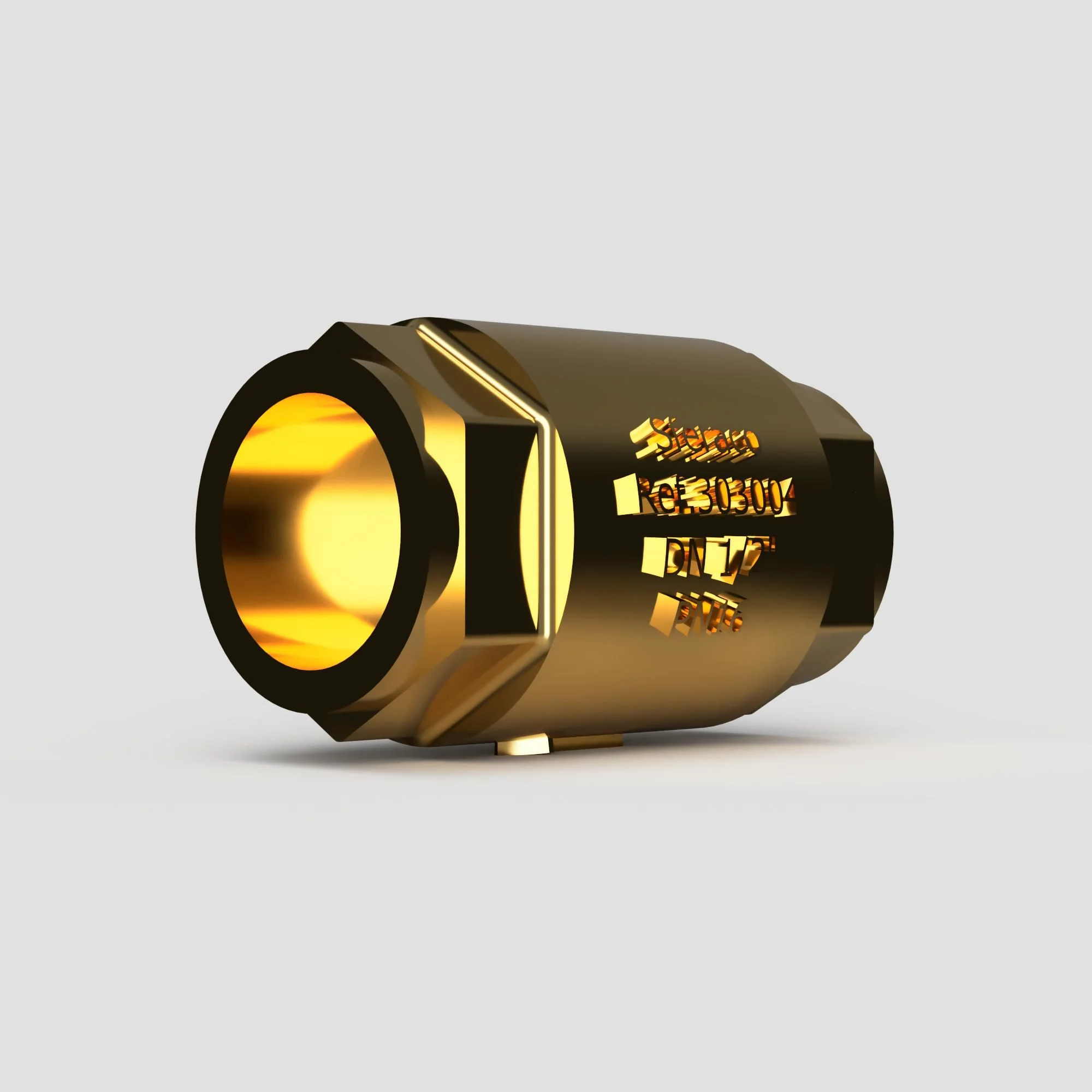

The 303 check valve is designed for versatile and reliable use, making it ideal for a variety of applications. Constructed from high-quality CW617N-4MS brass, it ensures durability and resistance to corrosion, providing a long-lasting solution in demanding environments. The double guide mechanism enhances its operational stability, allowing for smoother and more consistent flow control, reducing the chances of malfunction.

One of the key features of the 303 check valve is its nylon obturator, which contributes to efficient sealing and prevents backflow. The lightweight yet strong material helps maintain performance without compromising the structural integrity of the valve. Additionally, the valve holds the prestigious ACS (Attestation de Conformité Sanitaire) certification, ensuring its compliance with strict hygiene and safety standards for use in potable water systems.

Size Range:	3/8" to 4" (DN10 to DN100")
PS (Bar) Range:	8 to 16
Body Material:	CW617N Brass
Seat Material:	NBR
Temperature Range:	-10°C to 110°C

Find Out More

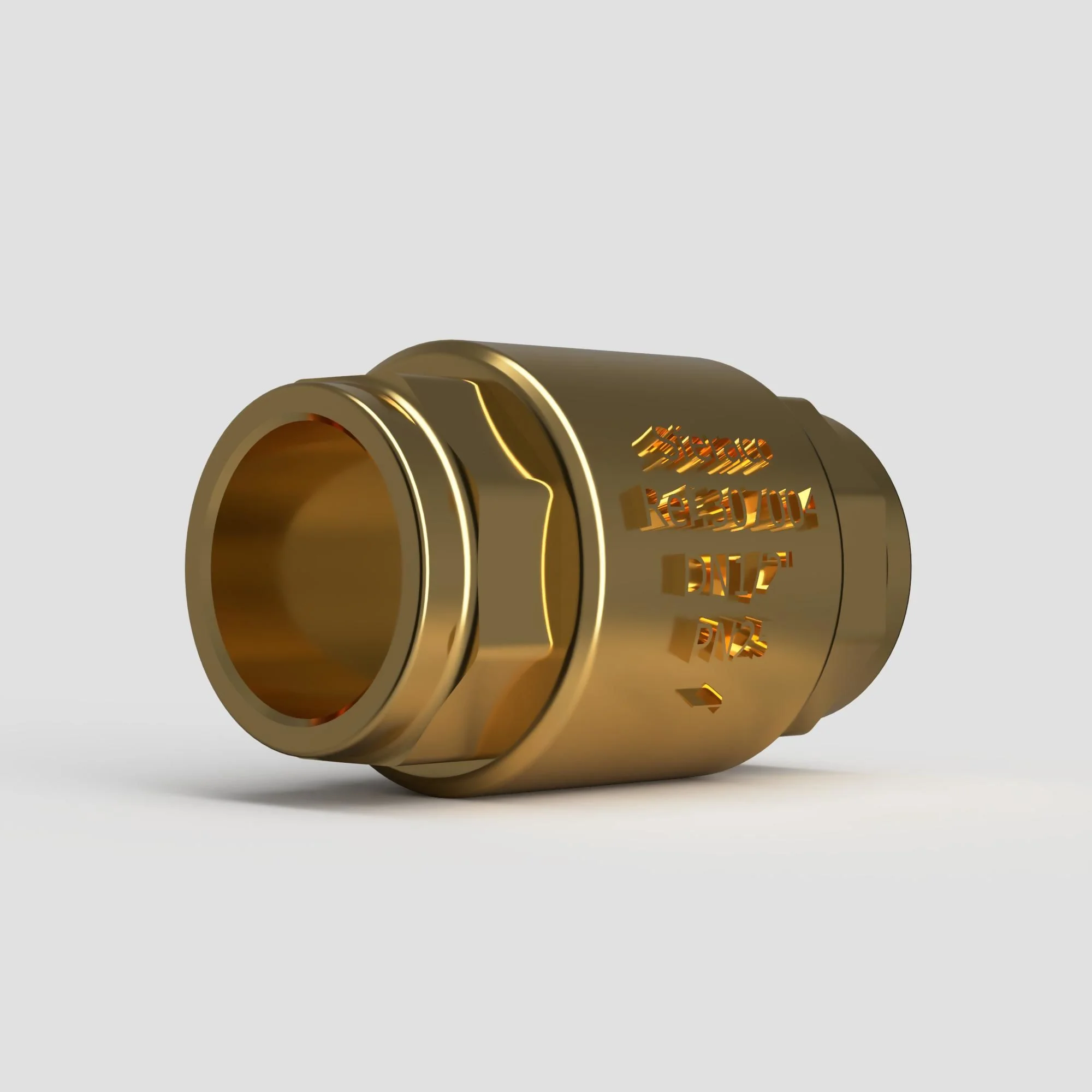

The 307 double guide check valve, constructed from high-quality Brass CW617N-4MS, is a versatile and reliable solution designed to ensure fluid flow in one direction while preventing backflow. Its robust construction is further enhanced by ACS (Attestation de Conformité Sanitaire) certification, ensuring compliance with health and safety standards for potable water systems.

Featuring female-female threaded connections, the valve offers seamless integration into various piping systems, making installation straightforward. The brass obturator, known for its strength and durability, provides a reliable sealing mechanism, preventing leakage and maintaining optimal flow control. One of the key advantages of the 307 double guide check valve is its flexibility in installation, as it can be mounted in any position—vertical, horizontal, or at an angle—without compromising performance.

Size Range:	3/8" to 4" (DN10 to DN100")
PS (Bar) Range:	12 to 25
Body Material:	CW617N Brass
Seat Material:	NBR
Temperature Range:	-10°C to 100°C

Find Out More

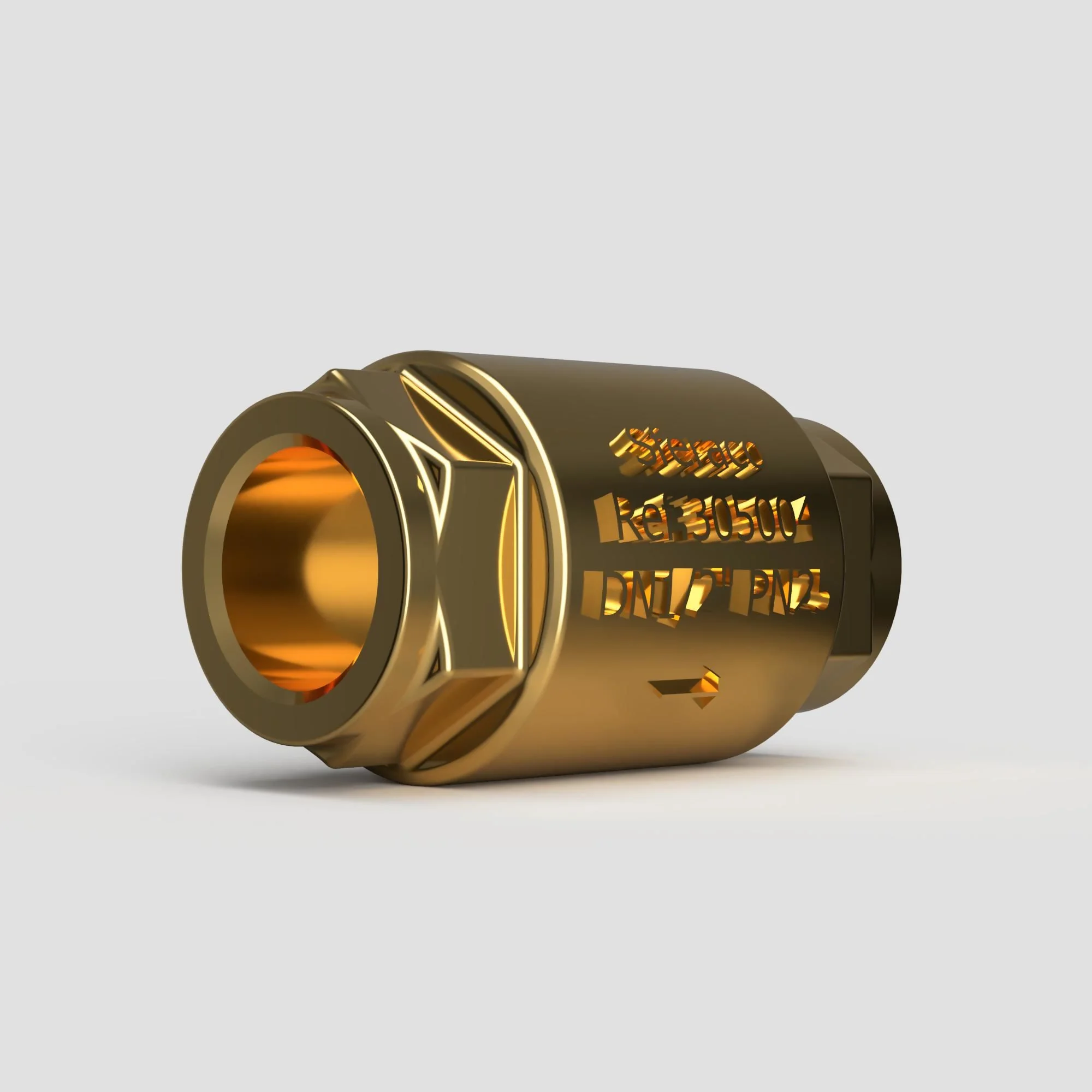

The 305 check valve is designed for versatility and durability, featuring a double guide mechanism that ensures smooth and reliable operation. Constructed from titrated brass CW617N-4MS, a high-quality material known for its corrosion resistance and mechanical strength, this valve is built to withstand demanding conditions. It comes equipped with female-female connections, making installation straightforward in a variety of applications.

A key feature of this check valve is its ACS (Attestation de Conformité Sanitaire) certification, which guarantees that the materials used are safe for use in potable water systems, ensuring compliance with health and safety regulations. The obturator, made from a combination of brass and stainless steel, further enhances the valve's reliability by providing a robust sealing mechanism that prevents backflow. Its design allows for installation in any orientation, making it a highly flexible option for both commercial and residential plumbing systems.

Size Range:	3/8" to 4" (DN10 to DN100")
PS (Bar) Range:	12 to 25
Body Material:	CW617N Brass
Seat Material:	NBR
Temperature Range:	-10°C to 100°C

Find Out More

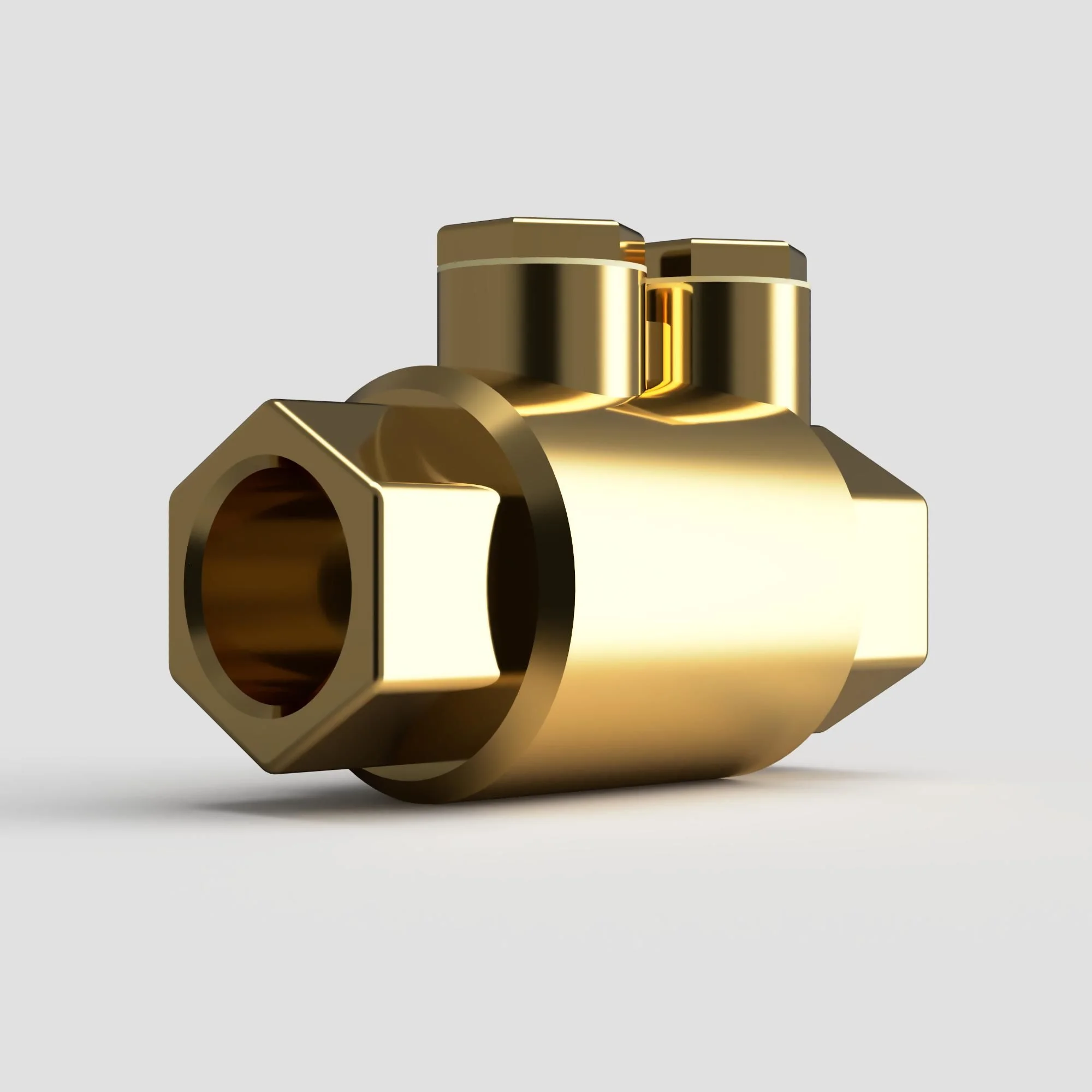

The 315 check valve is a versatile and robust component designed for a wide range of applications, particularly in systems requiring fluid control. Constructed from titled brass CW617N-4MS, this valve ensures durability and resistance to corrosion, making it suitable for both potable water and industrial applications. The double guide feature enhances the valve's stability and reliability, preventing misalignment during operation and ensuring a smooth, efficient flow of fluids.

The valve is equipped with a BSP female-female fitting, allowing for easy integration into existing pipework. It holds an ACS (Attestation de Conformité Sanitaire) certification, ensuring its compliance with stringent sanitary standards, making it safe for use in potable water systems.

Size Range:	3/8" to 2" (DN10 to DN50")
PS (Bar) Range:	2 to 10
Body Material:	CW617N Brass
Seat Material:	NBR
Temperature Range:	-10°C to 100°C

Find Out More

A check valve is a one-way valve that allows fluid to flow in one direction while preventing backflow. It operates using a swinging, lifting, or tilting disc or a spring-loaded mechanism to control the direction of flow.

Check valves find applications in a variety of industries, including water and wastewater systems, oil and gas pipelines, HVAC systems, and industrial processes.

Check valves provide reliable and continuous operation, preventing reverse flow, minimising the risk of contamination, and ensuring system integrity without the need for external power sources.

Yes, check valves come in various types, including swing check valves, lift check valves, dual-plate check valves, and more, each designed for specific applications and conditions.

Check valves generally require minimal maintenance but should undergo periodic inspections and potential lubrication to ensure proper functioning.

Most check valves are designed to function in both horizontal and vertical orientations, but it's essential to follow the manufacturer's installation guidelines for optimal performance.

The cracking pressure is the minimum pressure at which a check valve starts to open. It varies based on the valve's design and specifications.

Check valves can be designed for high-pressure applications, but their suitability depends on the valve's specific pressure rating and construction materials.

Check valves are primarily designed to prevent backflow and are not intended for flow rate or pressure control. Control valves are typically used for such purposes.

Yes, Actuation Valve offers sustainable spares and replacement parts for ongoing maintenance schedules.

Yes, check valves can be used for both liquids and gases. The choice of valve type and material should be made based on the specific fluid and application requirements.
