Marine cooling water circuits remove excess heat from engines, pumps, and auxiliary equipment on ships. They use seawater or freshwater as the cooling medium to maintain safe operating temperatures and prevent equipment failure.

Butterfly valves, ball valves, gate valves, check valves, and strainers are the most common. These control, isolate, and protect the cooling water flow.

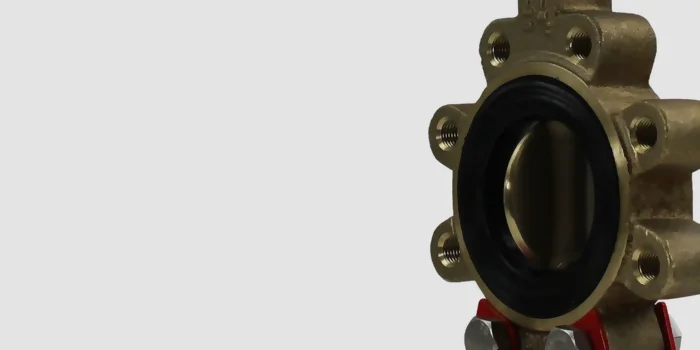

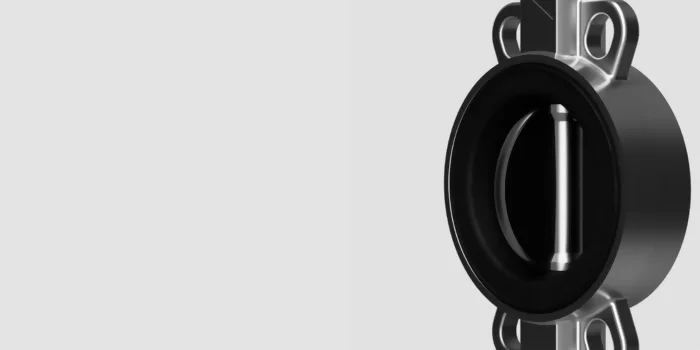

Butterfly valves are lightweight, compact, and handle large flow rates efficiently. 316 stainless steel and aluminium bronze butterfly valves are particularly suitable for seawater applications.

Ball valves, especially duplex stainless steel designs, are ideal for smaller bore lines where full-bore, unrestricted flow is required, such as connections to heat exchangers or auxiliary circuits.

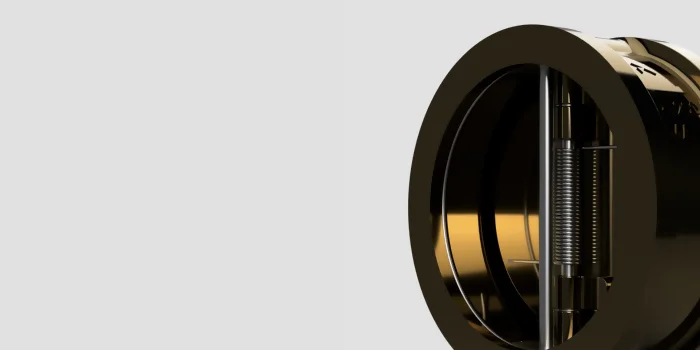

Check valves prevent reverse flow, protecting pumps and heat exchangers from backflow damage. Aluminium bronze check valves are often specified for seawater service due to their durability.

Yes. 316 stainless steel gate valves are used where bubble-tight isolation is required, particularly in large bore lines. However, butterfly valves are more common due to their lower weight and easier operation.

Aluminium bronze offers excellent resistance to saltwater corrosion, erosion, and biofouling, making it one of the most reliable materials for valves in continuous seawater exposure.

Duplex stainless steel strainers filter debris, sediment, and marine growth from seawater before it enters pumps or heat exchangers. This protects equipment from clogging and damage.

Yes, in many vessels. Actuated butterfly and ball valves are fitted with electric, pneumatic, or hydraulic actuators for automated flow control, improving efficiency and safety.

Using unsuitable materials, such as carbon steel, can lead to rapid corrosion, pitting, and leakage in seawater service. This reduces reliability and increases costly maintenance.

The freshwater circuit cools the engine directly, while the seawater circuit absorbs heat from the freshwater via heat exchangers. Valves in the seawater circuit must be corrosion-resistant alloys to withstand harsh marine conditions.

Regular inspection for corrosion, seat wear, and biofouling is vital. Butterfly valve seats and ball valve seals should be replaced as needed. Strainers must be cleaned routinely to maintain unrestricted water flow.
