Needle Valves

Needle valves are precision control valves engineered to provide accurate regulation of flow in fluid and gas systems. They feature a slender, tapered needle-like plunger that fits precisely into a conical seat, allowing for fine adjustment of flow rates. This makes them ideal for low flow applications where tight control is essential, such as in instrumentation lines, sampling systems, and calibration processes. The gradual threading action enables operators to make incremental adjustments, delivering exceptional control over pressure and flow.

Key Features

Key features and benefits of Needle Valves.
1

Key Features

Needle valves are specifically designed for accurate regulation of flow, making them ideal for low-rate, fine-tuning applications. The threaded stem allows for gradual opening and closing, enabling smooth adjustments.
2

Key Features

The tapered needle and matching seat provide a tight, reliable seal when closed. This design minimises the risk of leaks, especially in high-pressure or critical systems.
3

Key Features

Most needle valves are built to withstand high-pressure environments, especially when constructed from stainless steel or carbon steel. This makes them suitable for gas, steam, and liquid systems in industrial settings.
4

Key Features

Needle valves have a small footprint, making them easy to install in tight spaces or compact panels. Despite their size, they offer robust construction that can handle harsh conditions and long-term use.
5

Key Features

Available in materials like brass, stainless steel, and plastic, needle valves can be selected based on media compatibility. This ensures resistance to corrosion, chemical attack, and thermal stress.
6

Key Features

Needle valves are a go-to choice for instrumentation systems that require consistent and accurate pressure control. They are commonly used with gauges, sensors, and flow meters to maintain system accuracy.

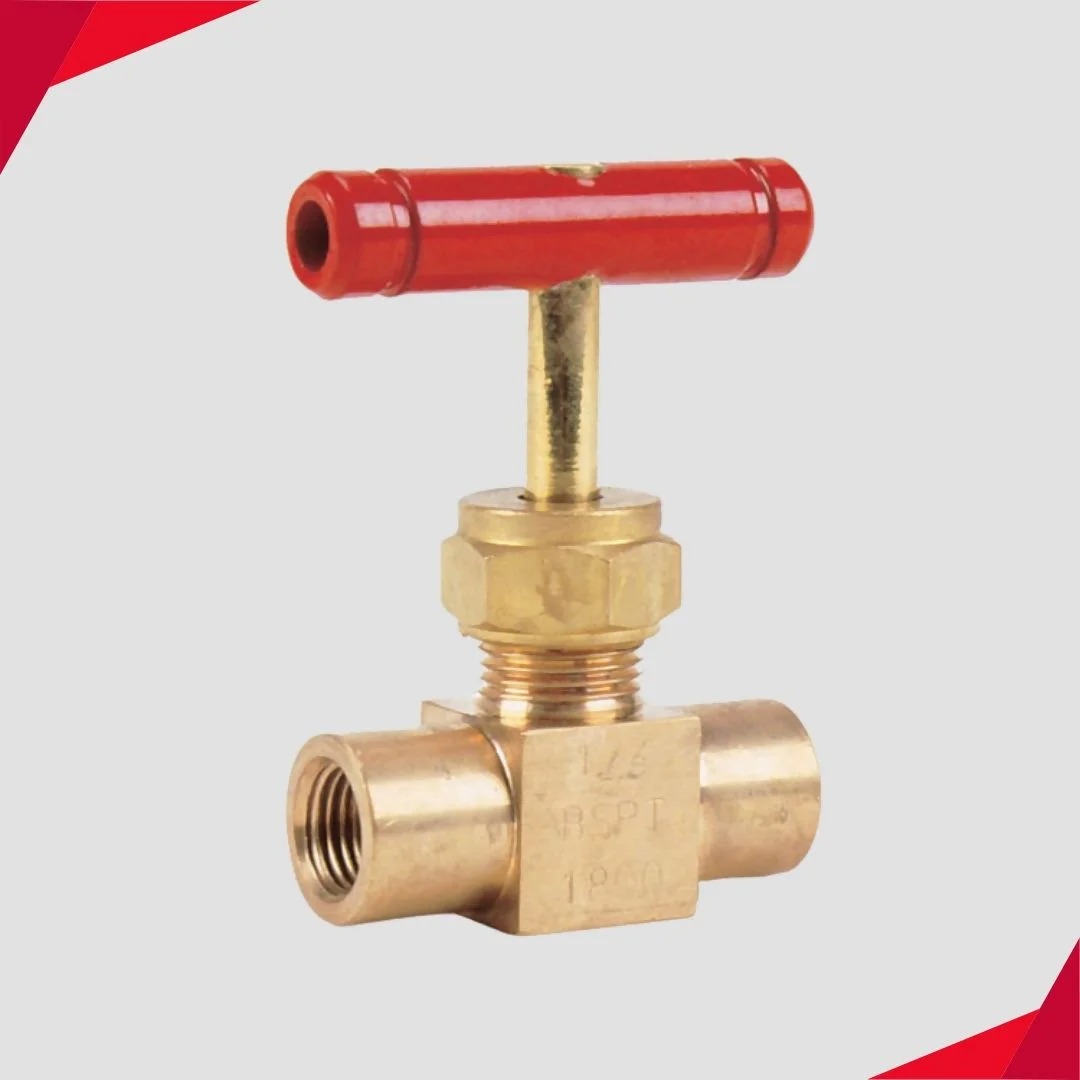

Brass BSPP Needle Valves - 3000 PSI

Our Brass BSPP Needle Valves are precision-engineered for reliable flow control in high-pressure applications up to 3000 PSI. Designed with a fine-threaded stem and tapered needle, these valves allow operators to make gradual, accurate adjustments to media flow. The BSPP (British Standard Parallel Pipe) female threads provide a secure and leak-resistant connection, making them suitable for use across a wide range of industrial systems.

Size range: 1/8" / 1/4" / 3/8" / 1/2"
Pressure rating: 3000 PSI
Connection: BSPP
Material: Brass
Applictions: Hydraulic and Pneumatic Systems, Fuel Lines, Oil Systems and more
Find Out More

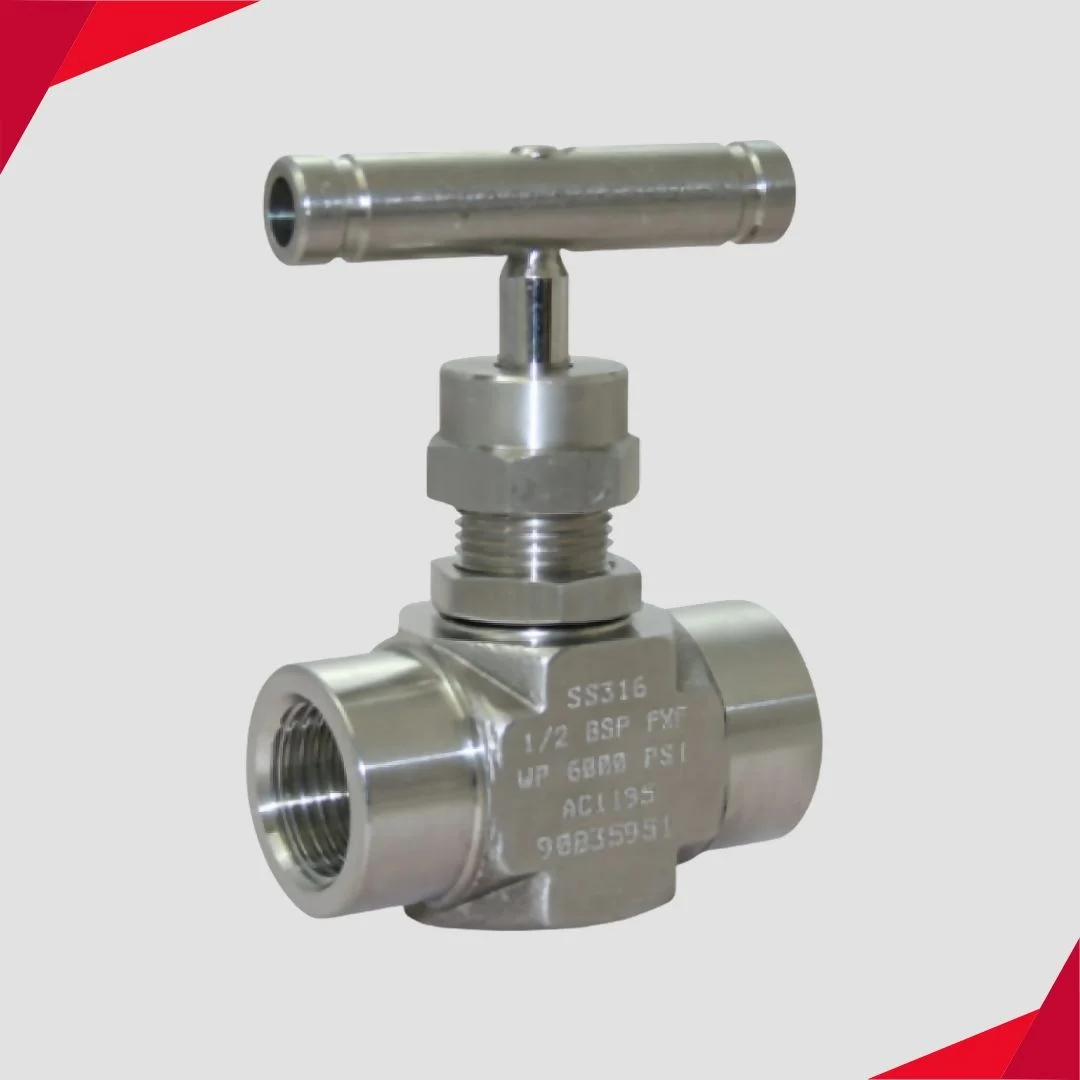

Stainless Steel Needle Valves – 6000 PSI

Stainless steel needle valves rated for 6000 PSI are precision control valves designed for high-pressure applications where accurate flow regulation is critical. These valves feature a finely threaded stem and tapered needle point, allowing operators to make minute adjustments to flow rates with confidence. Their robust construction using 316 stainless steel ensures excellent resistance to corrosion, pressure fatigue, and harsh operating conditions.

Size range: 1/4" / 3/8" / 1/2" / 3/4" / 1"
Pressure rating: 6000 PSI
Connection: BSPP / BSPT / NPT
Material: Stainless Steel
Applictions: Instrumentation Lines, Hydraulic Systems, Chemical & Petrochemical Plants, Gas Distribution Panels
Find Out More

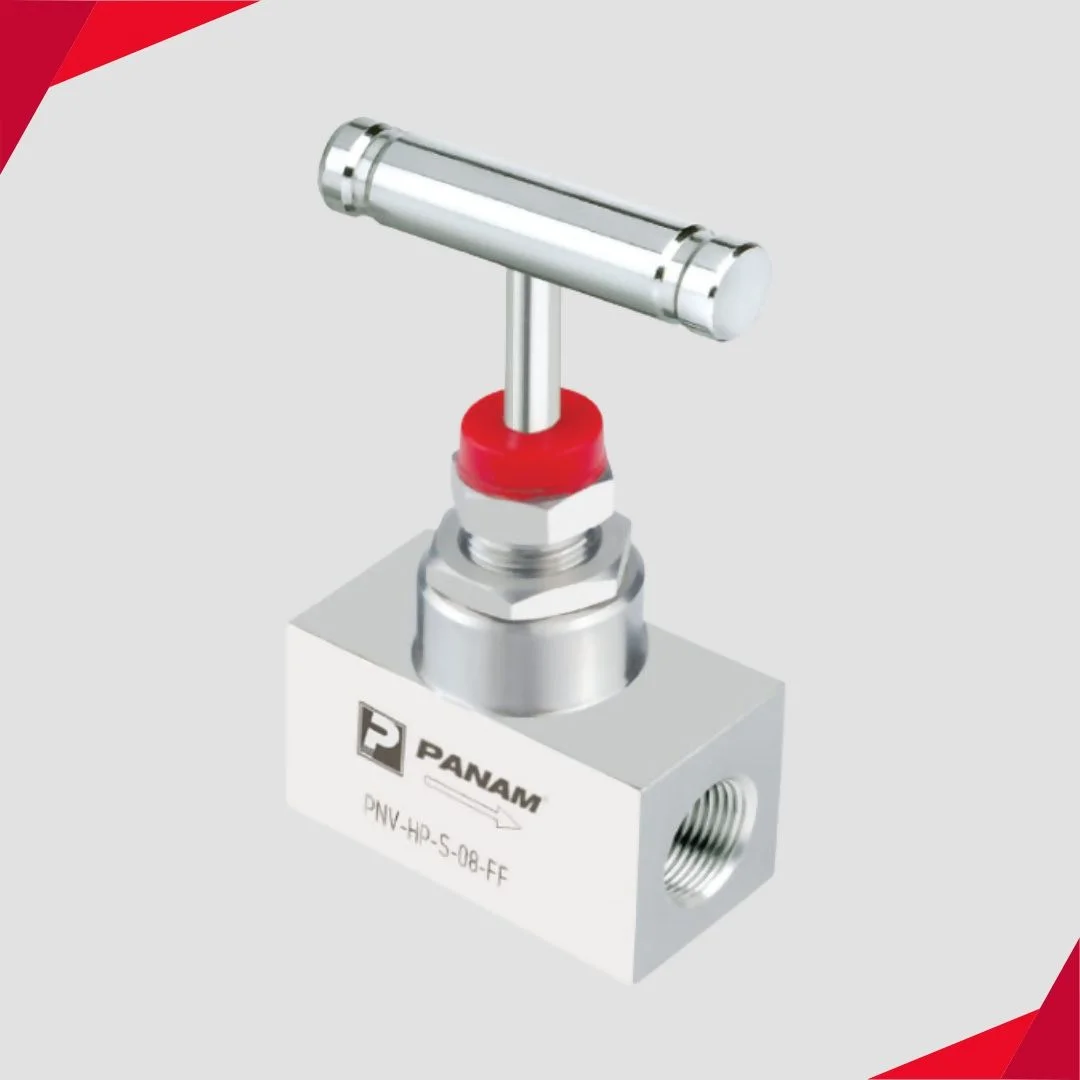

Stainless Steel Needle Valves - 10000 PSI

Stainless Steel Needle Valves rated up to 10,000 PSI are engineered for high-pressure instrumentation and control systems, where precise flow regulation and leak-tight shutoff are critical. These valves feature a fine-threaded stem and a narrow needle-shaped plunger that allows for accurate metering of flow, even under extreme pressure conditions. Constructed from corrosion-resistant 316 stainless steel, they are ideally suited for aggressive media and demanding applications across industries like oil & gas, chemical processing, and laboratory environments.

Size range: 1/4" / 3/8" / 1/2"
Pressure rating: 10000 PSI
Connection: BSPP / BSPT / NPT
Material: Stainless Steel
Applictions: Oil & Gas, Chemical & Petrochemical Plants, Power Generation
Find Out More

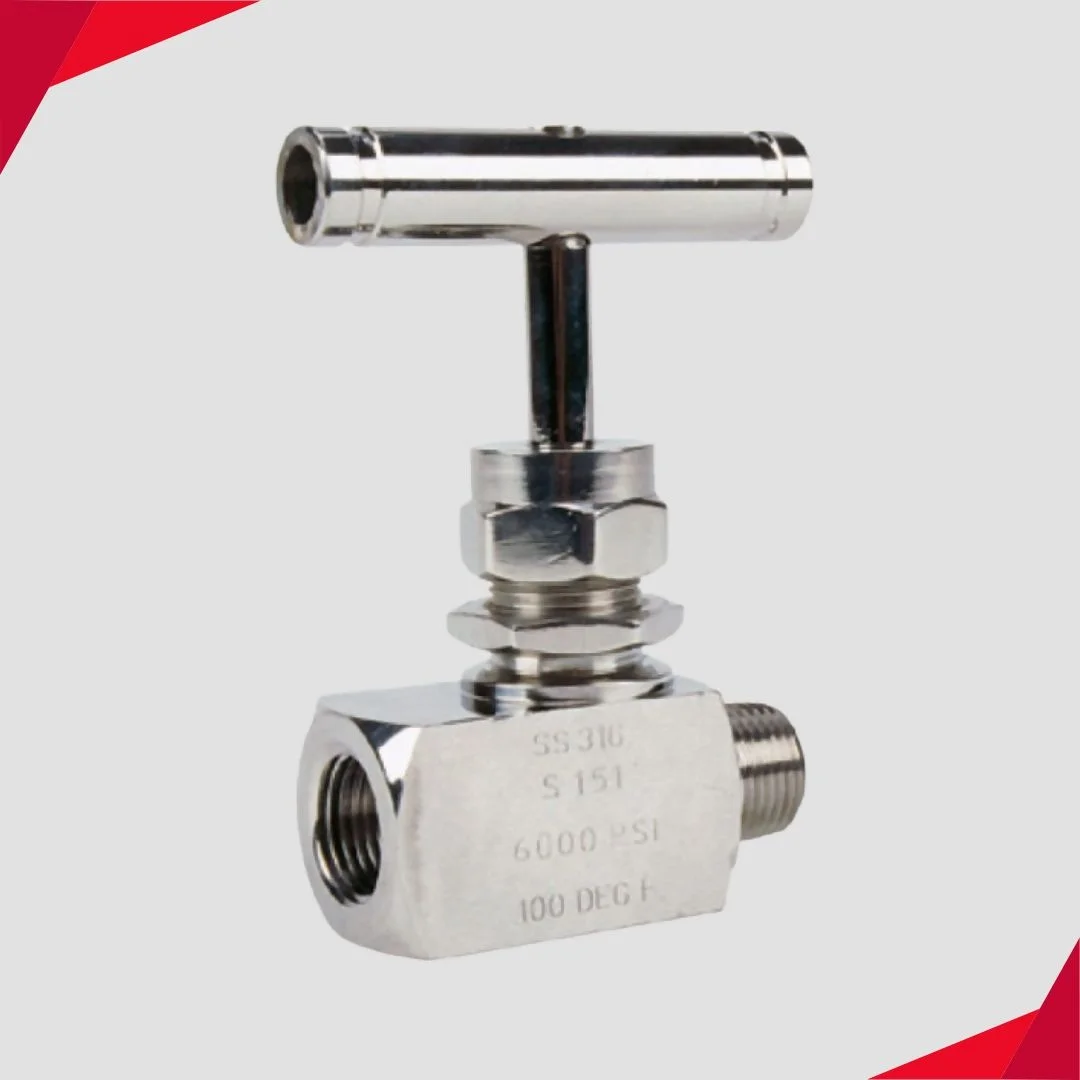

Stainless Steel Male x Female Needle Valves – 6000 PSI

Our Stainless Steel Male x Female Needle Valves – 6000 PSI offer precision control for high-pressure applications, making them ideal for industries that demand accurate flow regulation and leak-tight performance. Constructed from corrosion-resistant 316 stainless steel, these valves are designed to handle pressures up to 6000 PSI while maintaining reliability in harsh environments such as offshore, chemical processing, and instrumentation systems.

Size range: 1/4" / 3/8" / 1/2"
Pressure rating: 6000 PSI
Connection: BSPP Male x Female
Material: Stainless Steel
Applictions: Oil & Gas, Chemical & Petrochemical Plants, Power Generation
Find Out More

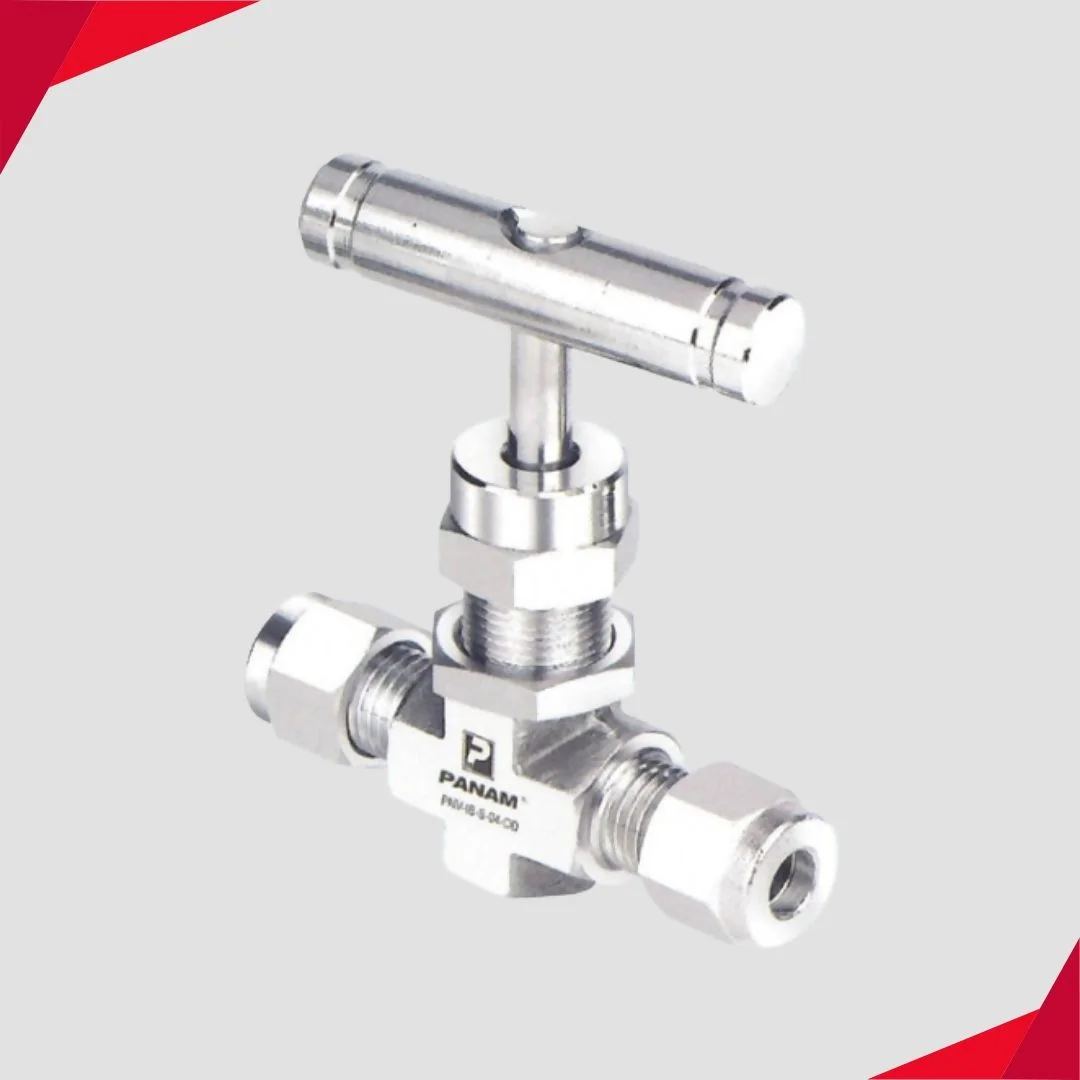

Stainless Steel Compression Ends Needle Valves – 6000 PSI

Our Stainless Steel Compression Ends Needle Valves are engineered for high-pressure applications up to 6000 PSI, offering precise flow control in critical instrumentation and process systems. Built from robust 316 stainless steel, these valves are designed to withstand corrosive environments, high temperatures, and demanding operating conditions. The compression end connections provide a secure, leak-tight seal for easy installation and reliable performance in gas or liquid systems.

Size range: 1/4" / 3/8" / 1/2"
Pressure rating: 6000 PSI
Connection: Compression Ends
Material: Stainless Steel
Applictions: Oil & Gas, Water Treatment Test & Calibration Equipment, Power Generation
Find Out More

Why Are These Important?

Needle valves are important because they provide the precision and reliability required in systems where exact flow control is critical. In many industrial and laboratory processes, even a small fluctuation in pressure or flow rate can compromise accuracy, efficiency, or safety. Needle valves allow for fine-tuned adjustments, enabling operators to achieve stable system conditions and avoid over-pressurisation, surges, or erratic flow. Their leak-tight sealing ensures that media remains contained within the system, protecting equipment and preventing product loss or contamination—especially important in gas, chemical, and high-purity applications. Their ability to handle high pressure while taking up minimal space makes them a practical and efficient solution for both panel-mounted instrumentation and field installations.

Where Would You Find Them?

You would typically find needle valves in systems where precise flow control is essential. These include instrumentation panels, pressure regulation setups, and sampling lines in industries like oil and gas, chemical processing, pharmaceuticals, and power generation. They are commonly used in laboratories, testing equipment, and calibration systems, where fine adjustments to fluid or gas flow are necessary. Needle valves are also found in steam systems, hydraulic circuits, and compressed gas systems, especially where accurate pressure control and leak-tight sealing are critical to safe and efficient operation. Whether installed in process plants or bench-top instrumentation setups, needle valves are key components wherever controlled, low-flow regulation is required.

Not sure which needle valve is right for your application?

Get in touch with our team today — we’re here to help you find the perfect fit.
Get in touch

Industries

Frequently Asked Questions

A needle valve is a type of valve used to precisely control flow in a pipeline, especially for low-flow applications. It uses a slender, tapered needle-shaped plunger that fits into a matching seat.

They are used to regulate flow in systems that require precise adjustments, such as instrumentation lines, sampling systems, and pressure control setups. They’re common in oil and gas, chemical, and lab environments.

Yes, many needle valves are designed to operate in high-pressure systems. Their robust construction and tight sealing capabilities make them ideal for demanding applications.

Absolutely. Needle valves work with both gases and liquids, offering precise control and leak-tight performance in either application.

They are typically made from stainless steel, brass, carbon steel, or plastics like PVC. The choice depends on the media type, pressure, and corrosion resistance needed.

Needle valves are operated manually using a handwheel or knob that turns a threaded stem. Turning the stem gradually raises or lowers the needle to adjust the flow.

Yes, needle valves can be fully closed to stop flow entirely. However, they are primarily designed for precise regulation rather than quick on/off service.

They offer fine flow control, excellent sealing, and compatibility with high-pressure systems. Their compact size and material versatility make them adaptable to many applications.

Needle valves are best for low to moderate flow rates where gradual and precise control is necessary. They are not ideal for high-flow or rapid shutoff applications.

Yes, due to their simple mechanical design, they require minimal maintenance. Regular inspection and occasional cleaning of the needle and seat help maintain performance.

You’ll find them in instrumentation panels, hydraulic systems, test equipment, gas supply lines, and laboratory setups. They’re especially useful where accurate flow or pressure measurement is required.

Yes, needle valves are specifically designed for throttling—allowing users to make fine adjustments to control flow with high precision. This makes them ideal for delicate or sensitive systems.

FAQ

Request more information or Advice

Please feel free to request information and advice using the form below or call us on 0151 547 1221
