Oil and Gas Flow Isolation and Shut-Off

Oil and gas flow isolation and shut-off are critical functions within upstream, midstream, and downstream operations, ensuring that pipelines, processing equipment, and storage systems can be safely controlled and protected during normal operation, maintenance, or emergency situations. In these environments, large volumes of hydrocarbons are transported under high pressure and often at elevated temperatures, meaning that reliable isolation of flow is essential to prevent leaks, protect personnel, and maintain operational safety. Flow isolation systems allow operators to completely stop or divert the movement of oil, gas, or associated fluids within a pipeline or processing facility, enabling sections of the system to be safely inspected, repaired, or shut down when required.

Key Features

Key features and benefits of valves for this application.
1

Key Features

Valves used in oil and gas isolation applications must operate reliably under extreme conditions, including high pressures and elevated temperatures. They are typically constructed from robust materials such as carbon steel, stainless steel, or specialised alloys to ensure strength, durability, and long-term performance in demanding environments.
2

Key Features

A critical feature of these valves is their ability to provide secure, leak-free shut-off. Effective sealing prevents hydrocarbons from escaping, reducing safety risks, environmental impact, and product loss. Designs such as ball valves and gate valves are commonly used because they provide reliable isolation when fully closed.
3

Key Features

Many valves in this sector are designed to work with pneumatic, hydraulic, or electric actuators. This allows them to be integrated into emergency shutdown (ESD) systems, enabling rapid remote operation and automatic shut-off when abnormal conditions or hazards are detected.

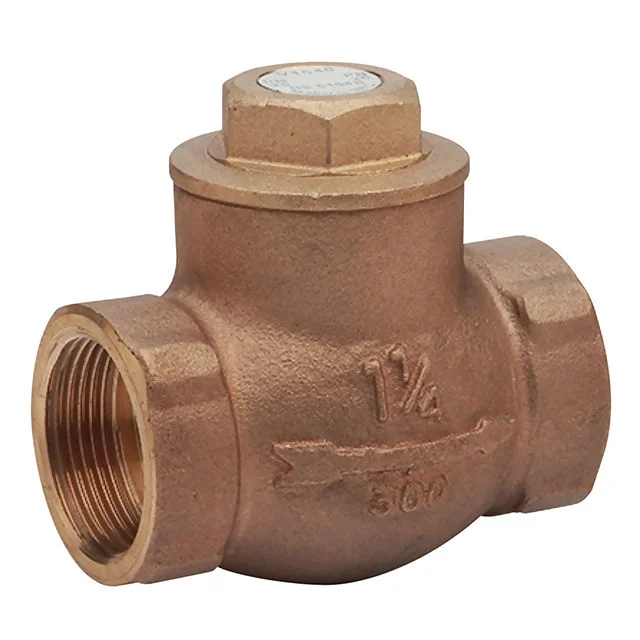

Bronze Check Valves

Elevate your fluid control systems with Leengate Bronze Check Valves, the epitome of reliability and durability in check valve technology. Crafted from high-quality bronze, these valves are engineered to deliver unwavering performance in a multitude of applications. Whether it's safeguarding your water supply systems, regulating industrial processes, or maintaining the integrity of your HVAC installations, these valves are your dependable choice.

Size Range: 1/2" to 4"
Pressure Ratings: PN16, PN25, PN32
End Connections: Screwed BSPP BS21, Screwed NPT, Screwed BSPT, Flanged PN16
Applications: Water, Gas, Air, Drinking Water, Waste Water
Find Out More

Colossus Manual High Performance Butterfly Valve Double Offset

High-performance Metal Seated Manual Butterfly Valves are designed for use in exceptionally harsh conditions with critical shutoff isolation and throttling control applications for both gases and liquids.  The aptly named Colossus is available in Double Eccentric Metal Seated, Double Eccentric PTFE Seated and Triple Eccentric Metal Seated body designs. These Firesafe Butterfly Valves are now more commonly being used over that of equivalent sized Gate, Globe & Ball Valves. The Colossus Series offers exceptional performance at an affordable price point, making them perfect for a wide range of industrial applications. These PTFE  and metal seated valves feature double offset construction which allows them to handle higher operating pressures.

Size Range: DN50-DN600 (2"-24")
Body Materials: Cast Carbon Steel A216 WCB, Stainless Steel CF8M
Disc Materials: Stainless Steel CF8M
Seat Materials: RPTFE Soft Seat, F-316L Stainless Steel Hard Seat, Stellite, Hard Chromium
Actuated Function: Lever Operated, Hand Wheel / Gear Box Operated, Extended / Extension Chain Wheel
Applications: Vacuum, Chemical, LPG/LNG, Hydrocarbons, Steam, Air, Bitumen, Corrosive, Thermal Oil
Find Out More

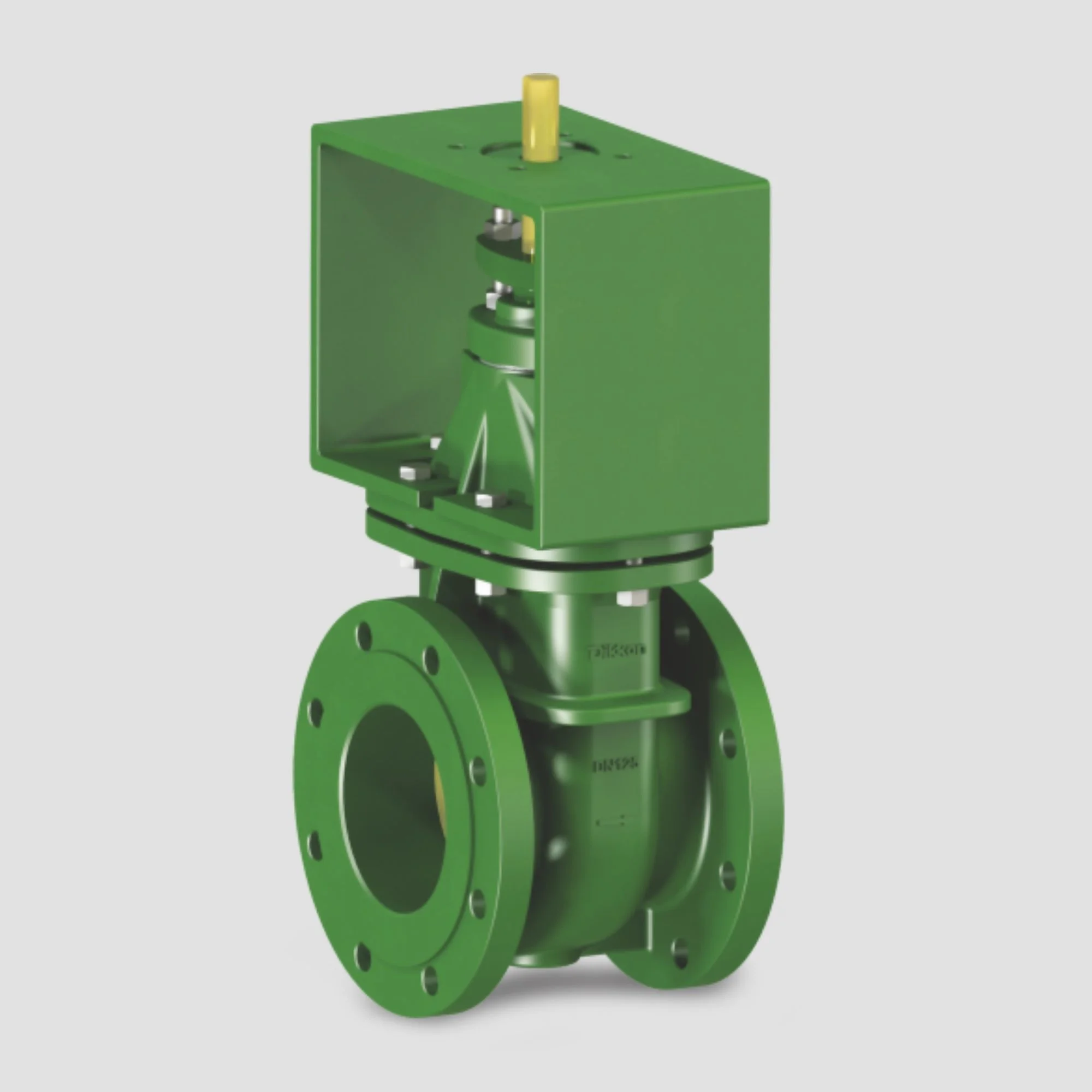

Dikkan Cast Iron Flanged Gate Valves with ISO Top

Dikkan Cast Iron Flanged Gate Valves, featuring an ISO Top, offer reliable, efficient fluid control in various industrial applications. These valves, designed for durability and precise operation, are ideal for regulating water, gas, and oil flow. Their flanged design ensures a secure, leak-proof connection, while the ISO Top conforms to international standards, guaranteeing compatibility and ease of integration into existing systems. Perfect for engineers seeking high-performance, long-lasting solutions in fluid management.

Find Out More

Why is this Application Important?

Oil and gas flow isolation and shut-off are essential because they provide a critical safety mechanism for controlling the movement of hydrocarbons within pipelines, processing facilities, and storage systems. The oil and gas industry operates under high pressures and often with flammable or hazardous fluids, meaning any uncontrolled release can pose serious risks to personnel, infrastructure, and the environment. Reliable isolation valves allow operators to quickly stop or redirect flow when maintenance is required, equipment needs to be inspected, or abnormal conditions are detected.

This application is also vital for protecting large-scale infrastructure and ensuring operational continuity. In the event of leaks, pressure surges, or equipment failure, shut-off systems allow sections of pipelines or processing units to be isolated rapidly, preventing further damage and limiting the impact of an incident. By enabling safe shutdown procedures and controlled maintenance operations, flow isolation valves help reduce downtime, protect valuable assets, and maintain safe and efficient oil and gas production and transportation systems.

What Valves are used?

Several types of valves are used for oil and gas flow isolation and shut-off, each chosen for their ability to provide reliable sealing, withstand high pressures, and operate safely in demanding environments. Ball valves are among the most commonly used because they provide tight shut-off and minimal pressure drop when fully open. Their quarter-turn operation also allows for fast actuation, making them ideal for emergency shutdown systems and automated pipeline control.

Gate valves are also widely used in oil and gas applications, particularly for full-flow isolation in pipelines. When fully open, the gate moves completely out of the flow path, allowing unrestricted flow and reducing pressure loss. In addition, plug valves are often used where quick shut-off and simple operation are required, especially in systems handling hydrocarbons or viscous fluids. Butterfly valves may also be used in certain large-diameter or lower-pressure applications where lightweight design and space efficiency are important.

Frequently Asked Questions

Flow isolation refers to the ability to completely stop or separate the movement of oil, gas, or other fluids within pipelines or processing systems to allow safe operation or maintenance.

They allow operators to quickly stop the flow of hydrocarbons during maintenance, emergencies, or system failures, helping to protect personnel and infrastructure.

Ball valves, gate valves, plug valves, and sometimes butterfly valves are commonly used depending on pressure, size, and application requirements.

Ball valves provide tight shut-off, quick operation, and minimal pressure drop when open, making them ideal for pipeline isolation and emergency shutdown systems.

Gate valves are used where full-bore flow and reliable isolation are required, particularly in large pipelines and high-pressure systems.

An ESD valve is an actuated valve designed to close automatically during abnormal conditions to stop the flow of hydrocarbons and prevent accidents.

Actuators allow valves to be operated remotely or automatically, enabling rapid response to system faults or safety triggers.

Common materials include carbon steel, stainless steel, duplex alloys, and other corrosion-resistant materials suitable for high-pressure environments.

Tight shut-off means the valve can completely stop flow with minimal or no leakage when closed, which is essential for safety and environmental protection.

Yes, valves used in oil and gas systems are designed to withstand high pressures, high temperatures, and corrosive environments.

Regular inspection, testing, and maintenance are carried out to ensure valves operate correctly, particularly those used in safety-critical systems.

Choosing the right valve ensures reliable isolation, protects equipment, improves safety, and helps maintain efficient operation across the entire system.
