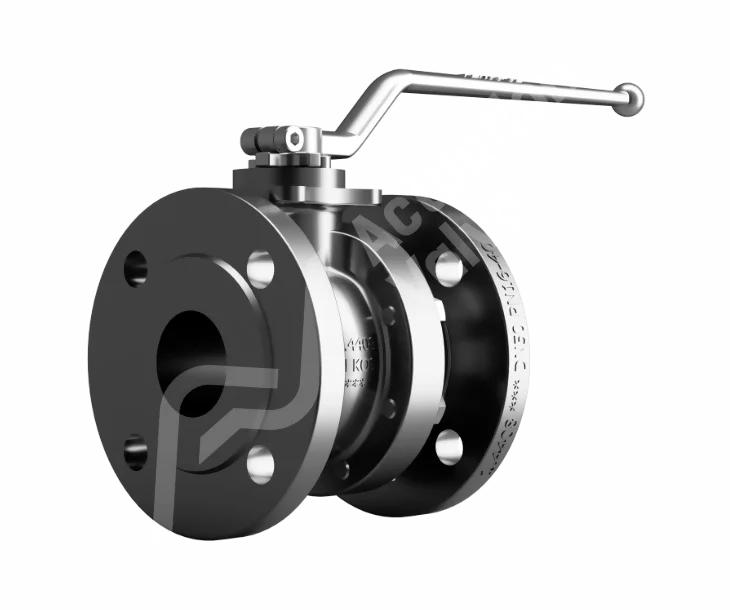

Z14 Full Bore Carbon Steel ANSI 150 Floating Pekos Ball Valves

The Z14 Full Bore Carbon Steel ANSI 150 Floating Ball Valves from Pekos offer a reliable and robust solution for demanding industrial applications. Designed to handle a wide range of media, including gases, liquids, and steam, these valves are engineered with high-quality carbon steel to ensure strength and resistance to corrosion. Their full bore design allows for minimal pressure drop and maximum flow efficiency, making them ideal for operations where maintaining throughput is crucial. The floating ball mechanism provides tight shut-off capabilities, ensuring safety and leak prevention across various process conditions. Suitable for use in oil and gas, chemical, power generation, and water treatment sectors, these Pekos valves are a trusted choice for performance and durability.
Shop

Key Features

Key features and benefits.
1

Key Features

The full bore configuration ensures unrestricted flow with minimal pressure loss, making it ideal for high-volume systems. It also helps reduce energy consumption by maintaining efficient fluid transfer.
2

Key Features

Manufactured from durable carbon steel, these valves are designed to withstand tough industrial environments and resist mechanical stress. This material choice also supports compatibility with a wide range of media, including aggressive fluids.
3

Key Features

The floating ball design delivers precise shut-off performance, even under varying pressures. It ensures tight sealing with minimal torque, enhancing operational reliability and extending service life.

Pekos Z14 CS ANSI 150 Technical & Dims

PTFE Carbon Graphite A B C D
1/2" Z015FB14TTTGV Z015FB14SSSGV 108.00 185.00 90.00 11.00
3/4" Z020FB14TTTGV Z020FB14SSSGV 117.00 185.00 100.00 12.00
1" Z025FB14TTTGV Z025FB14SSSGV 127.00 185.00 110.00 14.00
1.25" Z032FB14TTTGV Z032FB14SSSGV 140.00 185.00 115.00 15.00
1.5" Z040FB14TTTGV Z040FB14SSSGV 165.00 293.00 125.00 16.00
2" Z050FB14TTTGV Z050FB14SSSGV 178.00 293.00 150.00 17.00
2.5" Z065FB14TTTGV Z065FB14SSSGV 190.00 293.00 180.00 19.00
3" Z080FB14TTTGV Z080FB14SSSGV 203.00 350.00 190.00 21.00
4" Z100FB14TTTGV Z100FB14SSSGV 229.00 350.00 230.00 25.00
5" Z125FB14TTTGV Z125FB14SSSGV TBA TBA TBA TBA
6" Z150FB14TTTGV Z150FB14SSSGV 394.00 740.00 280.00 27.00
8" Z200FB14TTTGV Z200FB14SSSGV 457.00 750.00 345.00 30.00

Pekos Z14 Carbon Steel ANSI 150 3D Stuff

Z14 Full Bore Carbon Steel ANSI 150 Floating Pekos Ball Valves

(19 Items)
Refine
Hide Filters Show Filters
Sort By
  • Low to High
  • High to Low
  • A to Z
  • Z to A
  • New In
Pekos Ball Valves AVZ015FB14TTTGV 2 PCE Full Bore A216 WCC Carbon Steel Floating Ball ANSI 150 Lockable Lever
£169.72
Pekos Ball Valves AVZ020FB14TTTGV 2 PCE Full Bore A216 WCC Carbon Steel Floating Ball ANSI 150 Lockable Lever
£173.91
Pekos Ball Valves AVZ025FB14TTTGV 2 PCE Full Bore A216 WCC Carbon Steel Floating Ball ANSI 150 Lockable Lever
£198.02
Pekos Ball Valves AVZ040FB14TTTGV 2 PCE Full Bore A216 WCC Carbon Steel Floating Ball ANSI 150 Lockable Lever
£297.54
Pekos Ball Valves AVZ050FB14TTTGV 2 PCE Full Bore A216 WCC Carbon Steel Floating Ball ANSI 150 Lockable Lever
£335.26
Pekos Ball Valves AVZ065FB14TTTGV 2 PCE Full Bore A216 WCC Carbon Steel Floating Ball ANSI 150 Lockable Lever
£486.12
Pekos Ball Valves AVZ080FB14TTTGV 2 PCE Full Bore A216 WCC Carbon Steel Floating Ball ANSI 150 Lockable Lever
£518.60
Pekos Ball Valves AVZ100FB14TTTGV 2 PCE Full Bore A216 WCC Carbon Steel Floating Ball ANSI 150 Lockable Lever
£700.89
Pekos Ball Valves AVZ150FB14TTTGV 2 PCE Full Bore A216 WCC Carbon Steel Floating Ball ANSI 150 Lockable Lever
£1787.34
Pekos Ball Valves AVZ200FB14TTTGV 2 PCE Full Bore A216 WCC Carbon Steel Floating Ball ANSI 150 Lockable Lever
£3243.62
Pekos Ball Valves AVZ015FB14TTTGRATSR 2 PCE Full Bore A216 WCC Carbon Steel Floating Ball ANSI 150 Air Torque Actuated Spring Return
£286.65
Pekos Ball Valves AVZ020FB14TTTGRATSR 2 PCE Full Bore A216 WCC Carbon Steel Floating Ball ANSI 150 Air Torque Actuated Spring Return
£290.83
Pekos Ball Valves AVZ025FB14TTTGRATSR 2 PCE Full Bore A216 WCC Carbon Steel Floating Ball ANSI 150 Air Torque Actuated Spring Return
£314.94
Pekos Ball Valves AVZ040FB14TTTGRATSR 2 PCE Full Bore A216 WCC Carbon Steel Floating Ball ANSI 150 Air Torque Actuated Spring Return
£485.23
Pekos Ball Valves AVZ050FB14TTTGRATSR 2 PCE Full Bore A216 WCC Carbon Steel Floating Ball ANSI 150 Air Torque Actuated Spring Return
£522.95
Pekos Ball Valves AVZ080FB14TTTGRATSR 2 PCE Full Bore A216 WCC Carbon Steel Floating Ball ANSI 150 Air Torque Actuated Spring Return
£747.83
Pekos Ball Valves AVZ100FB14TTTGRATSR 2 PCE Full Bore A216 WCC Carbon Steel Floating Ball ANSI 150 Air Torque Actuated Spring Return
£1087.05
Pekos Ball Valves AVZ150FB14TTTGRATSR 2 PCE Full Bore A216 WCC Carbon Steel Floating Ball ANSI 150 Air Torque Actuated Spring Return
£2427.34
Pekos Ball Valves AVZ200FB14TTTGRATSR 2 PCE Full Bore A216 WCC Carbon Steel Floating Ball ANSI 150 Air Torque Actuated Spring Return
£4412.85
You've viewed 19 of 19 products
