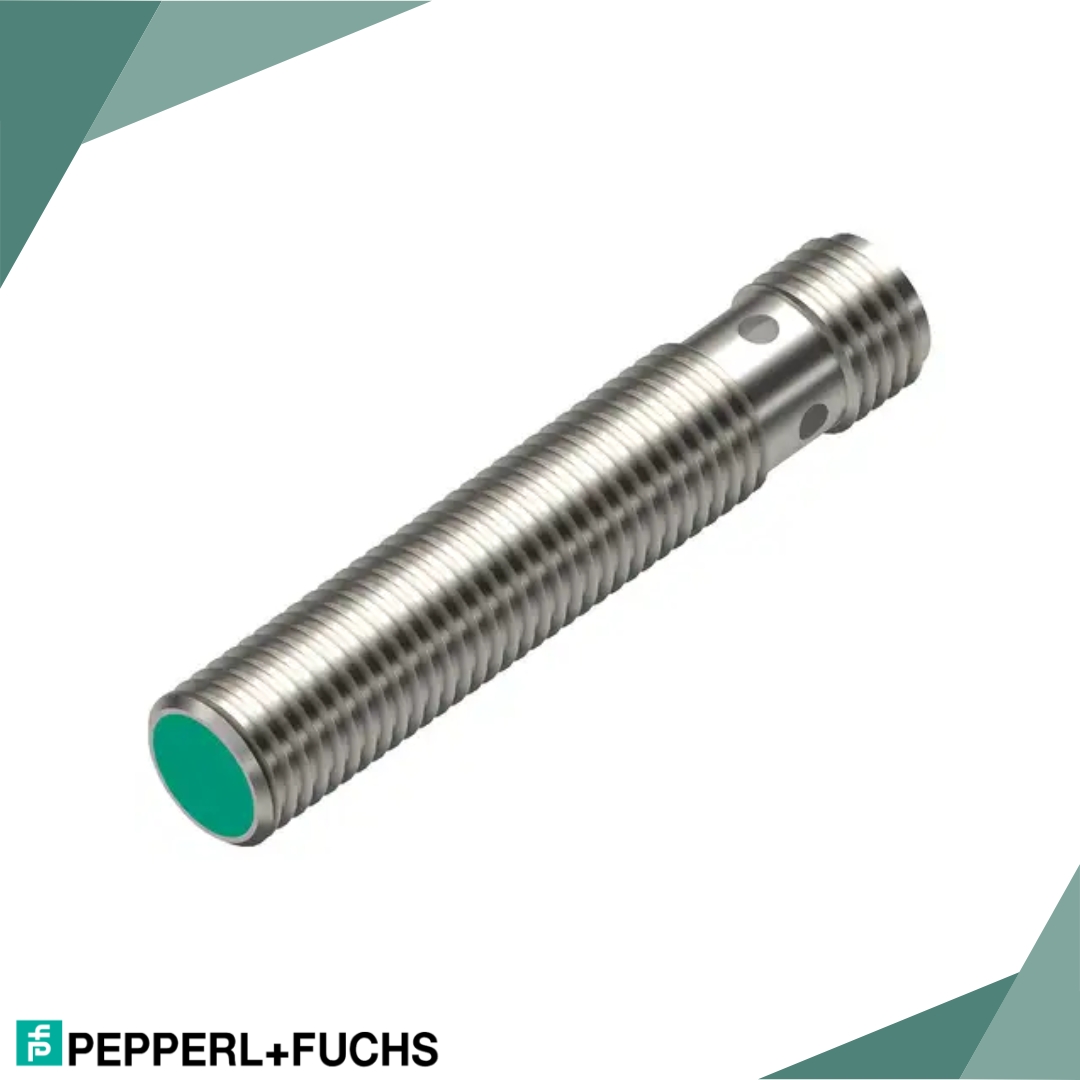

Pepperl & Fuchs NBB4-12GM50-E2-V1 Inductive Sensor

Key Features:

  • 4 mm sensing distance

  • PNP normally open output

  • 10–30 VDC operating voltage

  • Rugged M12 cylindrical housing

  • IP67 environmental protection

  • V1 (M12 connector) for quick installation

Its M12 threaded cylindrical housing allows easy installation, while the V1 (M12 connector) ensures a secure and simple connection. Engineered with an IP67 protection rating, the NBB4-12GM50-E2-V1 offers strong resistance to dust, water, and mechanical stress, guaranteeing dependable operation even in harsh conditions. Ideal for material handling, packaging machinery, and production lines, this Pepperl & Fuchs sensor combines durability with consistent performance.

Buy Now

Datasheet

  • Document
Datsheet

Pepperl & Fuchs NBB4-12GM50-E2-V1 Inductive Sensor

Product Specification
Switching function Normally open (NO)
Output type PNP
Rated operating distance 4 mm
Installation Flush
Output polarity DC
Assured operating distance 0 ... 3.24 mm
Actuating element Mild steel, e. g. 1.0037, SR235JR (formerly St37-2) 12 mm x 12 mm x 1 mm
Reduction factor rAl 0.4
Reduction factor rCu 0.35
Reduction factor r304 0.79
Reduction factor rBrass 0.49
Output type 3-wire

Frequently Asked Questions

It is an inductive proximity sensor designed to detect metallic objects without physical contact.

The sensor provides a 4 mm nominal sensing distance.

It has a PNP normally open (NO) output configuration.

The operating voltage is 10–30 VDC.

It comes in an M12 threaded cylindrical housing for secure mounting.

With an IP67 rating, it is resistant to dust, water, and harsh operating conditions.

It features a V1 (M12) connector for quick and reliable installation.

It is used in factory automation, packaging equipment, conveyor systems, and material handling processes.

No, inductive sensors only detect metallic objects.

Ferrous metals like steel are detected at full range; non-ferrous metals such as aluminum or copper are detected with a slightly reduced range.

Yes, its robust build and IP67 rating make it highly durable in demanding environments.

Its standard M12 housing and connector ensure compatibility and quick setup with most industrial control systems.
