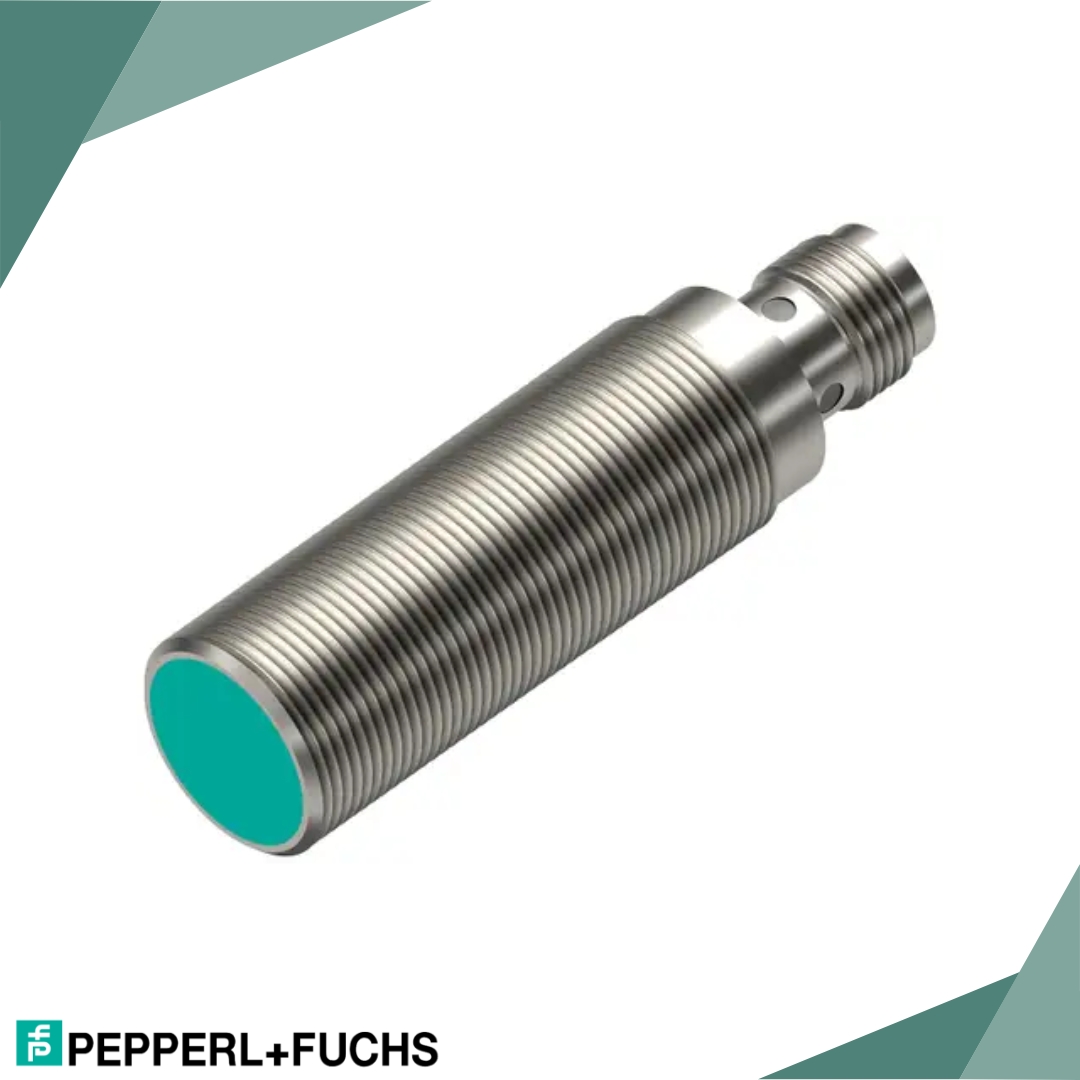

Pepperl & Fuchs NBB5-18GM50-E2-V1 Inductive Sensor

Key Features:

  • 5 mm sensing distance

  • PNP normally open output

  • Operating voltage: 10–30 VDC

  • Rugged M18 threaded cylindrical housing

  • IP67 protection rating

  • Quick-connect V1 (M12) connector

Built to withstand demanding environments, the NBB5-18GM50-E2-V1 features IP67-rated protection, ensuring resistance to dust, moisture, and mechanical stress. The V1 (M12) connector design allows for fast installation and maintenance. Commonly used in packaging, conveyor systems, robotics, and material handling, this inductive sensor provides long-lasting performance and dependable detection for automation processes.

Buy Now

Datasheets

  • Document
Datasheets

NBB5-18GM50-E2-V1 Inductive Sensor

Product Specification
Switching function Normally open (NO)
Output type PNP
Rated operating distance 5 mm
Installation Flush
Output polarity DC
Assured operating distance 0 ... 4.05 mm
Actuating element mild steel, e. g. 1.0037, SR235JR (formerly St37-2) 18 mm x 18 mm x 1 mm
Reduction factor rAl 0.35
Reduction factor rCu 0.29
Reduction factor r304 0.73
Reduction factor rBrass 0.44
Output type 3-wire

Frequently Asked Questions

It is an inductive proximity sensor designed for reliable non-contact detection of metallic objects in industrial environments.

The NBB5-18GM50-E2-V1 offers a 5 mm nominal sensing distance.

It provides a PNP normally open (NO) output.

The operating range is 10–30 VDC.

It is built with a threaded M18 cylindrical housing for secure installation.

Yes, it is IP67-rated, meaning it is protected against dust and water ingress.

It is fitted with a V1 (M12) connector for quick and easy installation.

No, inductive sensors like this one are designed specifically for detecting metal.

It works best with ferrous metals such as steel, though it also detects non-ferrous metals with slightly reduced sensitivity.

With its rugged design and IP67 rating, it delivers dependable performance even in harsh industrial conditions.

Yes, the standard M18 threaded housing and M12 connector make it simple to mount and connect to control setups.

Yes, devices such as multiport serial cards and signal conditioners are engineered to bridge older equipment with today’s automation networks, providing an efficient and reliable path for system upgrades.
