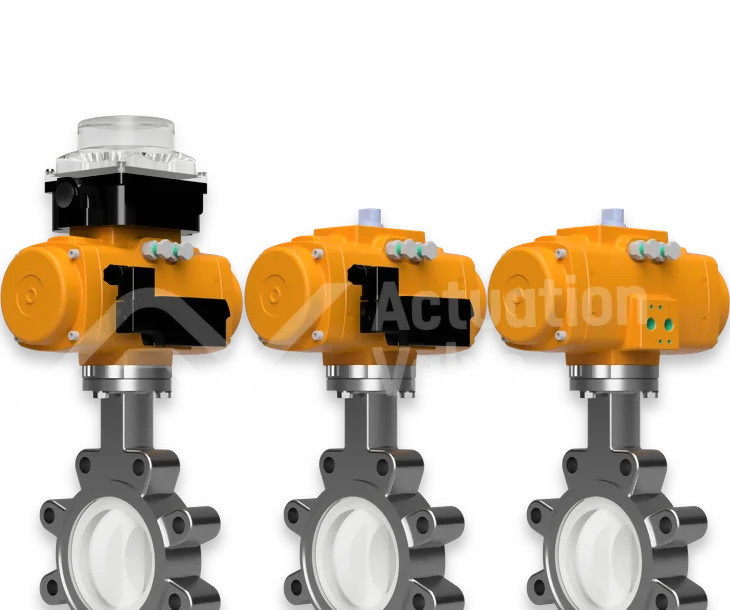

Stainless Steel Lugged PTFE Lug Elomatic Butterfly Valves

The TTV Stainless Steel Actuated PTFE Butterfly Valves provide a very similar corrosion resistance to that of the standard valve, while also providing external protection where chemicals may be present or there's potential for them in your wash down requirements. The EL-O-Matic F Series are available with a SIL 3 rating approval from TÜV, which means that this actuator can be used in safety critical systems without having to consider the consequences if it fails. The “Dry Shaft” feature ensures fluid is again isolated from both the shaft and the body of the butterfly valve.
Shop Help Me

Key Features

Key features and benefits of the 40LP4040F0TEL Actuated Butterfly Valves.
1

Key Features

TTV's PTFE stainless steel butterfly valves offer reliable protection for your most demanding applications. These versatile pieces of equipment can be used both externally and internally, in environments where extreme corrosion is expected or required.
2

Key Features

Lug valves are a great way to make repairs in the field easy. They have threaded inserts at both sides of their body, which means you can install them with no nuts. If one side needs servicing all you need do is detach whichever suits best.
3

Key Features

Tested to function properly after just 1,000 hours of salt spray testing (C5 Medium). This is an accelerated test that puts the product under conditions much harsher than those it would normally encounter during its average use cycle.

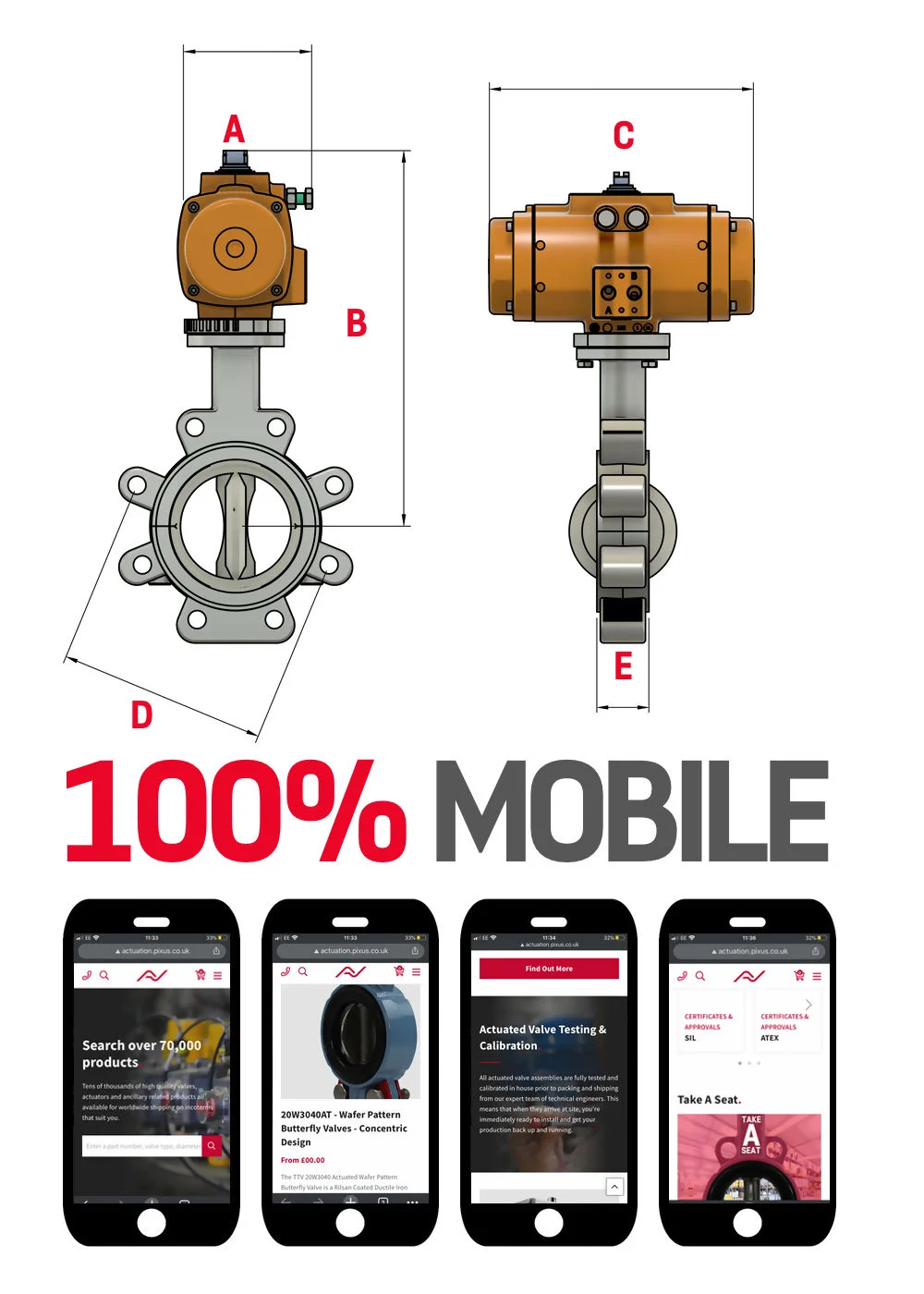

PTFE Lined Lugged Butterfly Valve Dims

A B C A B C D E
SR SR SR DA DA DA SR/DA SR/DA
1.5" 69.00 291.00 247.00 93.00 262.00 203.50 TBA 33.00
2" 75.00 333.00 304.00 69.00 307.00 247.00 TBA 43.00
2.5" 75.00 338.00 304.00 69.00 312.00 247.00 TBA 46.00
3" 87.00 352.00 362.00 75.00 346.00 235.00 TBA 46.00
4" 109.00 408.00 385.00 75.00 364.00 235.00 TBA 52.00
5" 132.00 484.00 476.00 109.00 427.00 284.00 TBA 56.00
6" 132.00 493.00 476.00 109.00 436.00 284.00 TBA 56.00
8" 132.00 533.00 476.00 109.00 476.00 284.00 TBA 60.00
10" 130.00 580.00 732.00 131.00 546.00 400.00 TBA 68.00
12" 262.00 628.50 605.00 221.50 431.00 528.00 TBA 78.00
14" TBA TBA TBA TBA TBA TBA TBA TBA
16" TBA TBA TBA TBA TBA TBA TBA TBA
18" TBA TBA TBA TBA TBA TBA TBA TBA
20" TBA TBA TBA TBA TBA TBA TBA TBA
24" TBA TBA TBA TBA TBA TBA TBA TBA

PTFE Lined SS Lugged Butterfly Valve 3D

Actuated Valve Testing & Calibration

All actuated valve assemblies are fully tested and calibrated in house prior to packing and shipping from our expert team of technical engineers. This means that when they arrive at site, you're immediately ready to install and get your production back up and running.

Dimensions & Details

  • PDF
316 SS SHAFT

DN40-DN200
  • PDF
A890 GRADE 1B SHAFT

DN250-DN300
  • PDF
CERTIFICATES & APPROVALS

FDA
  • PDF
CERTIFICATES & APPROVALS

ANTI-STATIC-DEVICE

More Reasons If You Need Them

  • PDF
CERTIFICATES AND APPROVALS

SIL
  • PDF
CERTIFICATES AND APPROVALS

SAFETY MANUAL
  • PDF
CERTIFICATES AND APPROVALS

DRINKING WATER
  • PDF
CERTIFICATES AND APPROVALS

PED

4-20mA Control Available On This Product

The BLX V100E Series is an Electro-Pneumatic control unit that allows the Actuator to incrementally adjust the Valve's position between the fully open and closed cycle. Product variants are available for spring return and double acting setups with feedback and safety settings. Ask our team today about how the V100E can help with your process requirements.

SMALL Actuator DA

  • ZIP
DRAWINGS & SCHEMATICS

0012
  • ZIP
DRAWINGS & SCHEMATICS

0025
  • ZIP
DRAWINGS & SCHEMATICS

0040
  • ZIP
DRAWINGS & SCHEMATICS

0065
  • ZIP
DRAWINGS & SCHEMATICS

0100
  • ZIP
DRAWINGS & SCHEMATICS

0150

SMALL Actuator SR

  • ZIP
DRAWINGS & SCHEMATICS

0012
  • ZIP
DRAWINGS & SCHEMATICS

0025
  • ZIP
DRAWINGS & SCHEMATICS

0040
  • ZIP
  • Size 0100
DRAWINGS & SCHEMATICS

0065
  • ZIP
DRAWINGS & SCHEMATICS

0100
  • ZIP
DRAWINGS & SCHEMATICS

0150

Need More Dimensions?

No time for fancy software or your tekkers are just pretty substandard? We offer a full technical drawing service for our actuated valves. The Artists are ready to draw. Tell us what you need.

BIG Actuator DA

  • ZIP
DRAWINGS & SCHEMATICS

0200
  • ZIP
DRAWINGS & SCHEMATICS

0350
  • ZIP
DRAWINGS & SCHEMATICS

0600
  • ZIP
DRAWINGS & SCHEMATICS

0950
  • ZIP
DRAWINGS & SCHEMATICS

1600
  • ZIP
DRAWINGS & SCHEMATICS

2500

BIG Actuator SR

  • ZIP
DRAWINGS & SCHEMATICS

0200
  • ZIP
DRAWINGS & SCHEMATICS

0350
  • ZIP
DRAWINGS & SCHEMATICS

0600
  • ZIP
DRAWINGS & SCHEMATICS

0950
  • ZIP
DRAWINGS & SCHEMATICS

1600
  • ZIP
DRAWINGS & SCHEMATICS

2500

Valve Standards & Stuff
Body Material: CF8M Stainless Steel
Disc Materials: PTFE, PFA, UHMWPE Stainless steel (CF-8M)
Shaft Materials: AISI 316, 17-4PH, Duplex
Face To Face: ISO 5752 Series 20, BS 5155 Wafer, DIN 3202 Part 3, Series K1
Pressure Testing: EN 12266-1, DIN 3230, BS 6755, ISO 5208
Connections: PN10/16 ANSI 150, ISO 705, DIN 2501, BS 4504, ANSI Class 150 ANSI B16.5
Sealing Testing: ISO 5208, API 598

Frequent Interrogation

It is a stainless steel butterfly valve with a lugged body design and a PTFE liner for chemical resistance, fitted with an Elomatic pneumatic actuator for automated quarter-turn operation. This combination provides reliable isolation and control in demanding industrial environments.

PTFE lining offers excellent resistance to aggressive chemicals, acids, and solvents while remaining non-reactive and non-contaminating. It also helps prevent corrosion and product build-up, extending valve service life.

Stainless steel provides high strength, corrosion resistance, and durability, making it suitable for harsh environments. When paired with PTFE lining, it offers both internal chemical protection and external environmental resistance.

The lugged body allows the valve to be bolted to each flange independently, enabling end-of-line service and easier maintenance. This design provides greater installation flexibility compared to wafer-pattern butterfly valves.

Elomatic pneumatic actuators deliver reliable torque output, fast response times, and long operating life. Their compact rack-and-pinion design makes them well suited for automated butterfly valve applications.

Yes. The PTFE lining provides excellent chemical resistance, making these valves suitable for handling corrosive fluids, solvents, and aggressive process media commonly found in chemical and industrial applications.

Yes. When fitted with a suitable positioner, stainless steel PTFE-lined Elomatic butterfly valves can be used for modulating duties as well as standard open/close isolation.

PTFE linings typically operate up to around 180°C, depending on pressure and service conditions. The stainless steel body maintains stability under thermal cycling for consistent performance.

Yes. Elomatic actuators are available in spring-return configurations, allowing the valve to fail open or fail closed in the event of air supply loss, depending on application requirements.

These valves are widely used in chemical processing, pharmaceuticals, water treatment, food and beverage production, and general industrial flow control where corrosion resistance and automation are required.

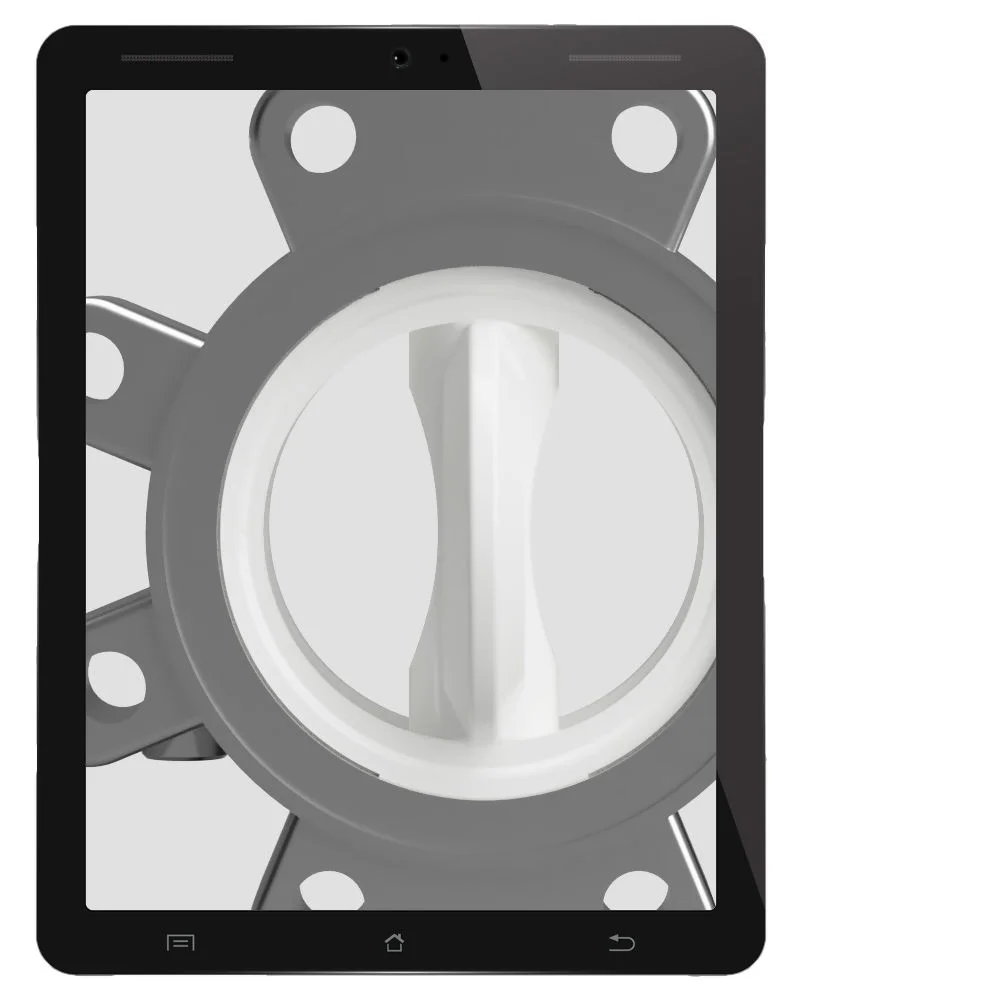

Non Toxic FDA Approved PTFE

The valve is built around a concentric wafer-style layout that incorporates a non-toxic PTFE liner extending beyond the flow bore and onto sections of the valve body. This ensures a consistent, leak-tight interface with mating flanges, removing any risk of media contamination. The result is a butterfly valve that offers outstanding resistance to aggressive chemicals and solvents, remaining chemically stable and unaffected at temperatures of up to 300 °C.

Engineered Shaft Design

The integrated one-piece shaft delivers superior mechanical integrity and stability, facilitating direct actuator mounting. By isolating the process media from the shaft and valve body, this design eliminates the need for specialised mounting kits, effectively lowering costs and simplifying the installation process.

Streamlined Butterfly Valve Discs

Greater CV Potential & Less Pipe Space

High-Efficiency Flow Control & Isolation

Engineered with a high-flow disc profile, these units achieve a superior flow coefficient Cv compared to standard industry designs. This optimisation minimises parasitic pressure loss and lowers system-wide energy consumption without compromising shutoff integrity. Even under high-pressure differentials, the bi-directional architecture ensures a bubble-tight, leak-proof seal.

Automated System Reliability

For high-torque or remote-access requirements, our valves integrate seamlessly with both electric and pneumatic drivers.

  • Pneumatic Solutions: These offer the fastest cycle times and are available in double-acting or spring-return formats.

  • Fail-Safe Security: In the event of a power or air loss, spring-return models provide critical safety by automatically resetting to a "normally closed" or "normally open" state, protecting downstream assets from uncontrolled flow.

Elomatic Actuator Videos

Elomatic Overview

TopWorx Limit Switch Box

TopWorx Elomatic Valve Limit Switch Box available for this product. Keep everything within the Emerson Group of products with a world leading Valve Position Monitor. Safe Area, Explosion Proof, Intrinsically Safe. All available from stock with fitting and calibration to your Elomatic Actuator prior to shipping.

Actuator Stuff

  • PDF
Brochures

F-Series Elomatic
  • PDF
CERTIFICATES & APPROVALS

SIL
  • PDF
CERTIFICATES & APPROVALS

ATEX
  • PDF
CERTIFICATES & APPROVALS

Safety Manual
  • PDF
CERTIFICATES & APPROVALS

Declaration Of Conformity
  • PDF
CERTIFICATES & APPROVALS

Attestation Of Conformity
Request more information or Advice

Please feel free to request information and advice using the form below or call us on 0151 547 1221
