Modern steam systems often use pre-engineered manifolds as standard equipment rather than assembling components individually. These manifolds simplify installation, reduce pipework, and ensure correct alignment of steam traps and accessories. When combined with insulation jackets, they minimise heat loss and improve safety by reducing surface temperatures. This integrated approach delivers cleaner installations, faster commissioning, and improved long-term efficiency.

Key features of Spirax Sarco Manifolds and Insulation Jackets.

Key Features

Pre-engineered Spirax Sarco manifolds remove the need for complex on-site assembly, reducing pipework and installation time. This ensures correct alignment of steam traps and accessories, delivering a clean and consistent layout.

Key Features

When paired with insulation jackets, manifolds significantly reduce heat loss from steam trap stations. This helps maintain system temperature while lowering energy waste and operating costs.

Key Features

Insulation jackets lower external surface temperatures, protecting personnel from burns and improving site safety. The integrated design also reduces leak points, improving long-term system reliability and performance.

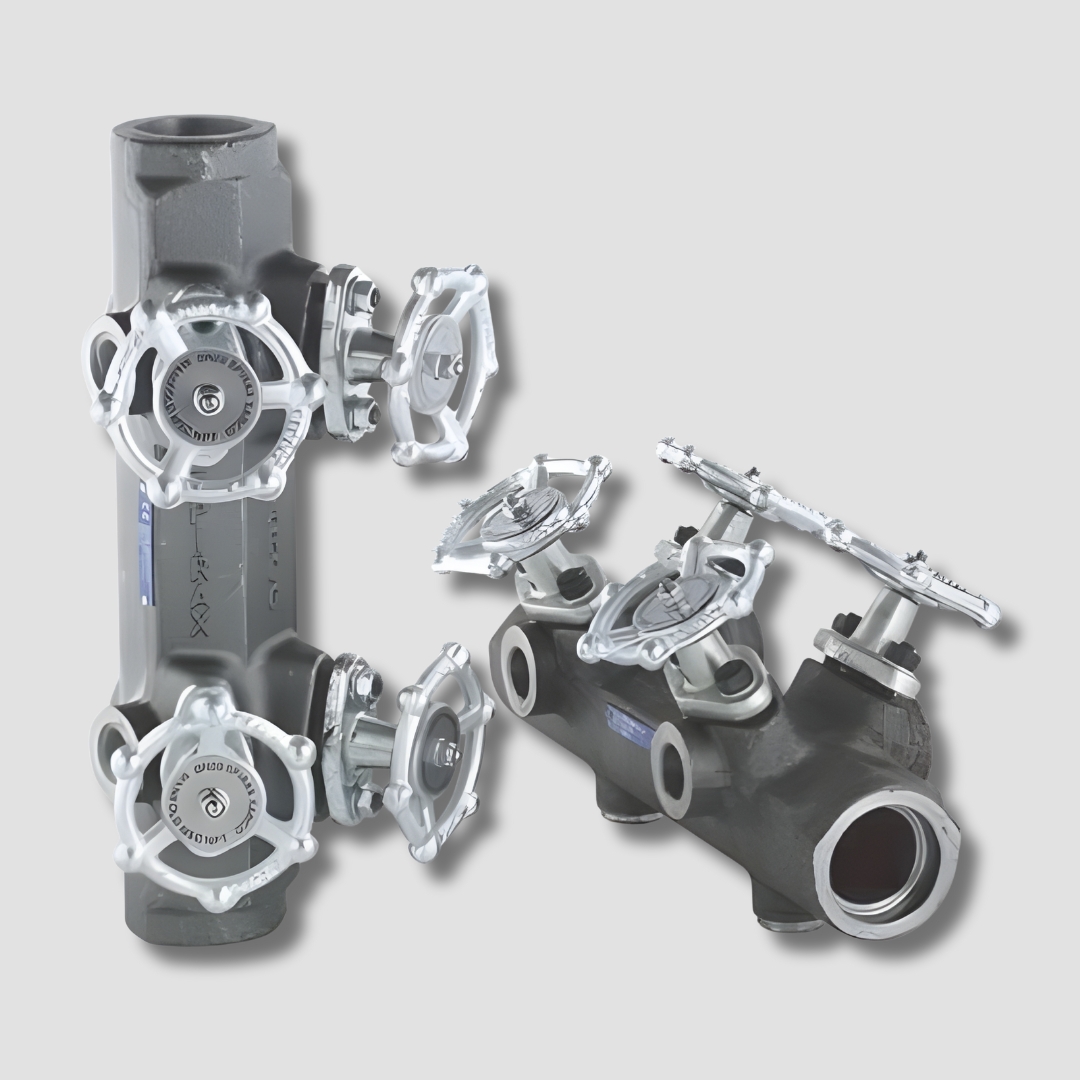

Spirax Sarco manifolds work by bringing multiple steam trap components together into a single, pre-engineered assembly.

Instead of building trap stations piece by piece on site, the manifold arrives ready to install, with the correct spacing and alignment for traps, strainers, isolation valves, and test points.

This removes guesswork during installation, reduces the amount of pipework required, and ensures every station is built to a consistent standard.

The result is faster commissioning, fewer potential leak paths, and a much cleaner, more professional layout across the steam system.

Insulation jackets complete the system by wrapping the entire manifold and trap station in a high-performance thermal barrier.

This dramatically reduces heat loss from exposed components, helping the system retain energy and maintain stable operating temperatures. At the same time, surface temperatures are lowered, protecting personnel from burns and improving site safety.

Together, Spirax Sarco manifolds and insulation jackets transform steam trap stations into efficient, compact, and safe modules that deliver long-term performance with reduced maintenance and energy waste.

Document

Manifolds and Insulation Jackets Range

Document

Manifolds and Insulation Jackets Range

Document

Manifolds and Insulation Jackets Range

Document

Manifolds and Insulation Jackets Range

Spirax Sarco Manifolds and Insulation Jackets turn steam trap stations into compact, engineered modules that install cleanly and perform flawlessly. By eliminating on-site fabrication and wrapping every component in thermal protection, they cut heat loss, reduce leak points, and keep surface temperatures safe to touch—delivering a smarter, safer, and more efficient steam system from day one.

Manifold Solutions

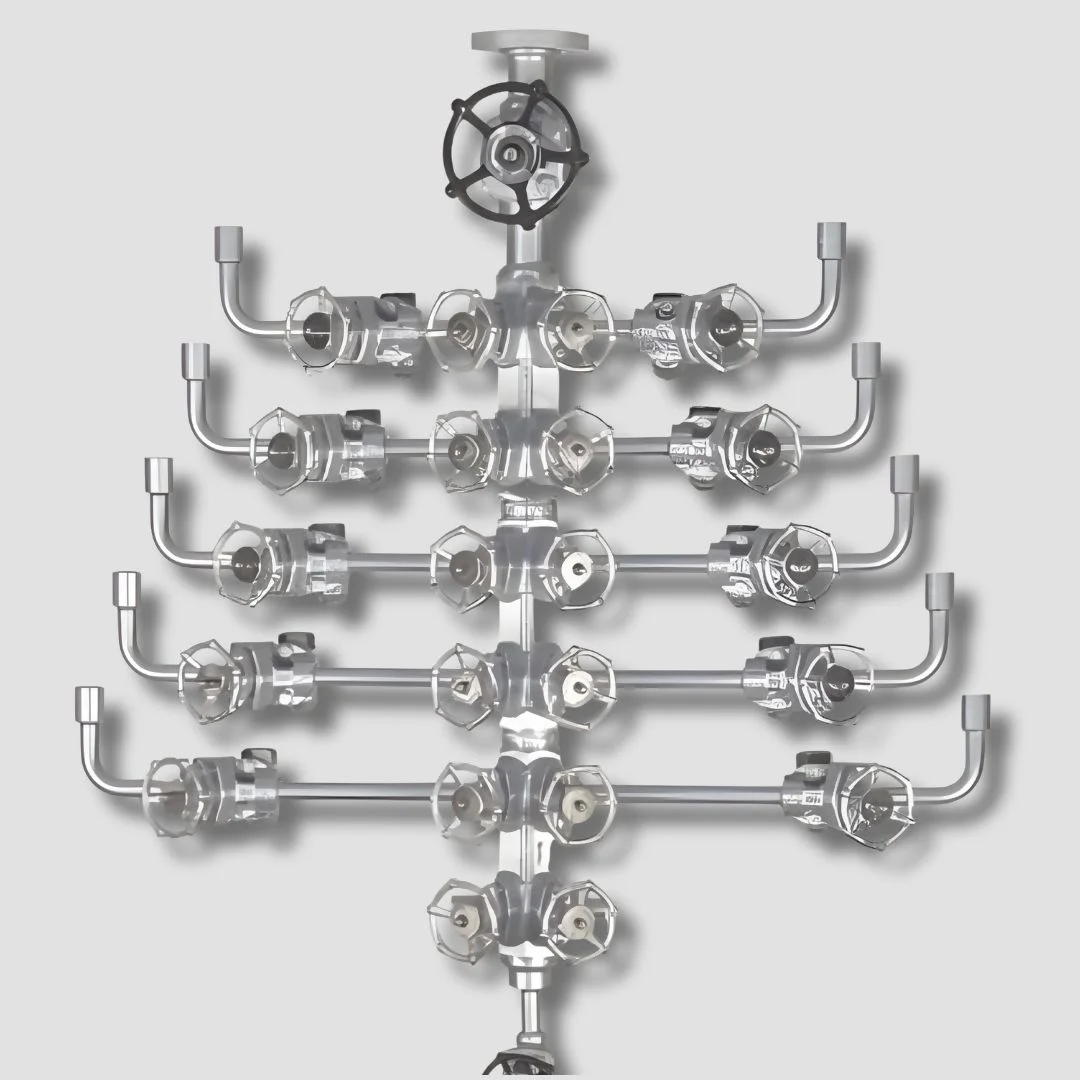

A Spirax Sarco steam trap manifold is a pre-engineered assembly that houses steam traps and accessories in a single compact unit. It replaces complex on-site pipework with a clean, standardised installation.

A steam trap manifold groups all trap station components into one engineered assembly. It simplifies layout, improves consistency, and reduces installation time.

Because everything is pre-aligned and factory-built, there is no guesswork on site. This prevents misalignment, poor drainage angles, and incorrect spacing.

They prevent heat escaping from exposed components, helping the system retain energy. They also reduce surface temperatures for safer working areas.

Yes. Spirax Sarco manifolds are designed to accommodate a wide range of trap styles and accessories, allowing flexibility across different applications and system layouts.

Yes. They are ideal for upgrading older, messy trap stations into clean, efficient modules without redesigning the entire system.

By reducing radiant heat loss and ensuring correct trap installation, they help steam systems operate at optimum efficiency.

No. They are designed to be removed and refitted easily, allowing full access during inspection or servicing.

Spirax Sarco manifolds reduce the number of joints and potential leak paths. Fewer connections mean fewer failures over the life of the system.

Spirax Sarco manifolds and insulation jackets deliver faster installation, lower energy loss, improved safety, and long-term reliability. Together, they create a cleaner, smarter, and more efficient steam system.

Yes. They are built for high temperatures, vibration, and heavy-duty plant conditions commonly found in industry.

Traditional stations rely on site fabrication and vary in quality. Manifolds provide a consistent, engineered solution every time.
