Stainless Steel ANSI 150 Festo Actuator Valves

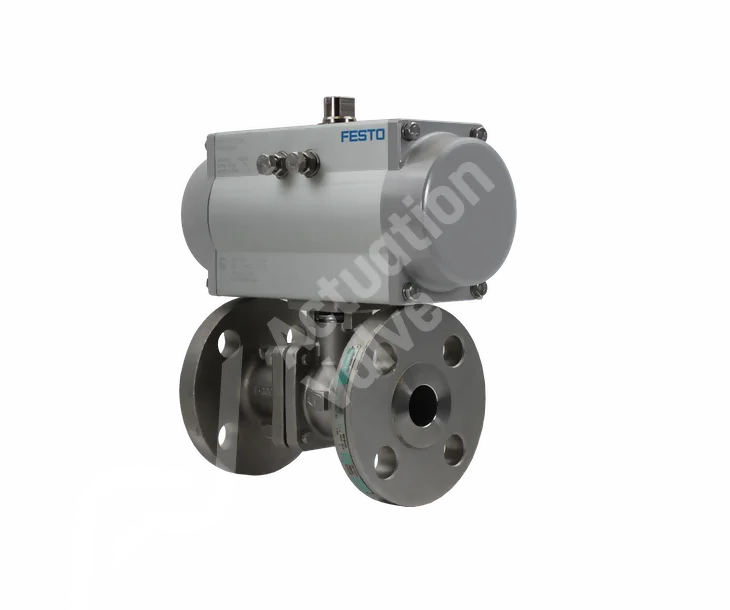

The AV-L6K00FE flanged PN16 actuation valves offer a basic quarter turn actuated solution for low to medium pressure requirements with DIN flanged connections (Maximum 16 bar). A range of pneumatic actuator sizes in the RS or RD models allow setups including fail in position, return to set position and open or closed fail safe. Both spring return and double acting actuation valves can be offered with a range of feedback options for remote position monitoring. A greater detail of control can also be offered with 4-20mA electric or electro-pneumatic positioners.

Key Features

Key features and benefits of AV-L6100FE Actuated Ball Valves.
1

Key Features

Festo offers an extensive range of pneumatic actuators that make them perfect for almost any application. The standardised hole patterns and compatible peripheral devices mean you can use these products with existing equipment or integrate them into new designs easily.
2

Key Features

Festo’s DFPD series is an innovative design that sets itself apart from other pneumatic actuators by providing high performance with low energy consumption and long lifetime under harsh conditions. More importantly, the DFPD does this at an affordable price point.
3

Key Features

The valve features a direct mount actuation pad for quick and easy automation. This allows us to get products out of the door to you quicker whilst also reducing the overall footprint of package and most importantly wight and cost.

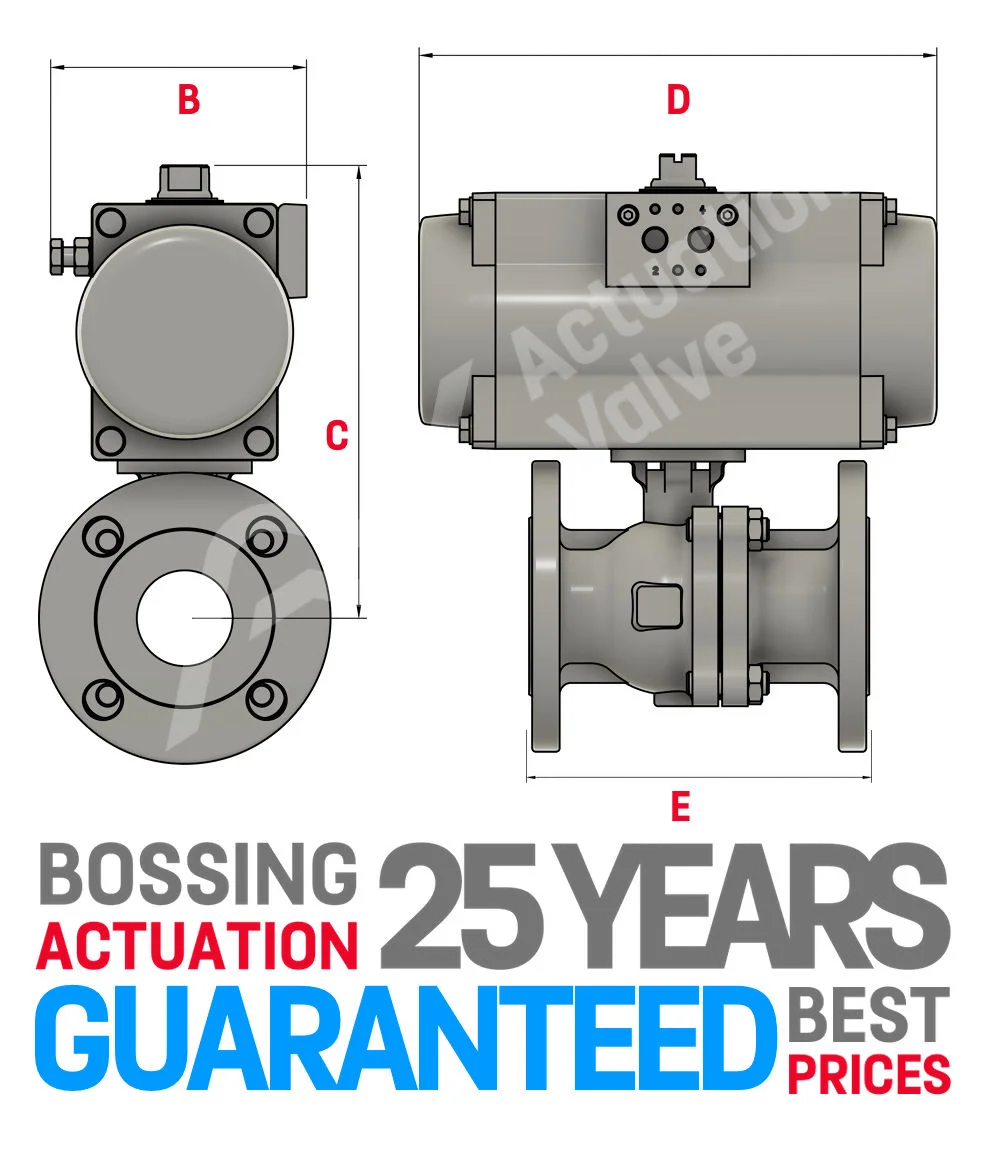

Flanged ANSI 150 Technical Stuff

B C D E B C D E
SR SR SR SR DA DA DA DA
1/2" 77.70 149.00 145.70 108.00 77.70 149.00 133.30 108.00
3/4" 77.70 153.00 145.70 108.00 77.70 153.00 133.30 117.00
1" 77.70 159.00 145.70 127.00 77.70 159.00 133.30 127.00
1 1/4" 89.70 183.00 170.40 140.00 77.70 171.00 133.30 140.00
1 1/2" 89.70 188.00 170.40 165.00 89.70 188.00 151.40 165.00
2" 108.00 212.00 223.10 178.00 89.70 194.00 151.40 178.00
2 1/2" 123.70 245.00 252.30 190.00 108.00 232.00 189.30 190.00
3" 133.40 266.00 270.90 203.00 123.80 255.00 213.70 203.00
4" 154.00 320.00 301.40 229.00 133.40 294.00 270.90 229.00
5" 182.30 397.00 374.20 356.00 161.00 375.00 334.40 356.00
6" 201.50 436.70 428.20 394.00 182.30 418.00 374.20 394.00
8" 225.50 528.70 519.30 457.00 201.50 485.70 428.20 457.00

Flanged ANSI 150 3D Stuff

Actuated Valve Testing & Calibration

All actuated valve assemblies are fully tested and calibrated in house prior to packing and shipping from our expert team of technical engineers. This means that when they arrive at site, you're immediately ready to install and get your production back up and running.

Valve Standards & Stuff

Body Material: ASTM A351 CF8M 316 Stainless Steel & Trim
Seats Material: TFM 1600 PTFE Ball Seats
Body Seal Material: Grafoil/316 Stainless Steel
Stem Packing Material: Grafoil
Design Standard: ASME B16.34
Wall Thickness: ASME B16.34
Inspection & Testing: API 598
Face 2 Face: ASME B16.10

Frequent Interrogation

Yes, this Valve is suitable for water within the pressure and temperature limitations.
Great. The Namur standard interface is perfect for direct mounting a pilot solenoid valve. We can supply this actuated valve for you with or without a solenoid valve.
It certainly does. All of our actuated valves come complete with a full set of operations and maintenance manuals from both the valve and actuator manufacturers.

Yes we can. If you cant find what you are looking for on the website get in touch. We have valve switch boes for all zoned and safe areas including LED visual indication.

Maybe. Give us a call to find out.
No.
Most definitely. We will require some more information. Drop us an email or get in touch on the blower.
Yes we can. Plane label or with a big bow. Send us a copy of your delivery note and we will fix it to the box. Jop done.
We will need to talk to Big Tony. If he says you're good for the debt then everything is in order. You can apply for this on the product page or ask for Big Tony when you get in touch.

Need More Dimensions?

No time for fancy software or your tekkers are just pretty substandard? We offer a full technical drawing service for our actuated valves. The Artists are ready to draw. Tell us what you need.

4-20mA Control Available On This Product

The Festo CMSX Series is an Electro-Pneumatic control unit that allows the Actuator to incrementally adjust the Valve's position between the fully open and closed cycle. Product variants are available for spring return and double acting setups with feedback and safety settings. Ask our team today about how the CMSX can help with your process requirements.
