Tescom Gauge Valves

TESCOM gauge valves are specialised instrumentation valves designed for accurate pressure measurement and safe gauge management. Combining pressure gauge and valve functionality, they are commonly used in systems where gauge isolation, calibration, and controlled venting are required to protect instruments and maintain measurement accuracy.

Gauge Protection Solutions

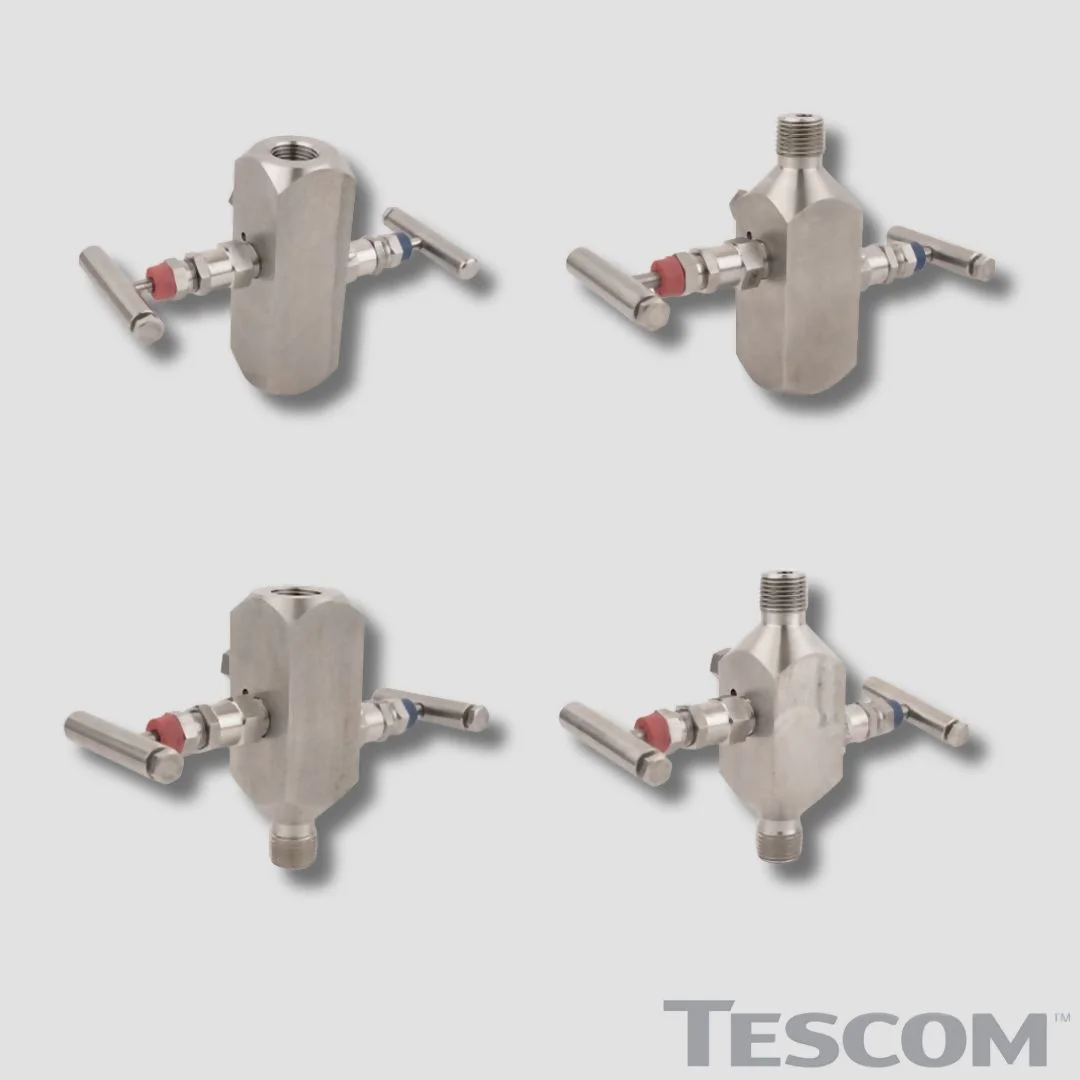

TESCOM Anderson Greenwood instrumentation products are designed to deliver safe, accurate, and reliable pressure measurement across critical industrial applications. This range includes differential pressure manifolds such as the M25/M251, alongside multi-port gauge valves from the M5/M51, M5F, and M5K/M5AK/M5YK series, all engineered to support gauge isolation, calibration, and venting.

Complementing these are block and bleed gauge valves like the M9 series and instrument isolation solutions such as the A27M gauge block and CT7 gauge siphon, which help protect pressure instruments from pulsation, temperature, and overpressure.

Together, these components reduce installation complexity, minimise leak paths, and maintain long-term measurement accuracy in oil and gas, power generation, chemical processing, and industrial monitoring systems.

Safety-Focused Instrument Control

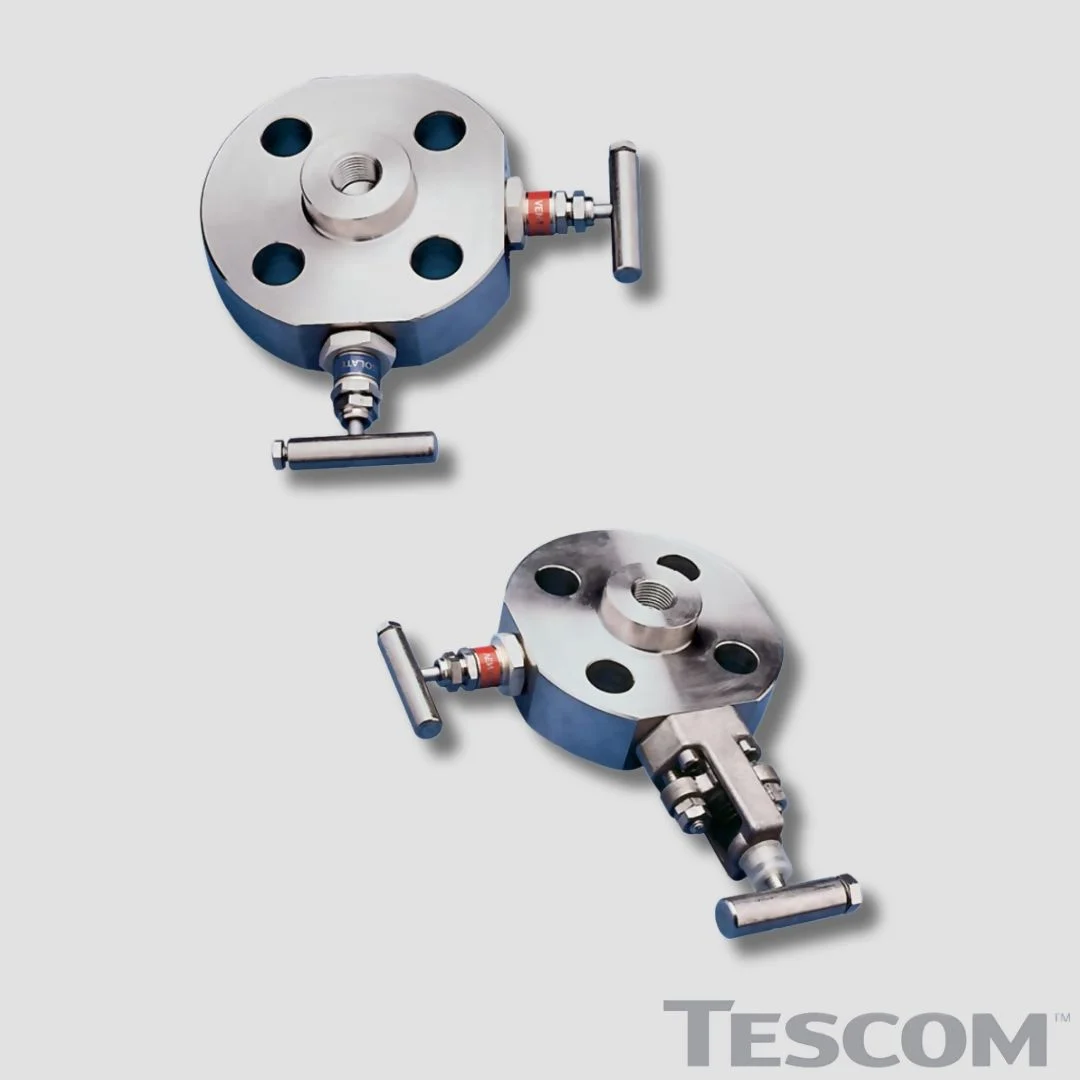

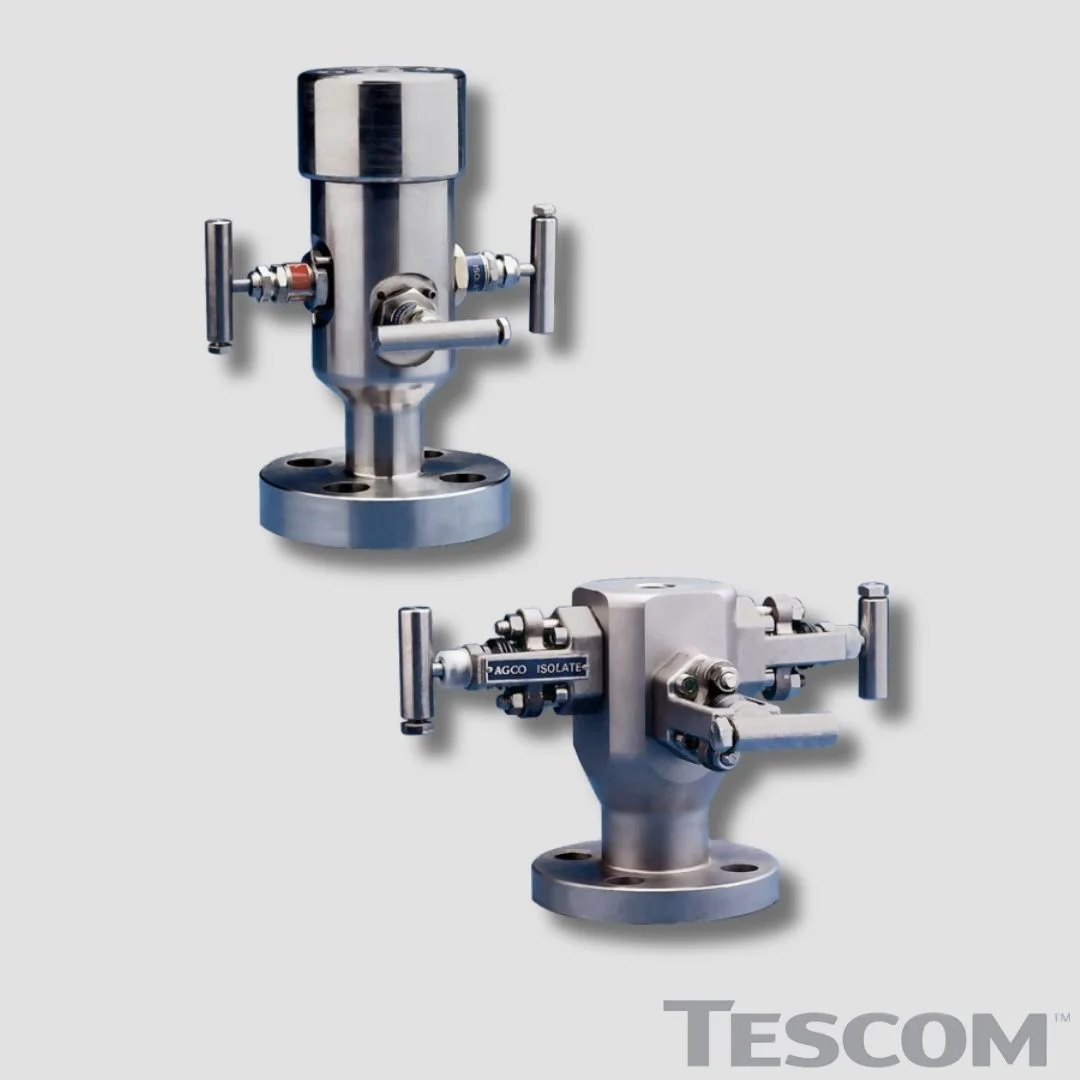

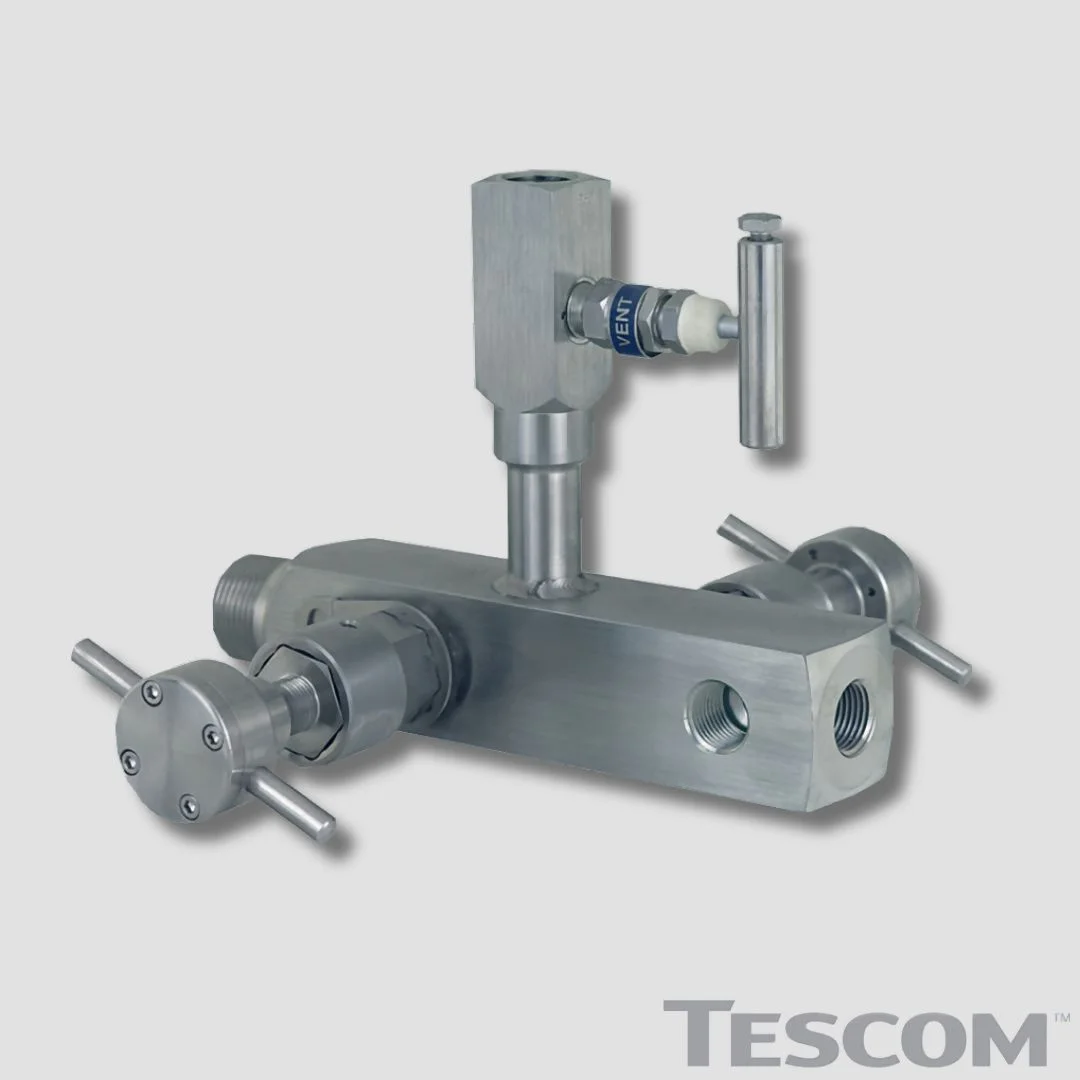

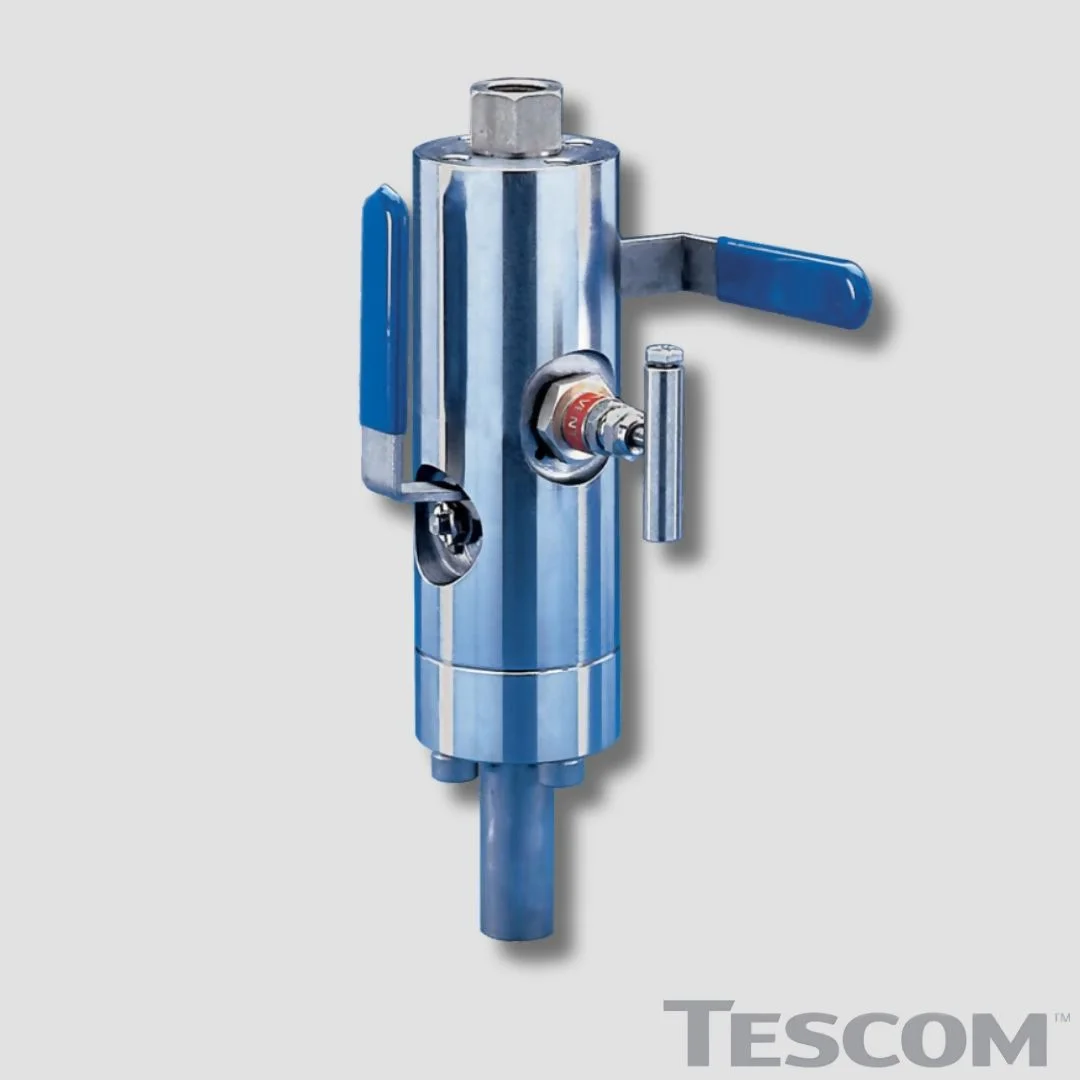

The Anderson Greenwood primary isolation valve portfolio provides a robust first line of defence between the process and sensitive instrumentation. Series such as M50/H70, H70DB, F68/F69, F29/F33K, F63/F64, F2569/F3869/F5069, P62, P63, HD27M/HD27MK, HD29, HD33M/HD33MK, and HD7M/HD7MK are engineered for secure shut-off, high-pressure containment, and dependable long-term performance.

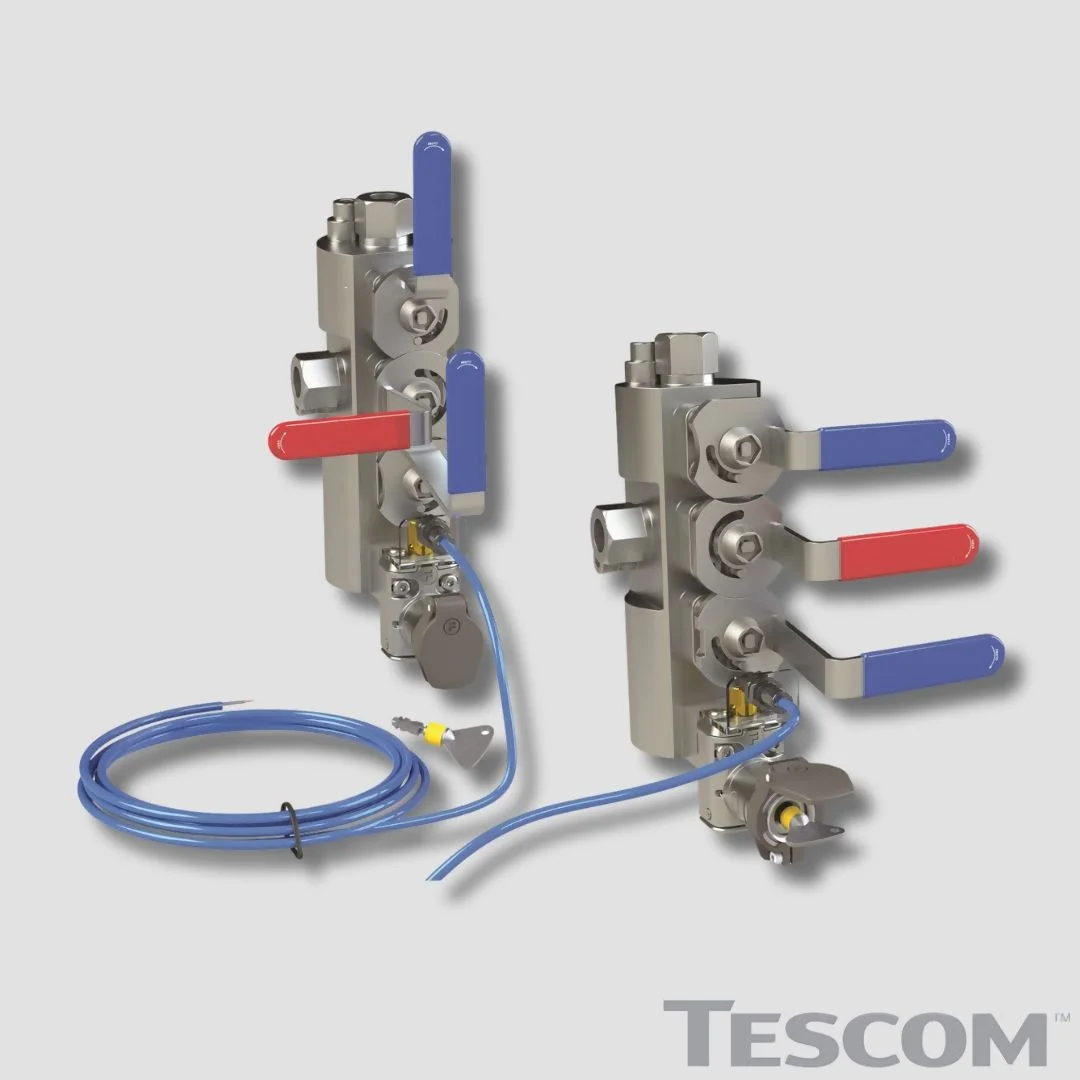

Additional solutions like the FCA flow check adapter and H64T/H64F Keyblok interlock manifold enhance operational safety by preventing incorrect valve sequencing and uncontrolled pressure release.

Designed for demanding, safety-critical environments, these TESCOM Anderson Greenwood primary isolation and instrumentation components help protect personnel, safeguard instruments, and ensure consistent, compliant operation across high-integrity industrial pressure control systems.

Clear Readings. Total Protection

TESCOM gauge valves are engineered to support accurate pressure measurement while protecting sensitive gauges from overpressure, pulsation, and system shock. Designed for isolation, calibration, and controlled venting, they are available in multi-port and block and bleed configurations to suit a wide range of instrumentation layouts. With options for globe pattern or straight-through bore designs and a broad selection of end connections, Tescom gauge valves provide flexible, reliable solutions for efficient and safe pressure monitoring in demanding industrial environments.

Frequently Asked Questions

TESCOM gauge valves are used to isolate, protect, and control pressure gauges in industrial and instrumentation systems.

They allow gauges to be isolated from the process, protecting them from pressure spikes, pulsation, and overpressure conditions.

TESCOM offers multi-port, block and bleed, and gauge block designs to suit isolation, calibration, and venting requirements.

Yes, they allow controlled venting and isolation, making them suitable for gauge testing and calibration procedures.

Block and bleed gauge valves provide both isolation and safe pressure release, while standard gauge valves mainly isolate the gauge.

They are suitable for a wide range of gases and liquids used in industrial pressure measurement applications.

Yes, many TESCOM gauge valves are designed for high-pressure instrumentation environments.

They are typically manufactured from stainless steel and other durable materials for corrosion resistance and long service life.

TESCOM gauge valves are available in globe pattern and straight-through bore designs to suit different flow and pressure conditions.

They offer multiple end connection options, allowing flexible installation in a wide range of instrumentation layouts.

When correctly specified and installed, they typically require minimal maintenance.

TESCOM gauge valves are chosen for their reliable isolation, flexible configurations, and proven performance in demanding industrial pressure measurement systems.
