With a protection rating of IP67, the actuator is fully dust-tight and resistant to temporary water immersion, making it suitable for both indoor and outdoor use. It also demonstrates excellent temperature resistance, operating within -20°C to +60°C for ON/OFF control, -20°C to +55°C for modulating types, and -20°C to +50°C for ICM control models. Engineered for resilience, the actuator withstands seismic vibrations up to XYZ10g between 0.2–34Hz for 30 minutes, ensuring reliability under mechanical stress and vibration.

Key features and benefits of this actuator.

Key Features

Supports 4–20mA or dry contact signals with feedback for valve position, mode, and faults.

Key Features

IP67 protection, Class F insulation, and high vibration resistance ensure reliability in harsh environments.

Key Features

Performs across multiple voltages (24VDC, 85–240VAC, 380–440VAC) and temperatures from -20°C to +60°C.

The actuator

Insulation Level:	Class F
Voltage Options:	24VDC, 85–240VAC (ICM only), 380–440VAC
Moisture Resistance:	Up to 90% RH (non-condensing)
Protection Level:	IP67
Temperature Range:	ON/OFF: -20°C to +60°C / Modulating: -20°C to +55°C / ICM: -20°C to +50°C
Seismic Resistance:	XYZ10g (0.2–34Hz, 30 mins)
ICM Control:	4–20mA or dry contact signals with feedback for valve position, mode, and faults
	Optional Communication Interfaces Available

Document

Datasheets

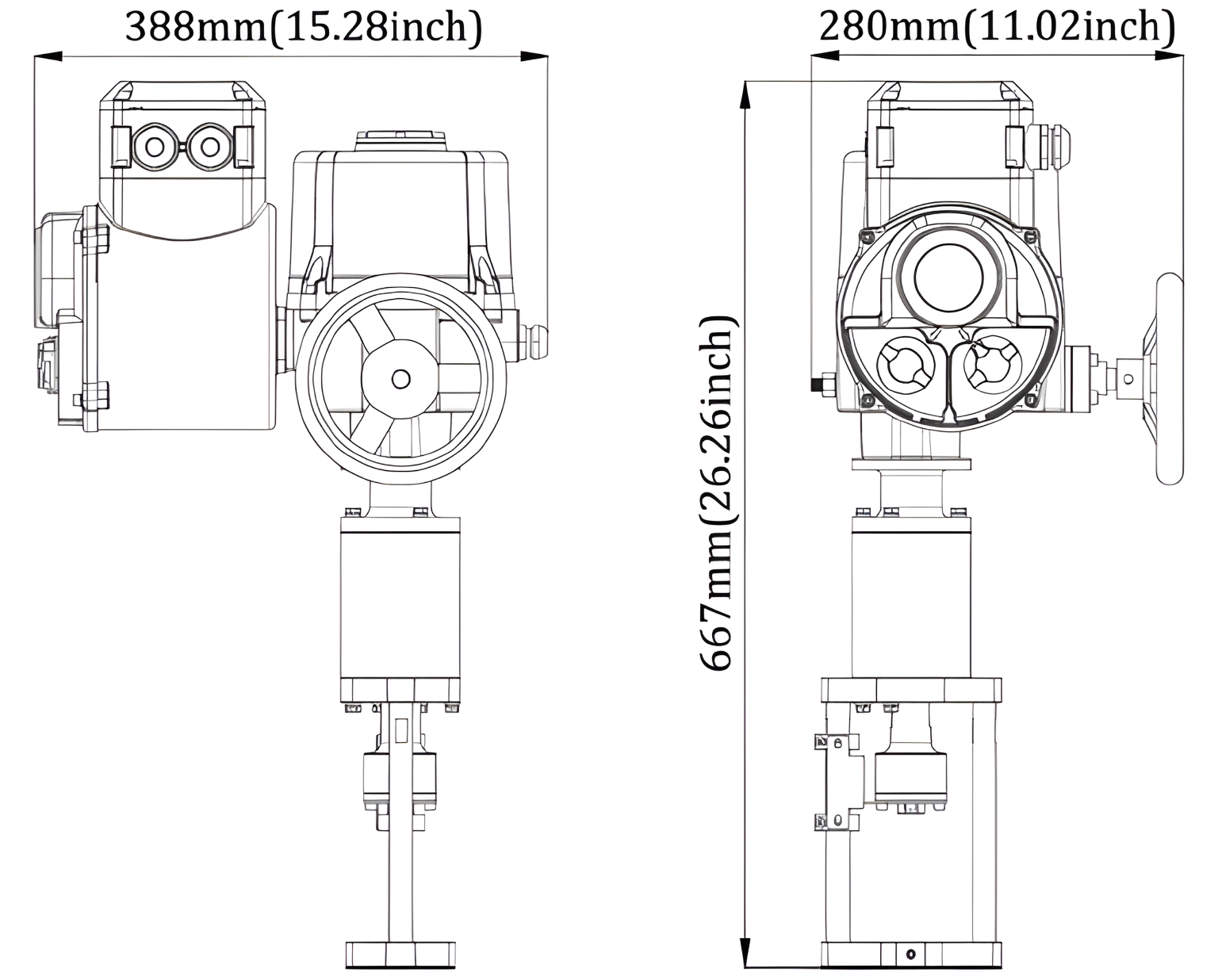

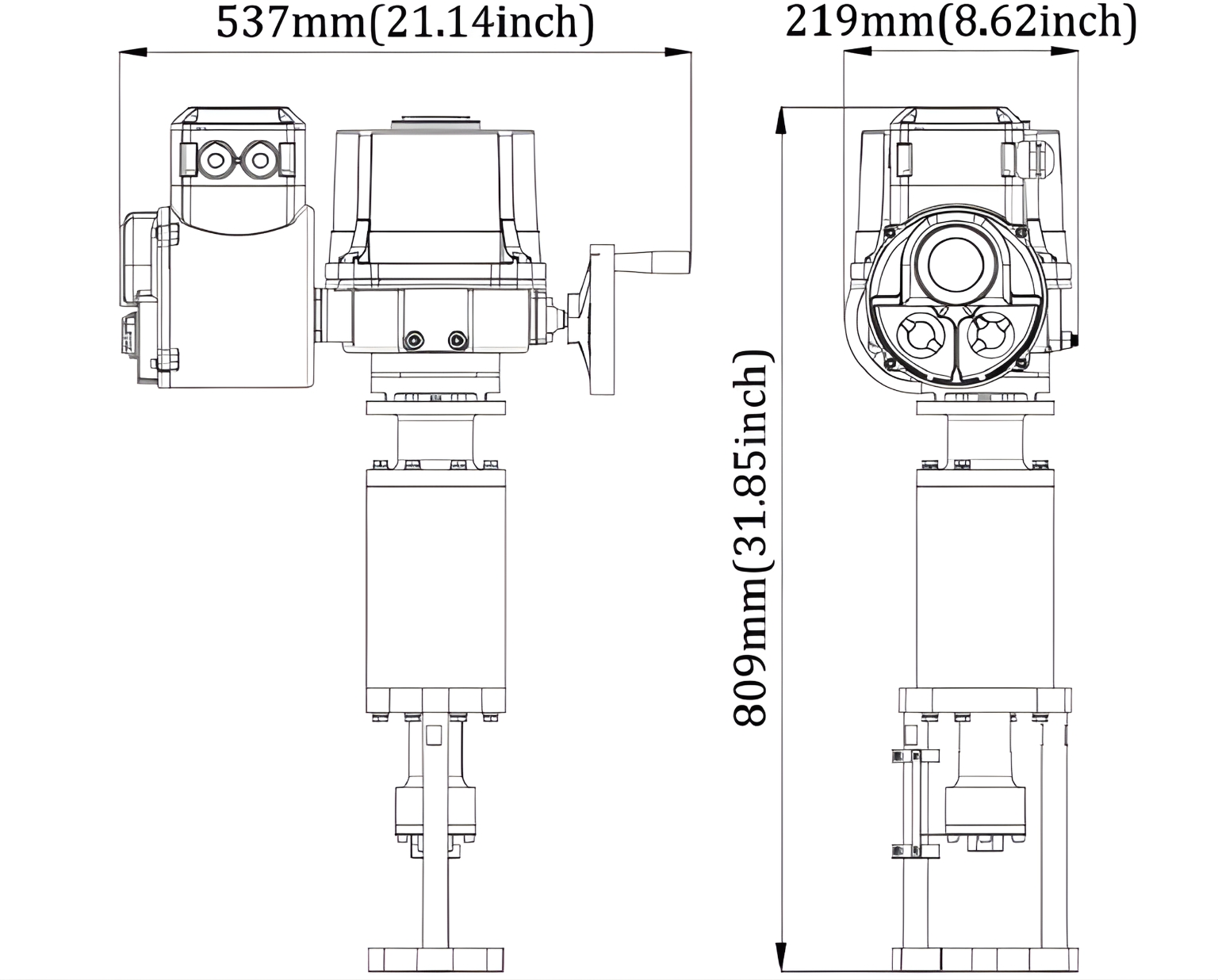

Dimensions

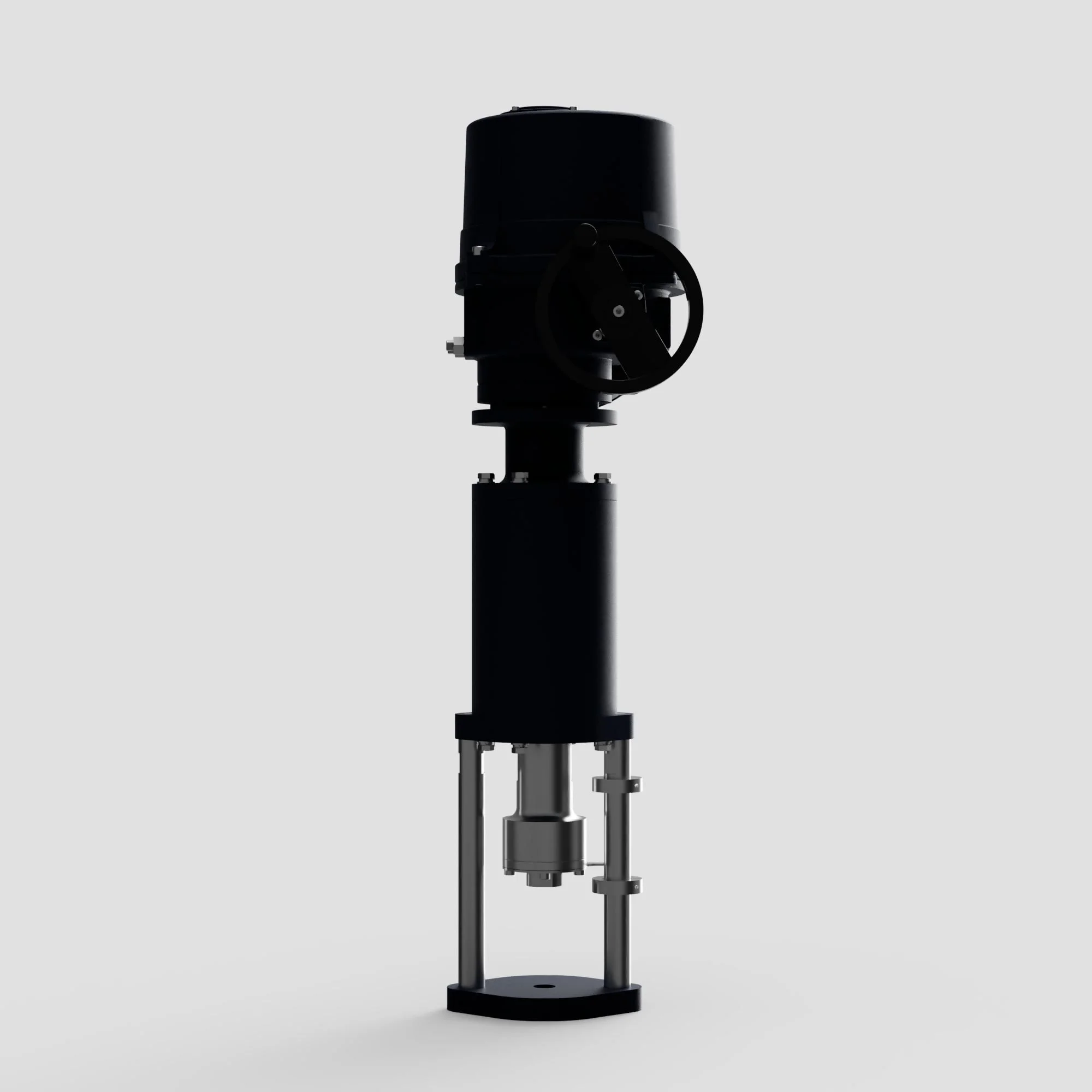

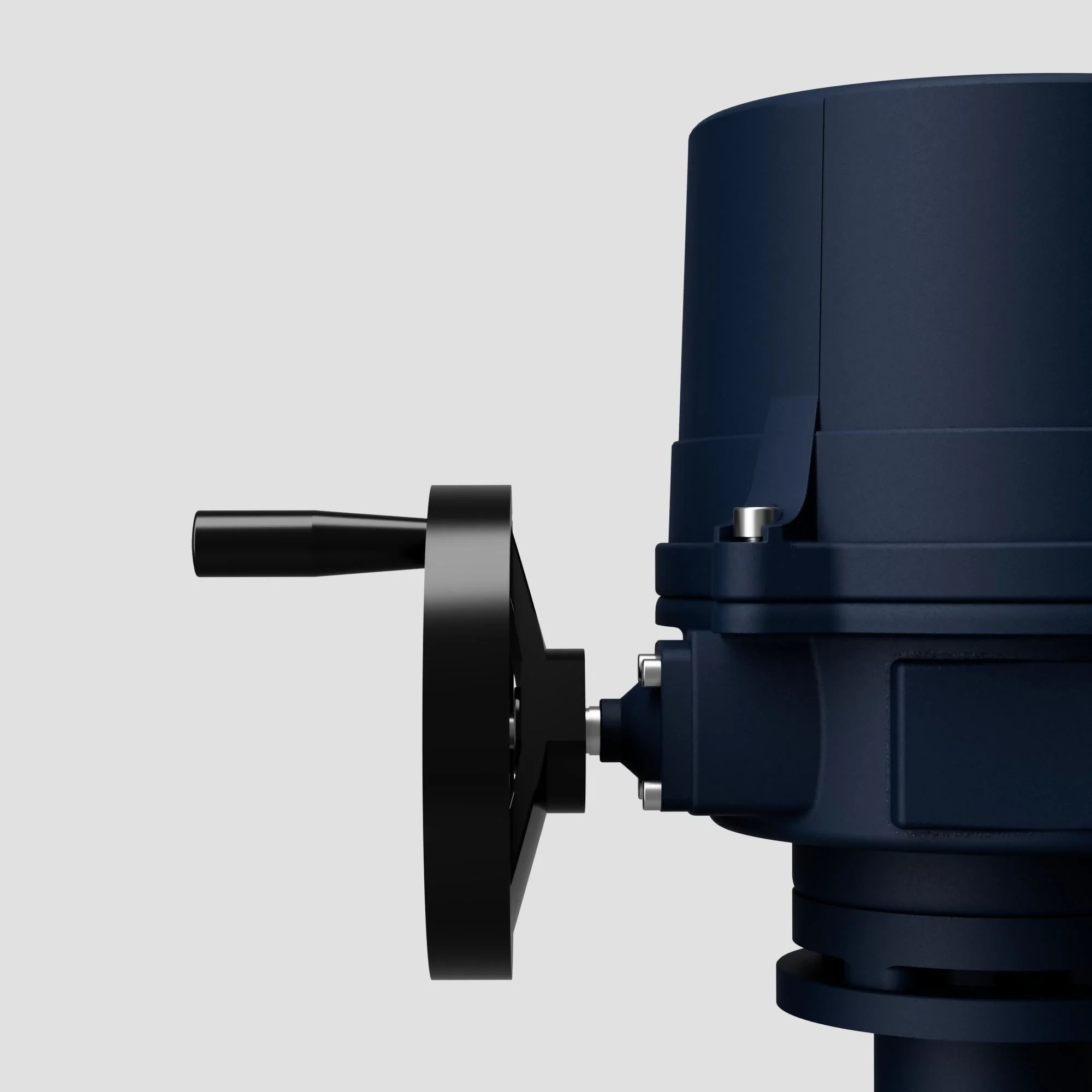

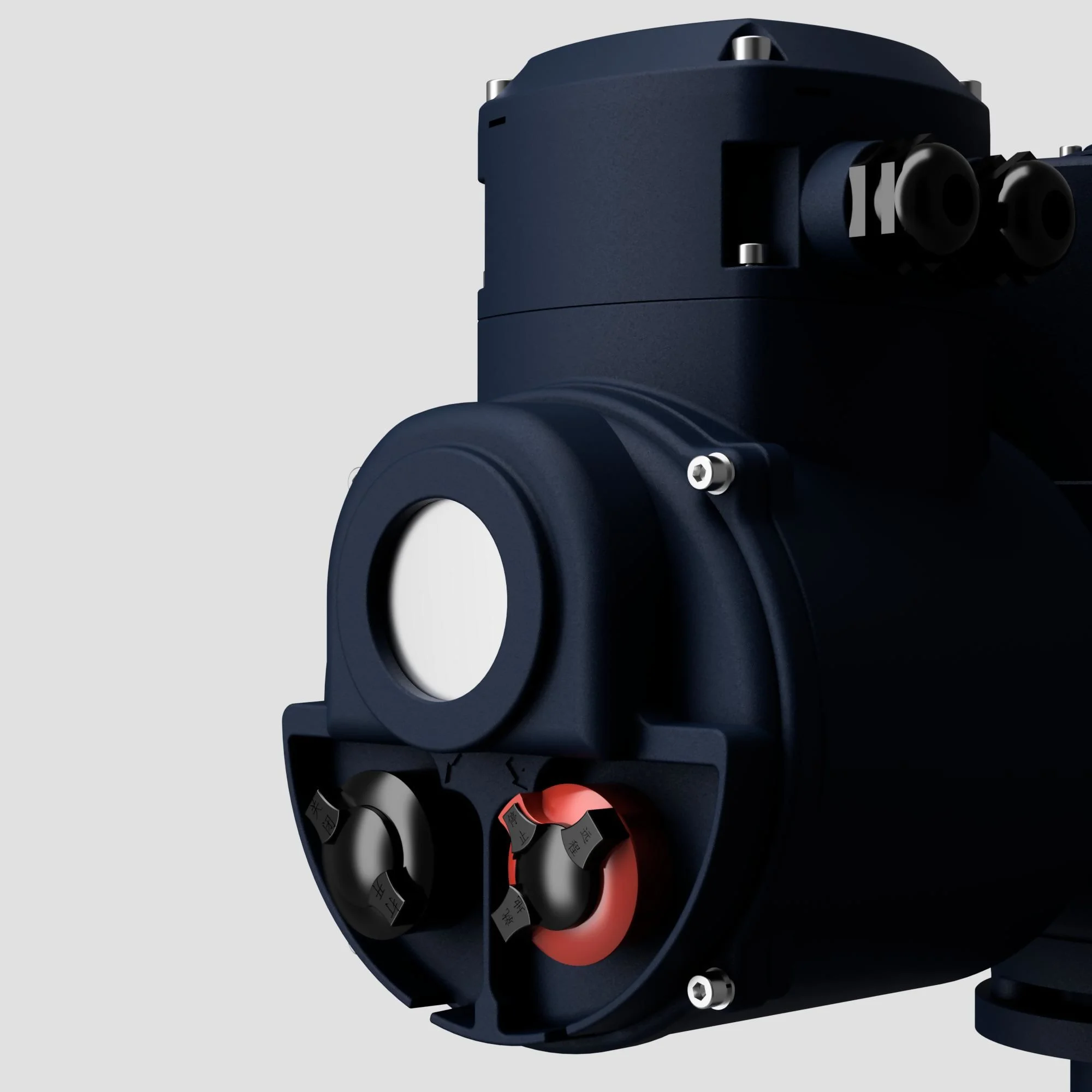

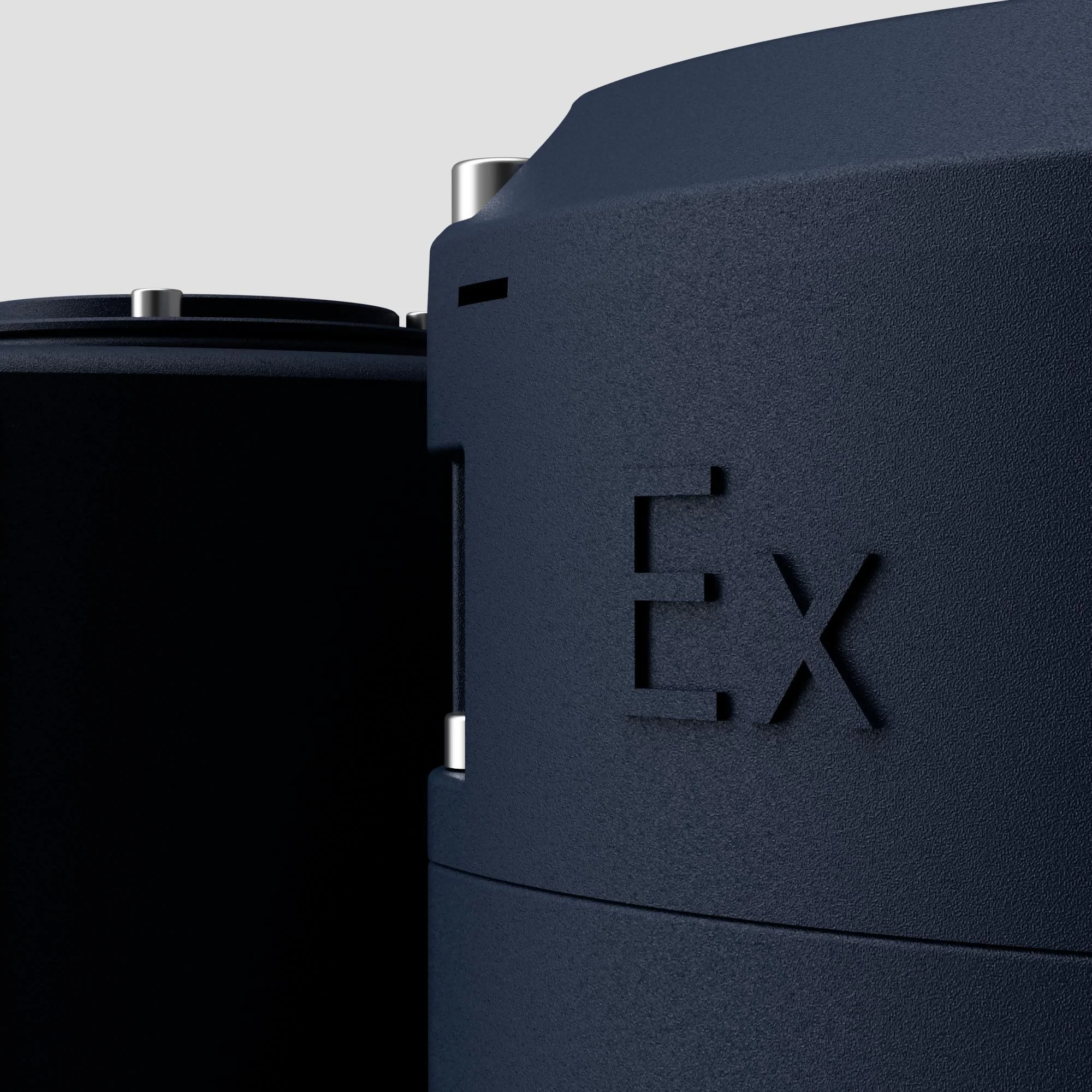

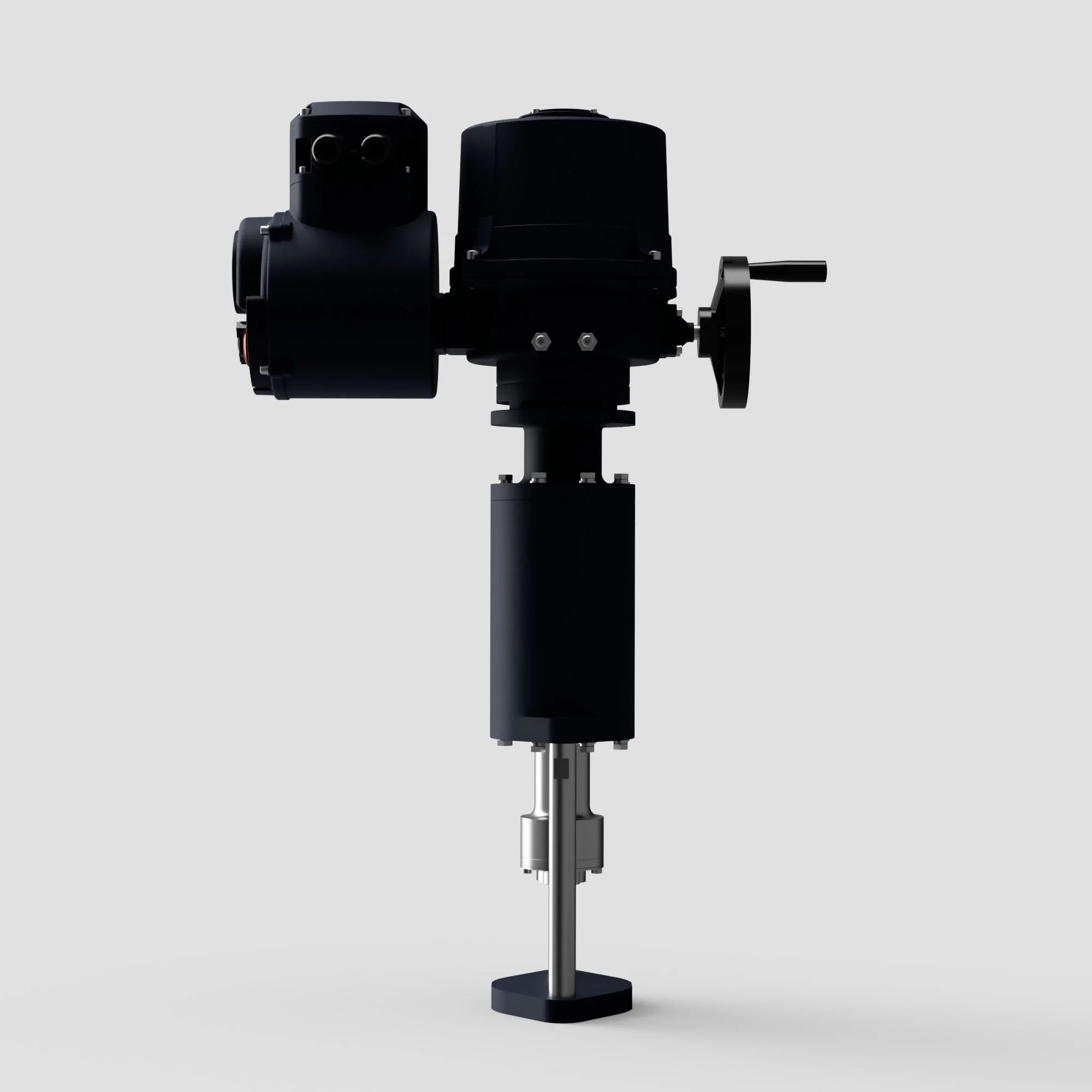

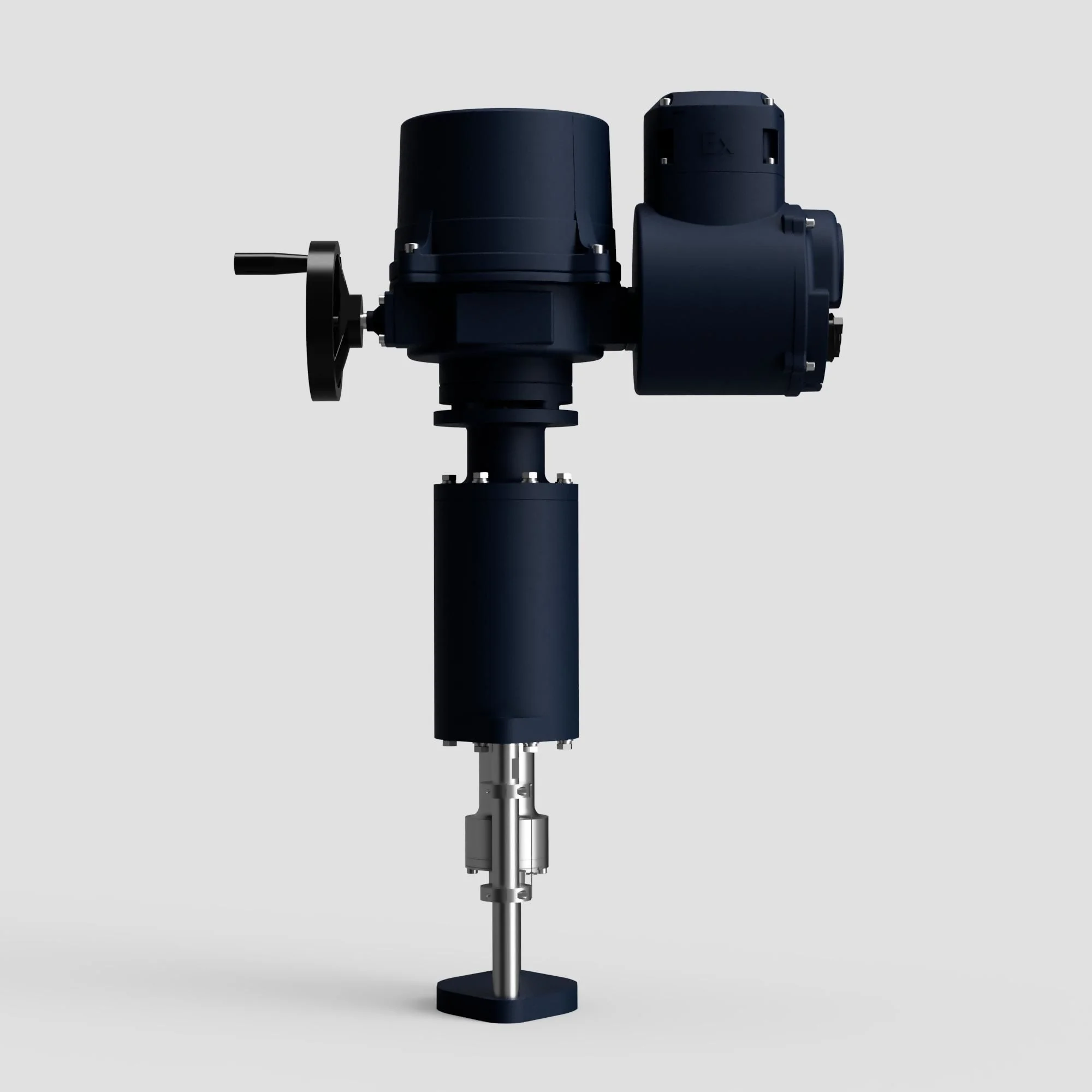

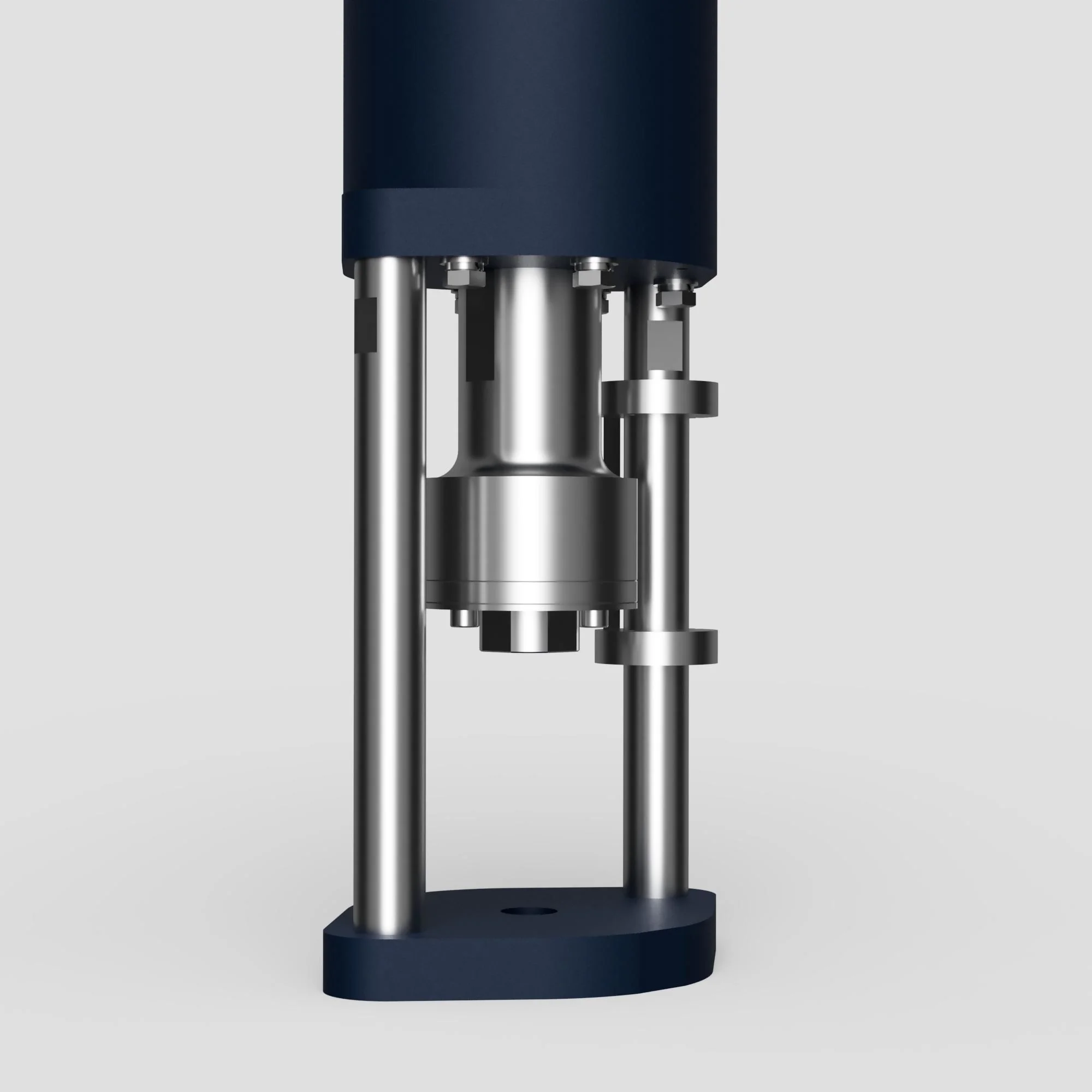

Close up's

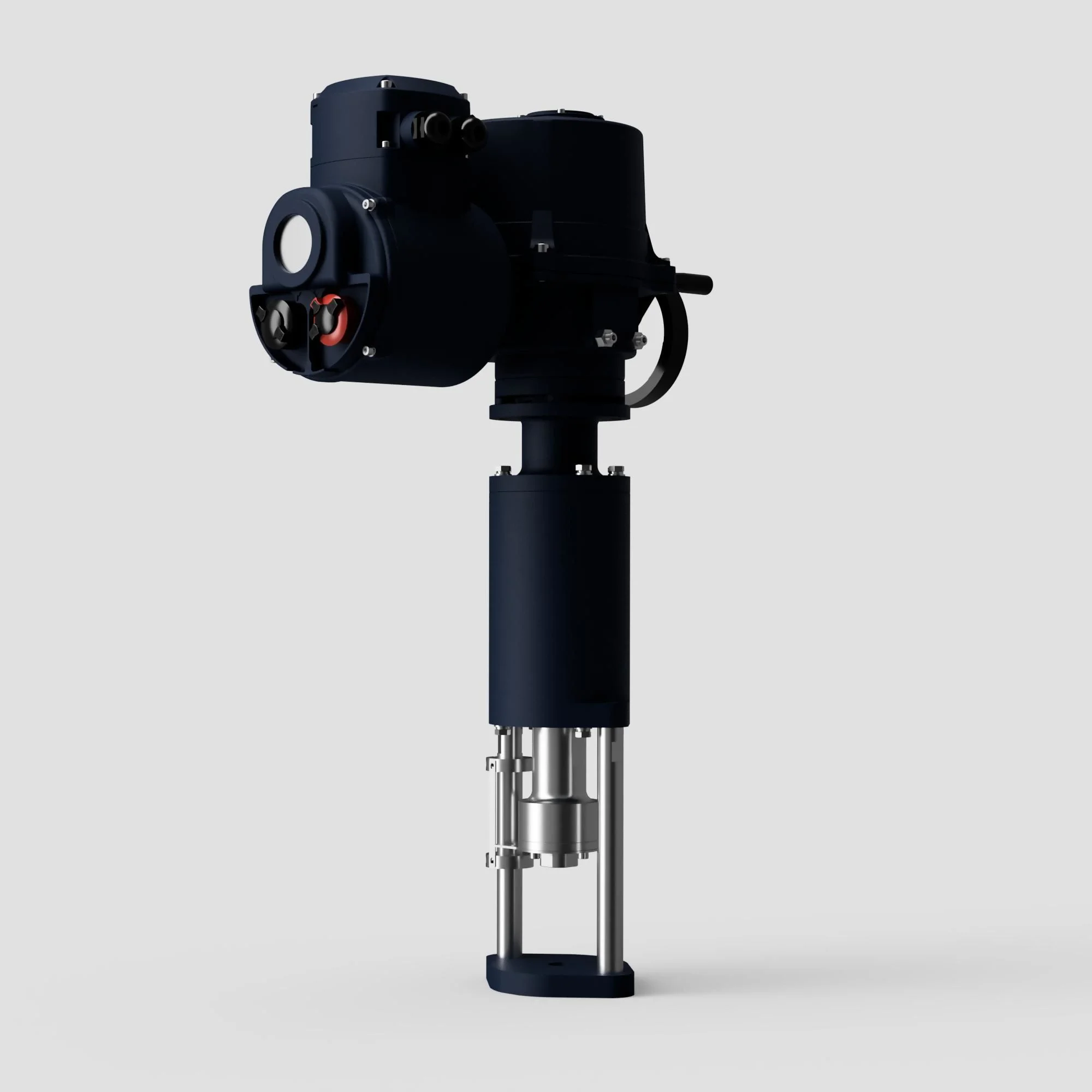

The VTMLT-ICM Series is designed for precise linear motion control in industrial automation, often used to operate control valves, dampers, and other linear mechanisms that require accurate positioning and reliable performance.

It supports multiple voltage configurations, including 24VDC, 85–240VAC (ICM type only), and 380–440VAC, making it suitable for various installation environments.

The actuator features Class F insulation, providing enhanced thermal resistance and ensuring long-term reliability under demanding operating conditions.

The VTMLT-ICM actuator is rated IP67, meaning it is fully protected from dust and can withstand temporary immersion in water.

Yes, it is designed to withstand up to 90% relative humidity (non-condensing), making it ideal for use in moisture-prone or outdoor installations.

ON/OFF type: -20°C to +60°C
Modulating type: -20°C to +55°C
ICM control type: -20°C to +50°C

Yes, the ICM control type includes passive contact feedback for valve position, product mode, and fault status, ensuring clear communication with the control system.

The ICM model can be controlled using 4–20mA or dry contact signals, allowing for seamless integration into process control systems.

Yes, it offers excellent seismic resistance, tested to withstand XYZ10g between 0.2–34Hz for 30 minutes, ensuring stable operation even in environments with mechanical vibration.

Absolutely. With its IP67 protection, robust enclosure, and wide temperature tolerance, the VTMLT-ICM Series is suitable for both indoor and outdoor installations.

Yes, the actuator supports optional communication interfaces, allowing compatibility with modern automation and monitoring systems.

Its combination of high protection level, flexible voltage range, precise control, and durable construction makes it an ideal choice for industrial applications requiring consistent and accurate linear actuation.

Please feel free to request information and advice using the form below or call us on 0151 547 1221

VTMLT-ICM Series Linear Electric Actuator
