Stainless Steel Flanged PN40 Rotork Actuator Ball Valves

The AV-L6N00ROM DIN PN40 actuated ball valves provide a high pressure full flow operation with a bore of up to 6 inches. The actuated ball valves connections offer installation between two alternate flanges within a pipleine. Valve approvals include DNV, SIL 2, Lloyds Register & Nace MR-0175. Additional ball valve options include an upstream and cavity relief hold drilled into the ball and high temperature spindle extension for insulation and steam actuation. Rotork Electric Actuators are a trusted brand for all your automation needs. With manufacturing sites, service centres and sales offices throughout the world to provide unrivalled customer services with fast delivery as well as ongoing accessible support. The AV-L6N00 Ball Valve is an excellent choice for high volume pneumatic systems because it has low torque requirements, which reduce the costs of Actuated Valves with smaller actuators able to automate valves usually demanding large units.

Key Features

Key features and benefits of AV-L6N00ROM Actuated Ball Valves.
1

Key Features

High alloy steel gear trains provide self-locking function to avoid valve back drive. This avoids any potential unwanted movement when the actuator does not have power which could cause valves to unseat and allow process media to pass through.
2

Key Features

The AV-L6N00 is an affordable line of high-quality stainless steel ball valves that won't break your budget. These durable products will give you years of trouble-free service at a fraction of the price that other companies charge for similar products.
3

Key Features

The Rotork ROM electric actuator is compact, lightweight and cost effective for many industrial automation needs. It has been designed to be easy to install and use, saving you time and money on your next project.

Flanged PN40 Technical Stuff

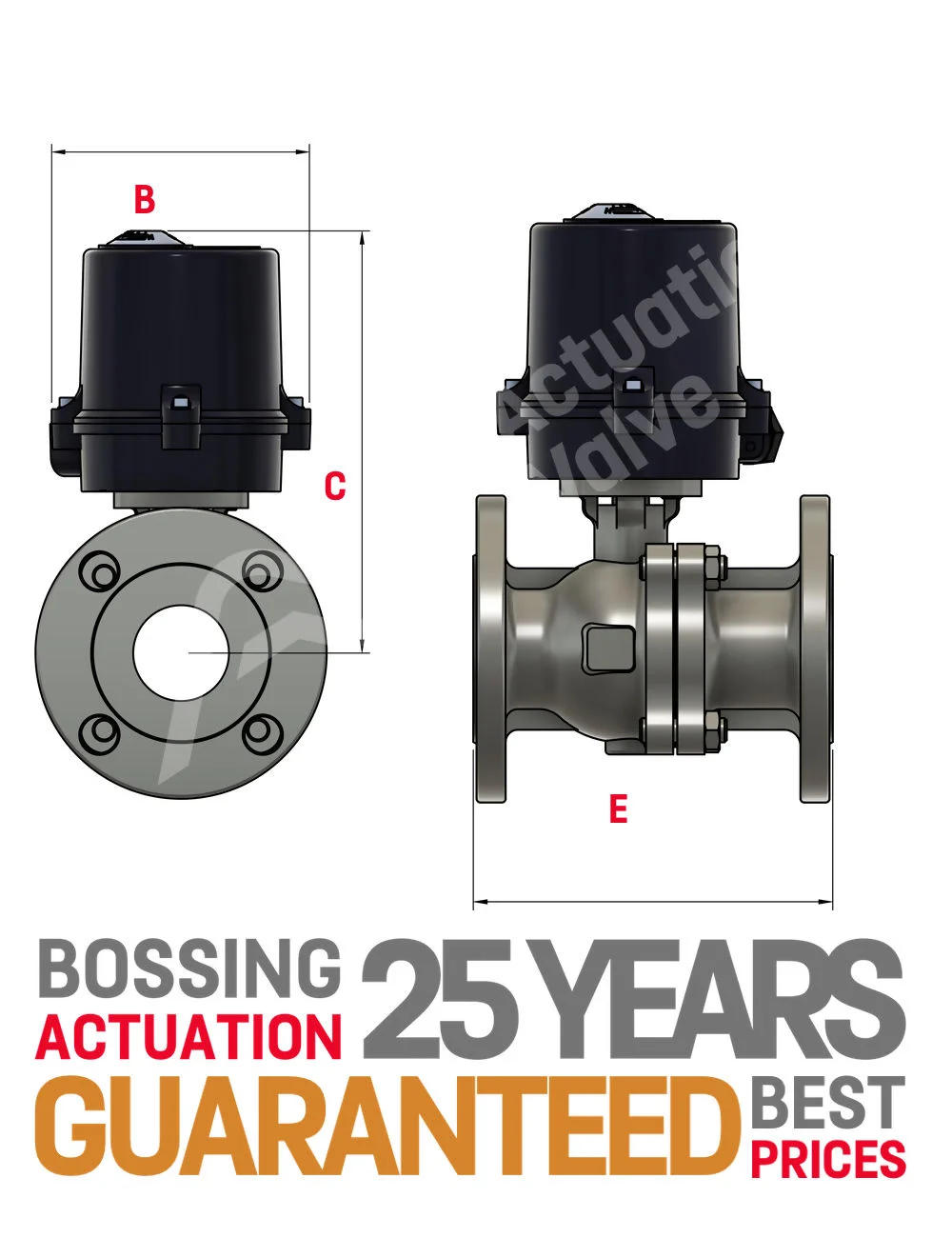

B C E Model
1/2" 114.00 184.00 115.00 ROM-1
3/4" 114.00 189.00 120.00 ROM-1
1" 114.00 195.00 125.00 ROM-1
1 1/4" 114.00 272.00 130.00 ROM-1
1 1/2" 114.00 212.00 140.00 ROM-1
2" 114.00 254.00 150.00 ROM-A
2 1/2" 196.00 414.00 170.00 ROM-2
3" 196.00 429.00 180.00 ROM-3
4" 196.00 517.00 190.00 ROM-3
5" 196.00 560.00 325.00 ROM-3
6" 232.00 596.00 350.00 ROM-5
8" 232.00 645.00 400.00 ROM-5
10" TBA TBA TBA TBA

Flanged PN40 3D Stuff

Actuated Valve Testing & Calibration

All actuated valve assemblies are fully tested and calibrated in house prior to packing and shipping from our expert team of technical engineers. This means that when they arrive at site, you're immediately ready to install and get your production back up and running.

Need More Dimensions?

No time for fancy software or your tekkers are just pretty substandard? We offer a full technical drawing service for our actuated valves. The Artists are ready to draw. Tell us what you need.

Valve Standards & Stuff

Body Material: ASTM A351 CF8M 316 Stainless Steel & Trim
Seats Material: TFM 1600 PTFE Ball Seats
Body Seal Material: Grafoil/316 Stainless Steel
Stem Packing Material: Grafoil
Design Standard: DIN3357 1,2,EN 12516-1
Wall Thickness: ASME B16.34, EN12516-1
Inspection & Testing: DIN3230/3, EN 12266
Face 2 Face: DIN 3202 F4 (1/2" - 4") & DIN 3202 F5 (5" - 6")

Frequent Interrogation

Yes, this Valve is suitable for water within the pressure and temperature limitations.

Not in its current format however we can offer both options. Get in touch through sales@actuation.co.uk or 0151 547 1221 and we will run through some safety options with you for quoting.

It certainly does. All of our actuated valves come complete with a full set of operations and maintenance manuals from both the valve and actuator manufacturers.

Yes! Position feedback is included as standard with switches for open and closed positions.

Maybe. Give us a call to find out.
No.
Most definitely. We will require some more information. Drop us an email or get in touch on the blower.
Yes we can. Plane label or with a big bow. Send us a copy of your delivery note and we will fix it to the box. Jop done.
We will need to talk to Big Tony. If he says you're good for the debt then everything is in order. You can apply for this on the product page or ask for Big Tony when you get in touch.
Request more information or Advice

Please feel free to request information and advice using the form below or call us on 0151 541 8674
